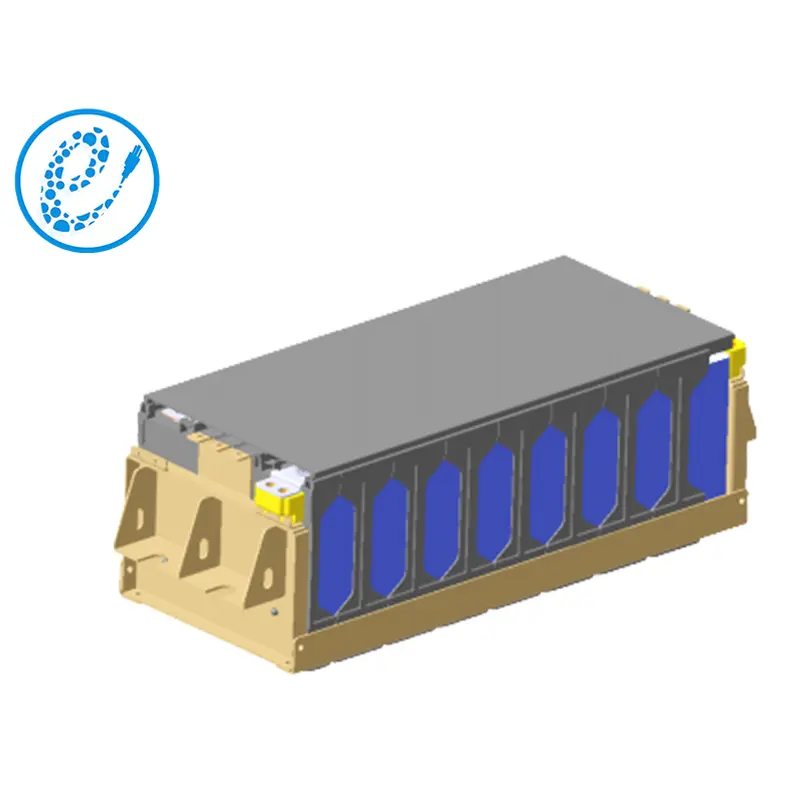

MS0302-25.6V100A-(100AH1P8S)-C is designed with a standard voltage of 25.6V and a standard capacity of 100Ah. It is a reliable and durable battery module, which is a good choice to be able to meet the power storage needs.
| No. | Items | EP-LFP100Ah STANDARD MODULE | Note | |
| MS0302-25.6V100A | ||||
| 100Ah1P8S | ||||
| 1 | Nominal voltage(V) | 25.6 | ||
| 2 | Operating voltage(V) | min | 20 | Cell 2.5V~3.65V |
| 3 | max | 29.2 | ||
| 4 | Nominal capacity ( Ah) | 100 | 25±2℃ | |
| 5 | Nominal energy (KWh) | 2.56 | 25±2℃ | |
| 6 | Maximum continuous charge current (A) | 50 | 25±2℃ | |
| 7 | Maximum continuous discharge current (A) | 100 | 25±2℃ | |
| 8 | Maximum short pulse discharge current (≤10s)(A) | 200 | 25±2℃ | |
| 9 | SOC operating range (%) | 20~100 | ||
| 10 | Insulation requirements (MΩ) | ≥20 | 500V DC，High voltage output to battery module shell, at the normal temperature and humidity | |
| 11 | Module cooling method | Natural cooling | ||
| 12 | Module heating film | No | ||
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Module self-discharge | ≤3% | 25±2℃,50%SOC | |
| 15 | Dimension L (mm) | 477.3 | ||
| Dimension W (mm) | 181.4 | |||
| Dimension H (mm) | 152.5 | |||
