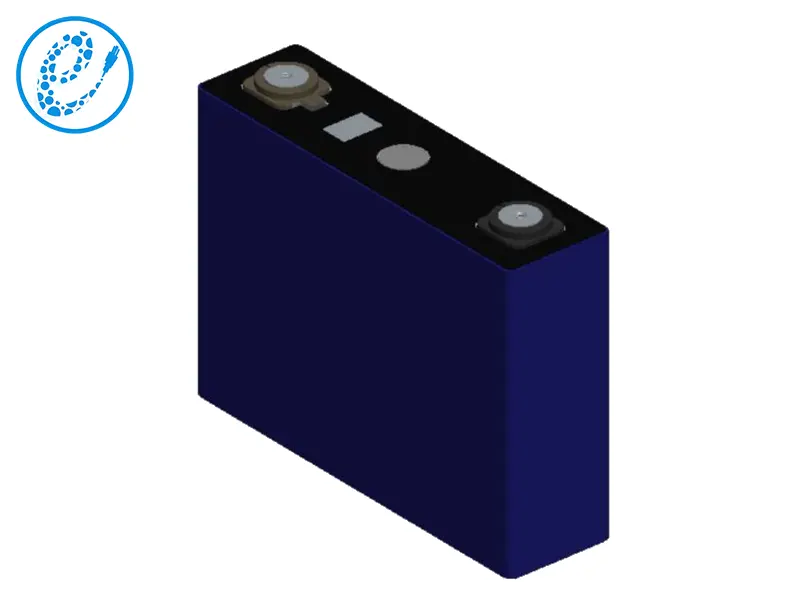

The LFP85Ah LiFePO4 battery with a 3C charging and discharging rate offers a balance of high capacity and rapid energy transfer capabilities, making it versatile for various applications ranging from electric vehicles to renewable energy storage systems.
| Item | Specification | |
| Dimension | 47.8*173.9*132 mm | |
| Min. capacity | 85Ah @1C, 25℃ ± 2℃ | |
| Min. energy | 272Wh | |
| Recommended SOC usage window | 10 ~ 90% | |
| Terminal | Welding Terminal | |
| Impedance（1kHz） | ≤0.4mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.5V | |
| Current | Maximum continuous charge current | 3C |
| Maximum continuous discharge current | 3C | |
| Energy density | Gravimetric | 125Wh/kg |
| Volumetric | 247Wh/L | |
| Temp. Condition | Operation (Charge) | 0~ 55℃ |
| Operation (Discharge) | -20 ~ 55℃ | |
| Storage | -30 ~ 55℃, 20-50%SOC，≤90%RH | |
| Cycle Life | 80%SOH, 25℃ | 5000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
