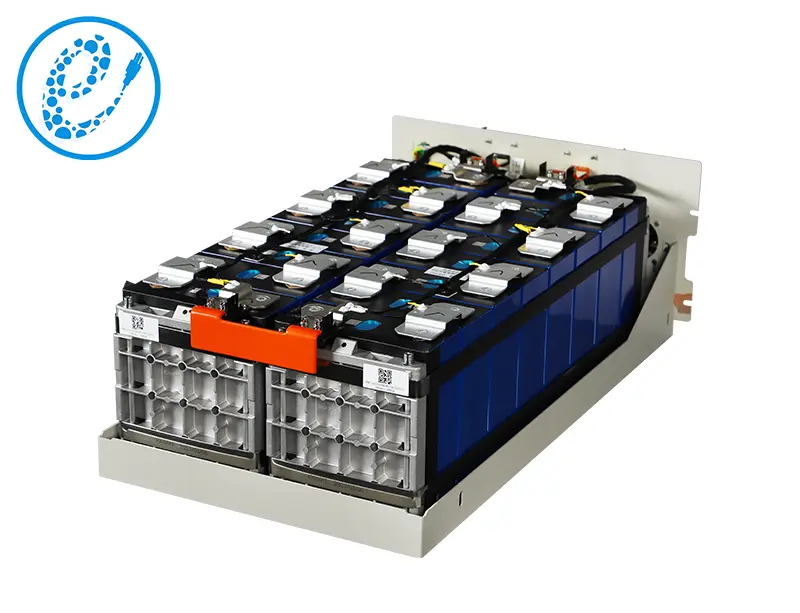

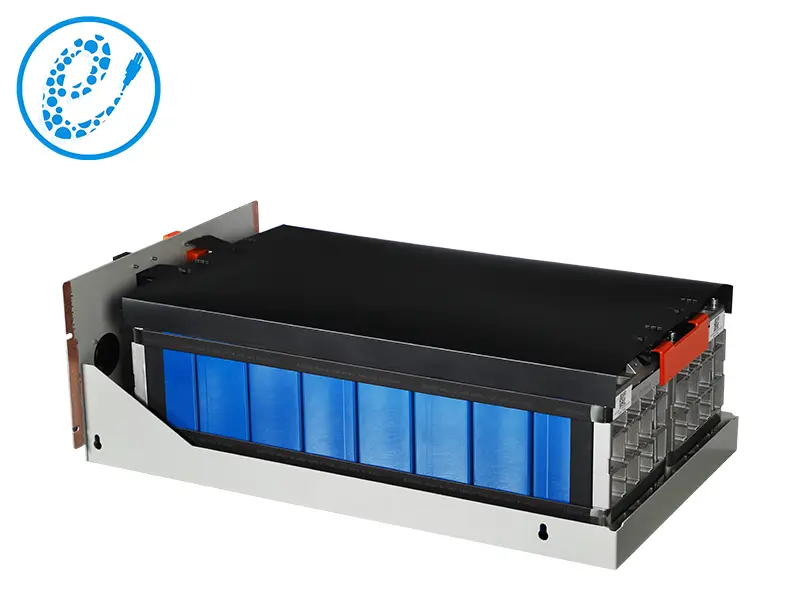

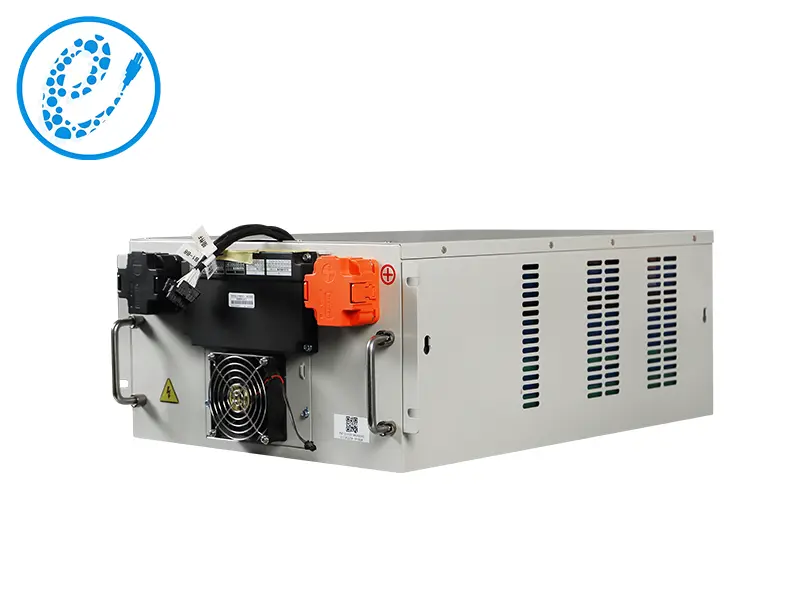

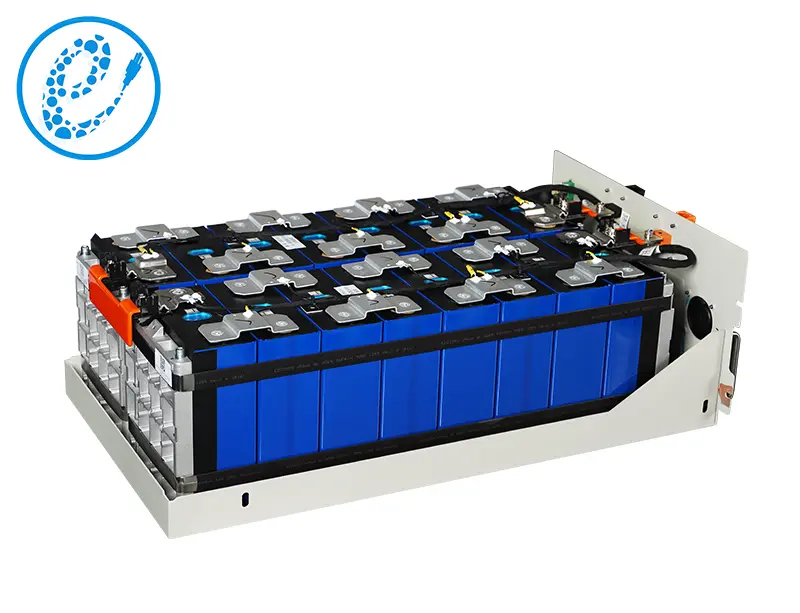

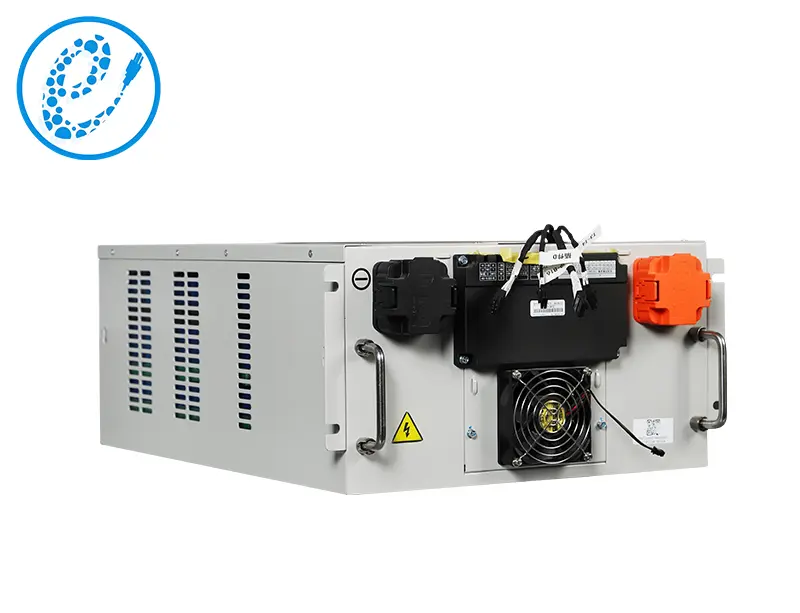

PS35XXXX-51.2V280A(280Ah1P16S)lithium battery pack features a 1P16S configuration with a rated voltage of 51.2V and an energy rating of 14.336kwh, providing a stable and powerful energy supply.
Whether you need a reliable source of renewable energy storage or an efficient backup energy system, this battery is up to the task, ensuring your project runs smoothly. Delivering optimal performance.
| No. | Items | EP-LFP220Ah STADARD PACK | EP-LFP280Ah STADARD PACK | ||
| PS35XXXX-51.2V220A （220A1P16S） | PS35XXXX-51.2V280A （280A1P16S） | ||||
| 1 | Nominal voltage(V) | 51.2V | |||
| 2 | Operating voltage(V) | min | 43.2 | ||
| 3 | max | 58.4 | |||
| 4 | Cell Configuration | 1P16S | |||
| 5 | Nominal energy（KWh ） | 11.264 | 14.336 | 25±2℃ | |
| 6 | Weight（Kg） | 88kg | 100kg | ||
| 7 | Nominal capacity(Ah) | 220 | 280 | 25±2℃ | |
| 8 | Maximum continuous charge current（A） | 110 | 140 | ||
| 9 | Maximum continuous discharge current（A） | 110 | 140 | ||
| 10 | Maximum pulse discharge current（≤30s）（A） | 220 | 280 | ||
| 11 | Humidity range | ≤65% | |||
| 12 | Storage temperature(℃) | 0～45℃ | |||
| 13 | SOC operating range（%） | 20~100 | |||
| 14 | Insulation requirements(MΩ) | ≥1000 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | ||
| 15 | cooling method | Air cooling | |||
| 16 | Shipping capacity | ≈30% | SOC is consistency in the same batch | ||
| 17 | Dimension L (mm) | 620 | 743 | ||
| Dimension B (mm) | 492 | 435 | |||
| Dimension H (mm) | 230 | 390 | |||
Core Innovation
Energy efficiency>94%@0.5P room temperature
Flexible module process and easy maintenance
Compact design and light weight
Low internal resistance, stable discharge
