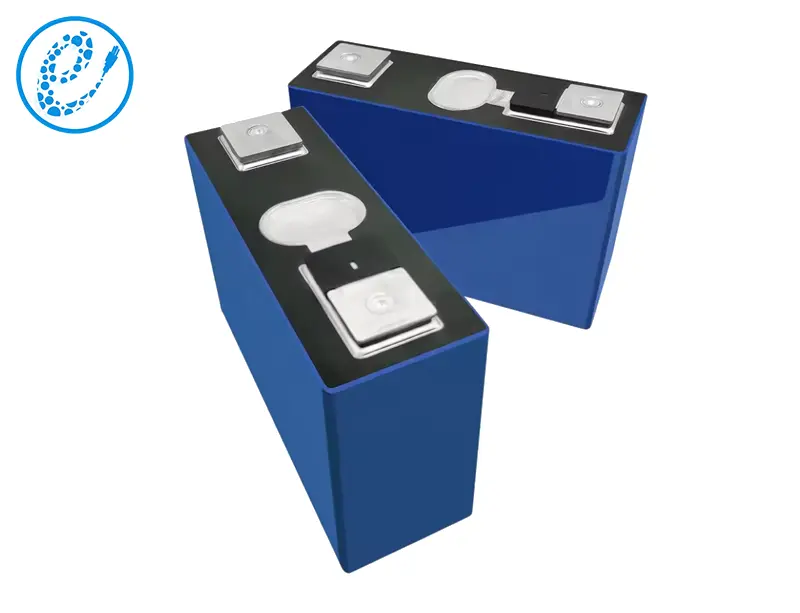

The NCM106Ah NCM battery combines robust power with versatility. With a capacity of 106 ampere-hours (Ah), it offers dependable energy storage for various applications, from residential energy storage to electric mobility solutions.
| Item | Specification | |
| Dimension | 52*148*95 mm | |
| Min. capacity | 106Ah @1C, 25℃ ± 2℃ | |
| Min. energy | 397.5Wh | |
| Recommended SOC usage window | 10 ~ 90% | |
| Terminal | Welding Terminal | |
| Impedance（1kHz） | ≤0.4mΩ | |
| Voltage | Max. | 4.5V |
| Nominal | 3.75V | |
| Min. | 3.2V | |
| Current | Maximum continuous charge power | 1C |
| Maximum continuous discharge power | 1C | |
| Energy density | Gravimetric | 233Wh/kg |
| Volumetric | 543Wh/L | |
| Temp. Condition | Operation (Charge) | 0~ 55℃ |
| Operation (Discharge) | -20 ~ 55℃ | |
| Storage | -30 ~ 55℃, 20-50%SOC，≤90%RH | |
| Cycle Life | 80%SOH, 25℃ | 2000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
