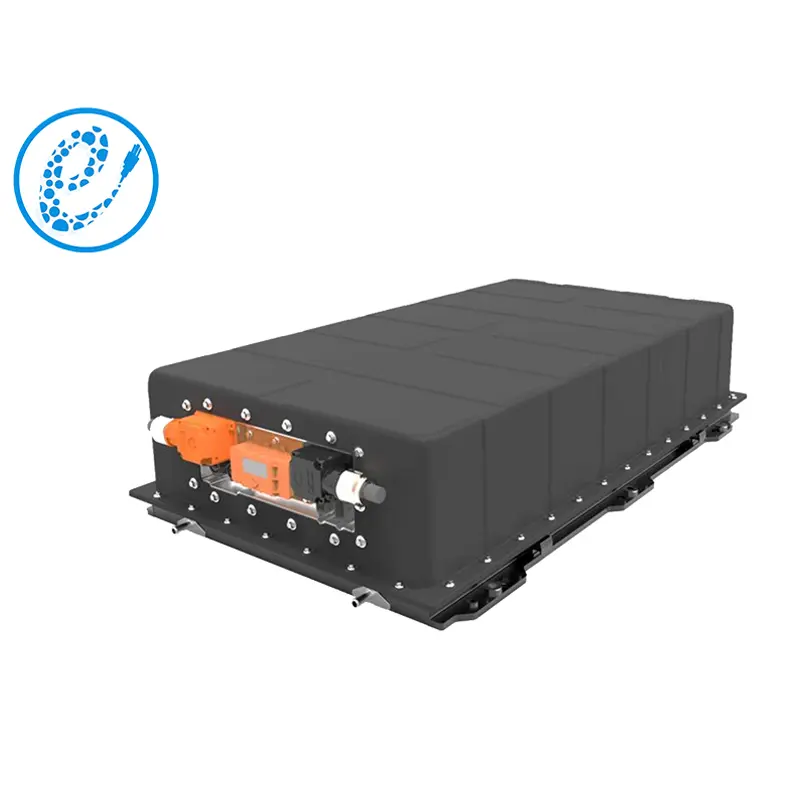

PS131502-115.2V280A (280AH1P36S) lithium polymer battery cell is in 1P36S configuration, consisting of 1 parallel battery pack (1P) and 36 series battery packs (36S). This lithium battery pack's 32.256kwh energy rating provides you with a stable and powerful energy supply. From electric cars and forklift trucks to aftermarket energy sources, this battery is up to the task.
| No. | Items | EP-LFP 280Ah STADARD PACK | Note | |
| PS131502-115.2V280A | ||||
| 280AH1P36S | ||||
| 1 | Nominal voltage(V) | 115.92 | ||
| 2 | Operating voltage(V) | min | 93.6 | T＞0℃ |
| 3 | max | 126 | ||
| 4 | Cell Configuration | 1P36S | ||
| 5 | Nominal energy（KWh ） | 32.457 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 280 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 280 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 280 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Liquid cooling | ||
| 13 | Weight（kg） | 222 | ||
| 14 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 15 | Dimension L (mm) | 1060 | ||
| Dimension B (mm) | 630 | |||
| Dimension H (mm) | 240 | |||
