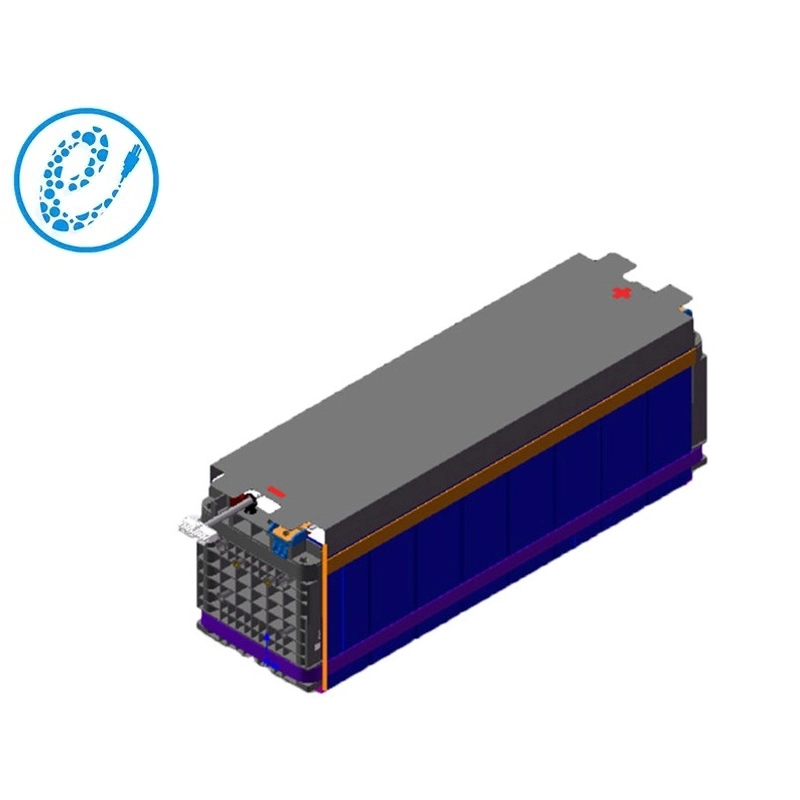

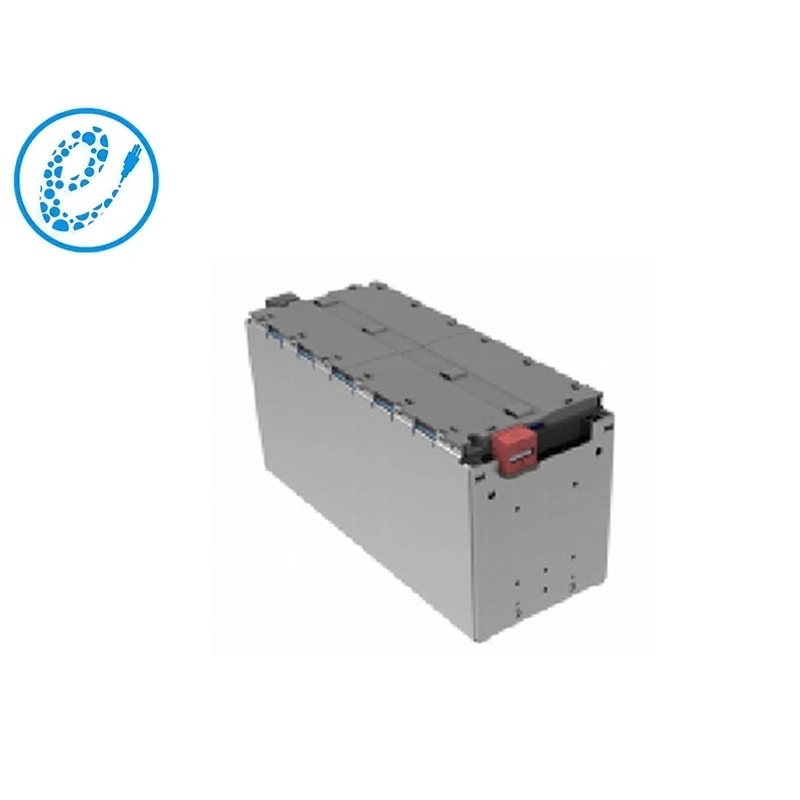

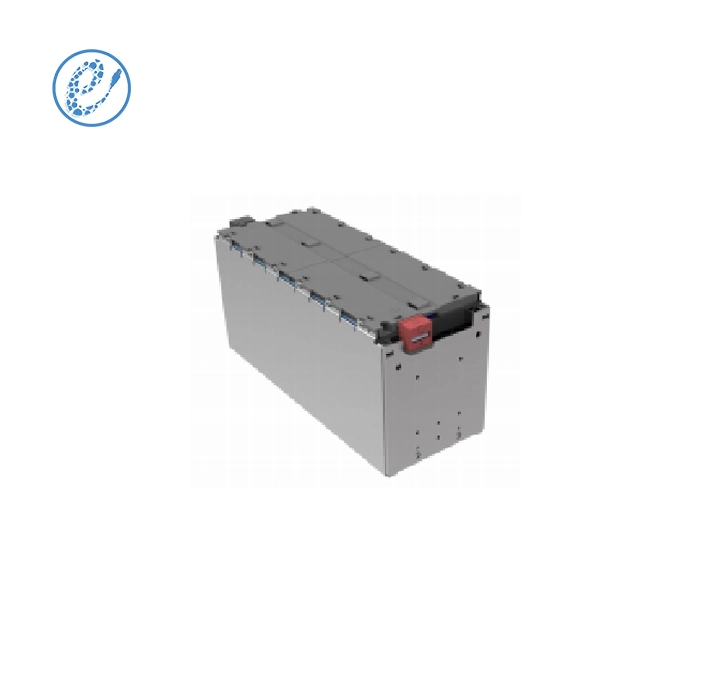

The MS0202-25.76V206A(206AH1P8S) is a lithium-ion rechargeable module with a rated voltage of 25.76V and a rated capacity of 206Ah. It provides a robust, continuous power supply for a wide range of applications.
| No. | Items | EP-LFP206Ah STANDARD MODULE | Note | ||
| MS0202-25.76V206A | MS0202-38.64V206A | ||||
| 206AH1P8S | 206AH1P12S | ||||
| 1 | Nominal voltage(V) | 25.76 | 38.64 | ||
| 2 | Operating voltage(V) | min | 20 | 30 | T＞0℃ |
| 3 | max | 29.2 | 43.8 | ||
| 4 | Nominal capacity(Ah) | 206 | 1/3C，100%DOD | ||
| 5 | Nominal energy（KWh ） | 5.306 | 7.959 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P8S | 1P12S | ||
| 7 | Maximum continuous charge current（A） | 206 | |||
| 8 | Maximum continuous discharge current（A） | 206 | |||
| 9 | Maximum pulse discharge current（≤180s）（A） | 412 | |||
| 10 | SOC operating range（%） | 10~90 | |||
| 11 | Insulation requirements(MΩ) | ≥20 | |||
| 12 | Module cooling method | Natural cooling | |||
| 13 | Module heating film | No | Or heating film | ||
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | ||
| 15 | Dimension L （mm） | 467 | 683 | ||
| Dimension B （mm） | 179 | 179 | |||
| Dimension H （mm） | 220 | 220 | |||
