High-performance 165Ah Lithium Iron Phosphate (LFP) cell with excellent energy density and long lifespan (≥4,000 cycles). Safe, stable, and operates from -20°C to 55°C, perfect for ESS, EVs, and renewable applications.
.png "lfp165_(1).png")
| Item | Specification | |
| Dimension (Welding terminal) | 47.8±0.5mm *173.9±0.5mm *170.4±0.6mm | |
| Weight | 3.04±0.15 kg | |
| Min. capacity | 165Ah (1C) @ 25℃ | |
| Min. energy | 528Wh | |
| SOC window | 10 ~ 90% | |
| Terminal | Welding terminal | |
| Impedance（1kHz） | ≦0.4mΩ | |
| Voltage | Max. | 3.65 V |
| Nominal | 3.2 V | |
| Min. | 2.5V (T＞0℃） 2.0V (T≤0℃) | |
| Current | Maximum continuous charge | 165A |
| Maximum continuous discharge | 165A | |
| Energy density | Gravimetric | 173Wh/kg |
| Volumetric | 372Wh/L | |
| Temp. Condition | Operation (Charge) | 0 ~ 55℃ |
| Operation (Discharge) | -20 ~ 55℃ | |
| Cycle Life | 1C/1C, 80% DOD 25℃ | 4000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
.png "lfp165_(3).png")
.png "lfp165_(4).png")
.png "lfp165_(5).png")

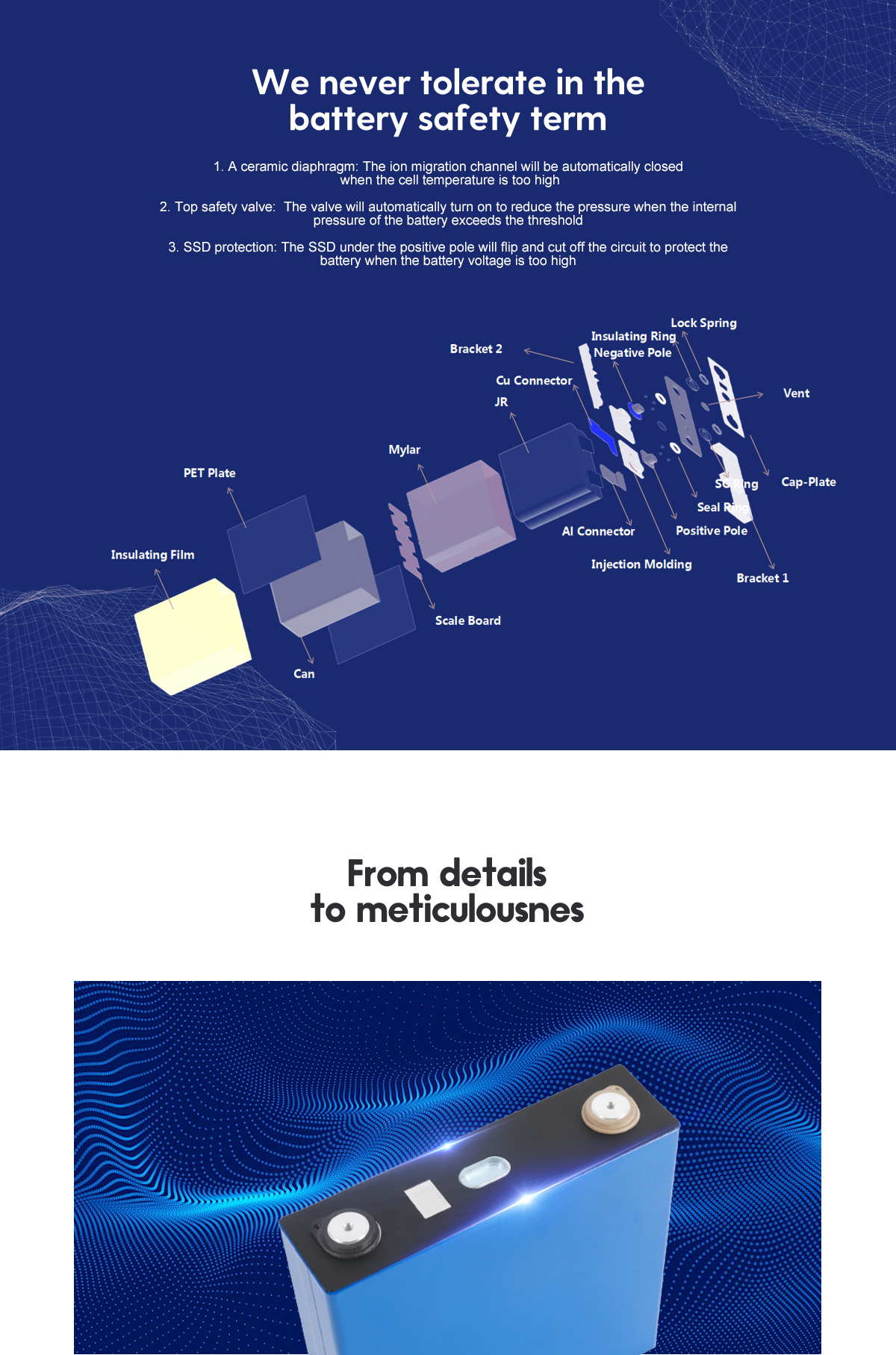

.png "lfp165_(6).png")
.png "lfp165_(7).png")
.png "lfp165_(8).png")
.png "lfp165_(9).png")
