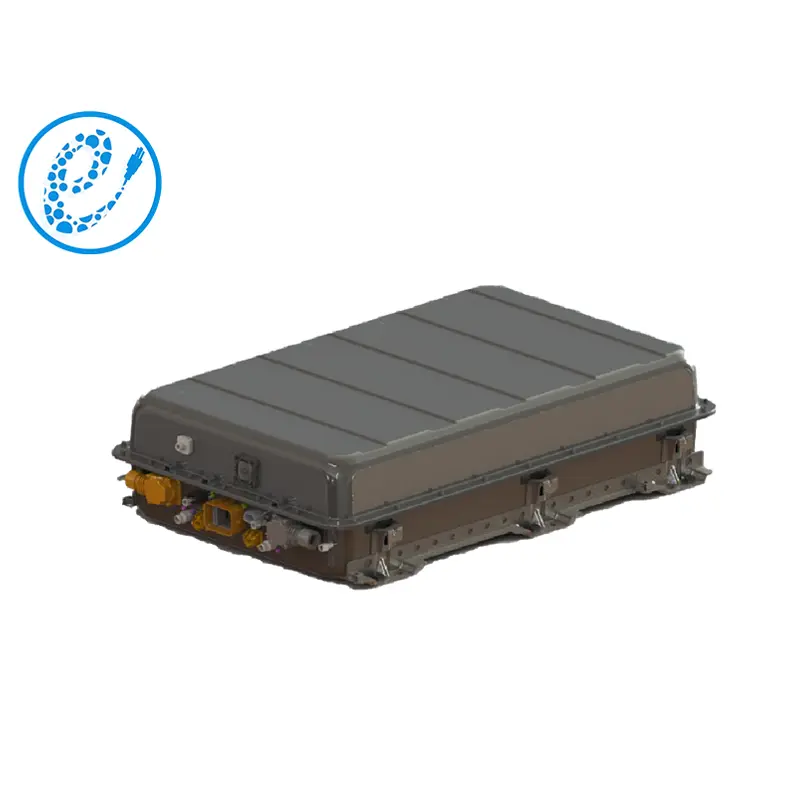

PS050605-105.6V280A (280AH1P33S) is a 1-parallel and 33-series lithium battery liquid-cooled pack with reliable and vibration-resistant structure. With a rated energy of 29.57kwh and a rated voltage of 105.6V, it can meet a wide range of applications and is ideal for industrial and commercial energy storage, electric vehicles, and renewable energy systems.
| No. | Items | EP-LFP 280Ah STADARD PACK | Note | |
| PS050605-105.6V280A | ||||
| 280AH1P33S | ||||
| 1 | Nominal voltage(V) | 105.6 | ||
| 2 | Operating voltage(V) | min | 82.5 | |
| 3 | max | 120.45 | ||
| 4 | Cell Configuration | 1P33S | ||
| 5 | Nominal energy（KWh ） | 29.57 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 280 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 280 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 280 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Liquid cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1020 | ||
| Dimension B (mm) | 635 | |||
| Dimension H (mm) | 249 | |||
The battery box is currently assembled with a full range of VDA series batteries, which can be adapted to most commercial vehicle models on the market (bus, heavy truck, mining dump, construction machinery, etc.)
