SCXXXX02-5.6MWh-921.6V6160A(280Ah22P288S)-40GP-280Ah1P36S-8S-22P(0.5P)

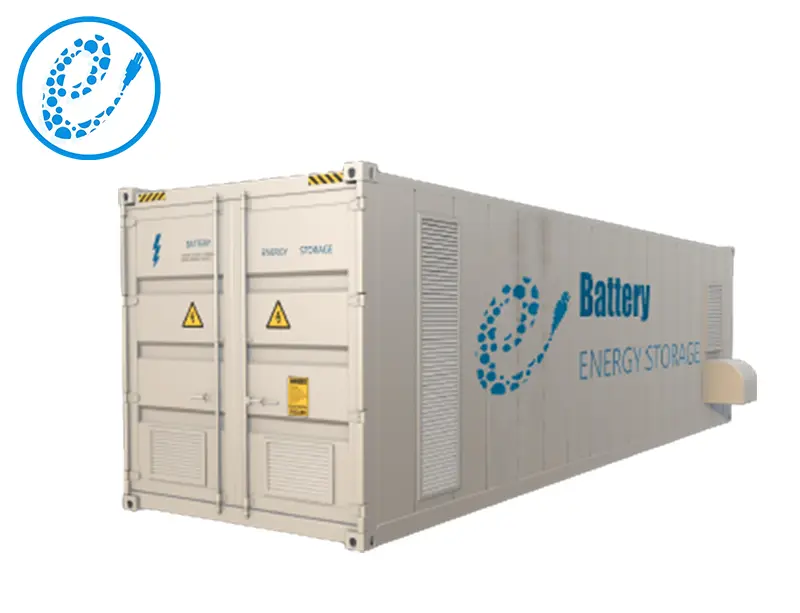

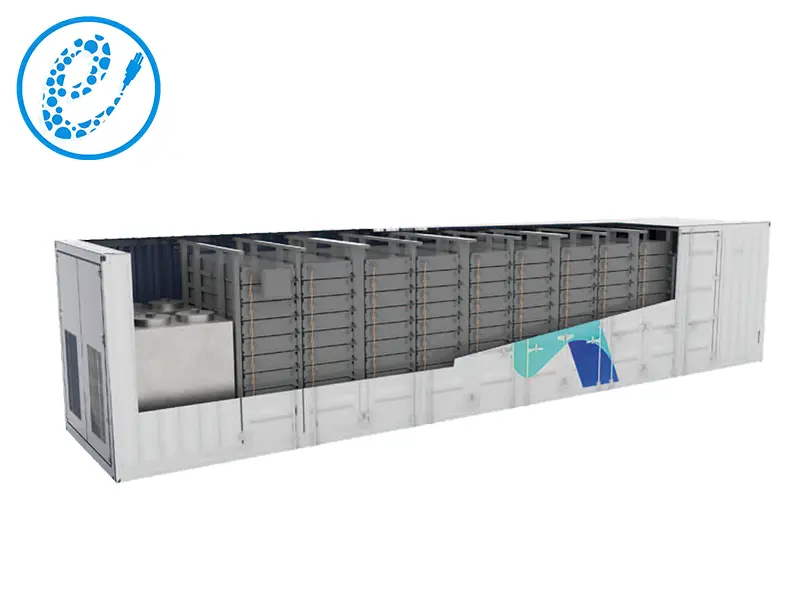

SCXXXX02-5.6MWh-921.6V6160A(280Ah22P288S) This 22P288S configured battery storage system consists of 22 parallel (22P) and 288 series (288S) battery packs. Suitable for 40fts container energy storage, providing you with a powerful and efficient energy storage solution.

Our SCXXXX02-921.6V6160A (280Ah22P288S) Containerised Energy Storage System combines advanced technology and high performance batteries to provide a powerful and efficient energy storage solution in a convenient containerised form factor.



No.ItemSpec.Remark
1Configuration288s22p
2Rated Energy5677.056kWh100%DOD250.5C
3Operating Voltage   Range748.8~1036.8VFor cell 2.6V~3.6V
4Dimension12192mm×2438mm×2896mm
5Mass~70T
6Rated charge current3080(for 0.5P system)According to current   map
7Rated discharge   current3080A(for 0.5P   system)According to current   map
8Short   overload charging current
    (≤1min
6160A(for 0.5P   system)According to current   map
9Short   overload charging current
    (≤1min
6160A(for 0.5P   system)According to current   map
10Temperature range in   cabin-20~50℃
11IP level of cabinBat.   Room IP54
    Electric room IP54

12Cooling and heating   typeLiquid cooling / heating
13Communication   agreementCAN, RS485, TCP/IP
14Environment   temperature-30~55/
15environment humidity5%~90%RH/
16Altitude≤3000m/
