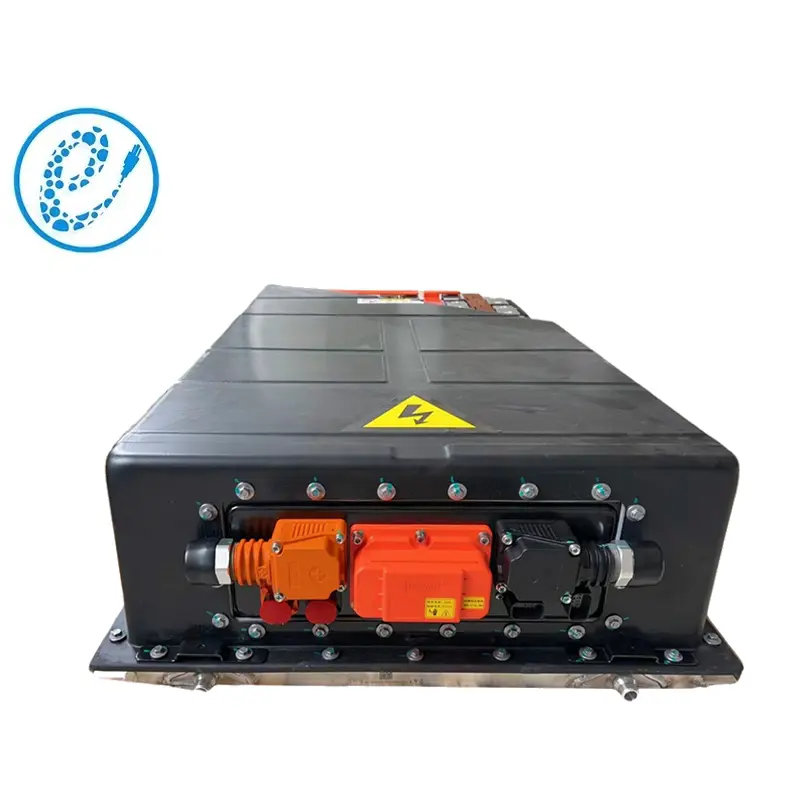

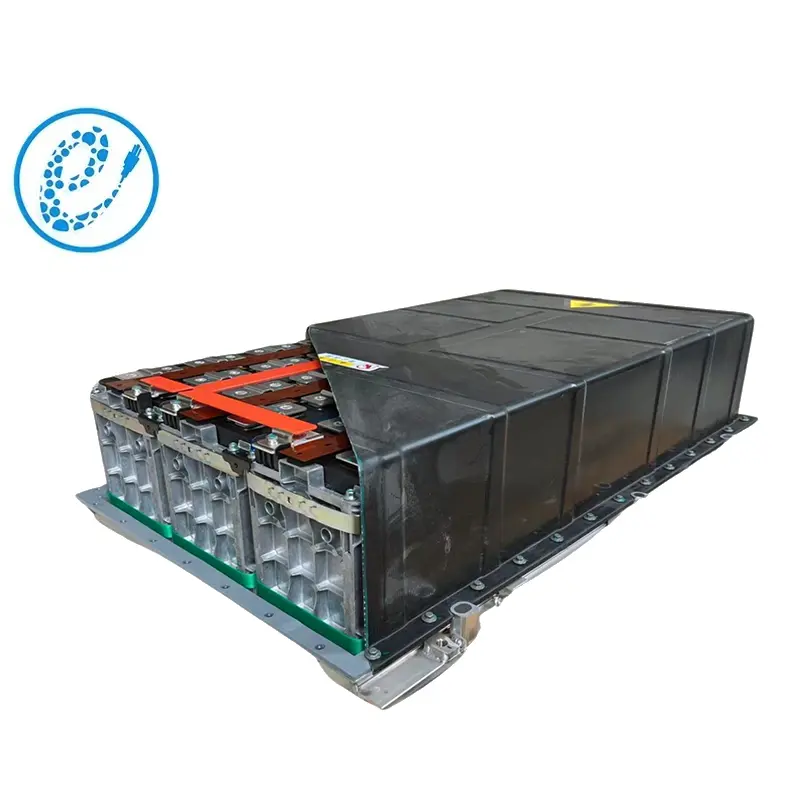

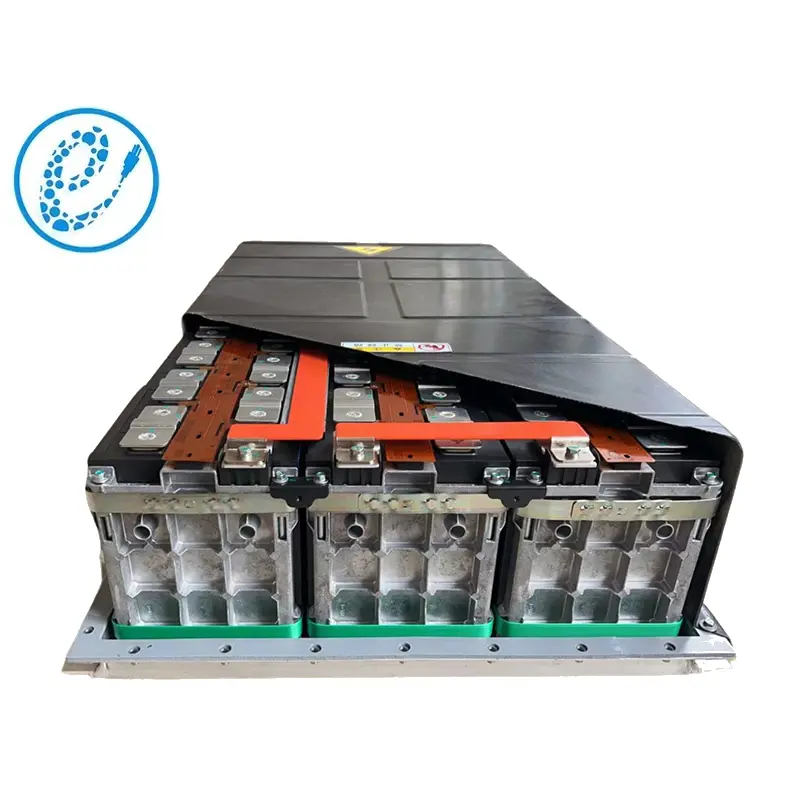

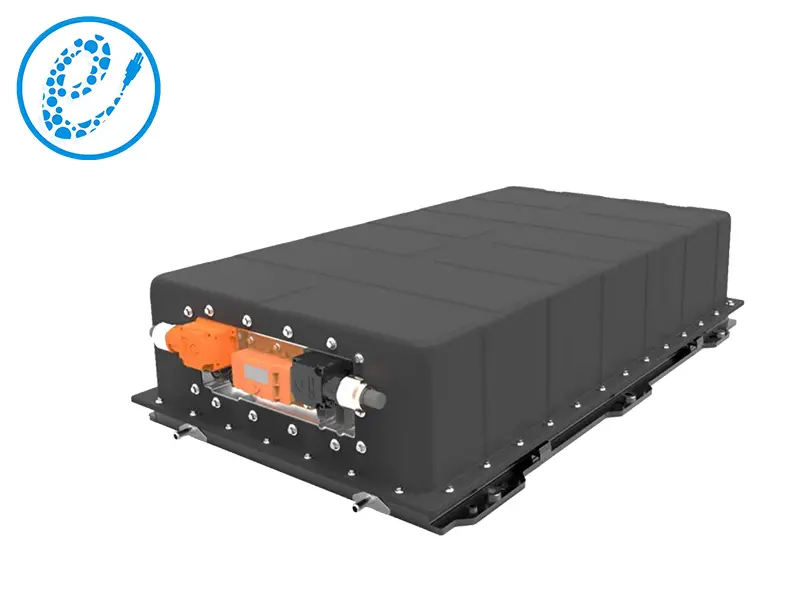

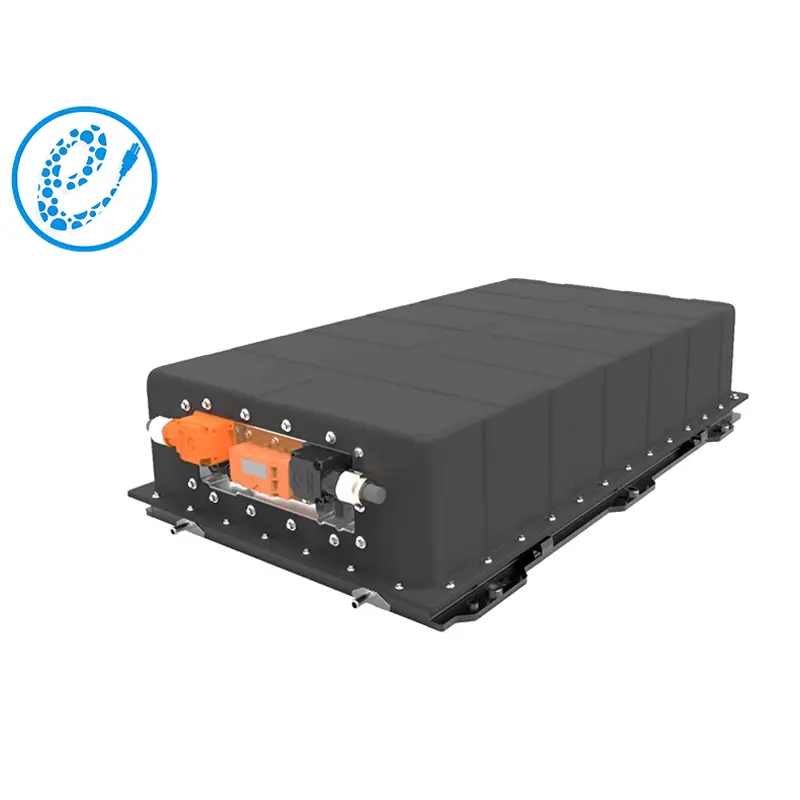

PS131502-154.56V206A (206AH1P48S) lithium battery power pack features a 1P48S configuration with a rated voltage of 154.56V and a rated energy of 31.839kwh.This liquid-cooled lithium battery pack is versatile enough to meet a wide range of applications. From powering residential and commercial systems to supporting remote communication stations, this battery will effortlessly meet your unique energy needs. You have the freedom to customise your energy solution to your specific needs.
| No. | Items | EP-LFP 206Ah STADARD PACK | Note | |
| PS131502-154.56V206A | ||||
| 206AH1P48S | ||||
| 1 | Nominal voltage(V) | 154.56 | ||
| 2 | Operating voltage(V) | min | 124.8 | |
| 3 | max | 168 | ||
| 4 | Cell Configuration | 1P48S | ||
| 5 | Nominal energy（KWh ） | 31.839 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 206 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 206 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 206 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Liquid cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1060 | ||
| Dimension B (mm) | 630 | |||
| Dimension H (mm) | 240 | |||
