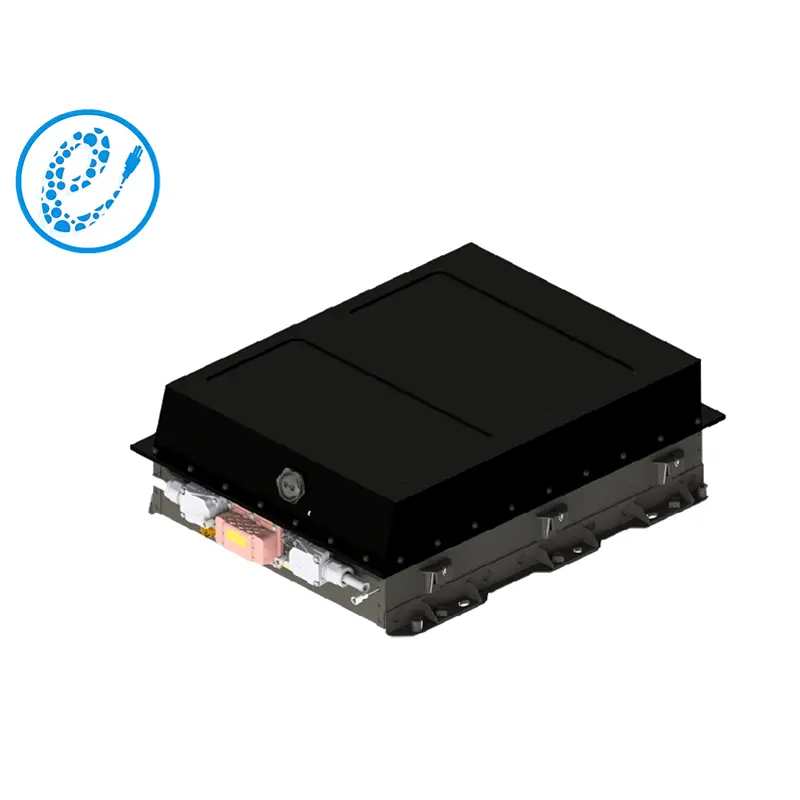

The PS050605-193.2V100A (100AH1P60S) consists of 60 cells connected in series, with a rated energy of 19.32kwh and a rated voltage of 193.2V, and is a battery pack designed to meet the diverse demands of modern power applications.
As the world moves towards cleaner and more efficient energy sources, reliable and high-performance batteries have become paramount in various sectors, from renewable energy systems to electric transportation. Our PS050605-193.2V100A（100AH1P60S）battery pack is a standout choice for customers seeking optimal performance and longevity.
| No. | Items | EP-LFP 100Ah STADARD PACK | Note | |
| PS050605-193.2V100A | ||||
| 100AH1P60S | ||||
| 1 | Nominal voltage(V) | 193.2 | ||
| 2 | Operating voltage(V) | min | 150 | |
| 3 | max | 219 | ||
| 4 | Cell Configuration | 1P60S | ||
| 5 | Nominal energy（KWh ） | 19.32 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 100 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | ≤100 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | ≤100 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 805 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 240 | |||
The battery box is currently assembled with a full range of VDA series cells, and is a battery box developed specifically for special models such as sightseeing cars and field cars.

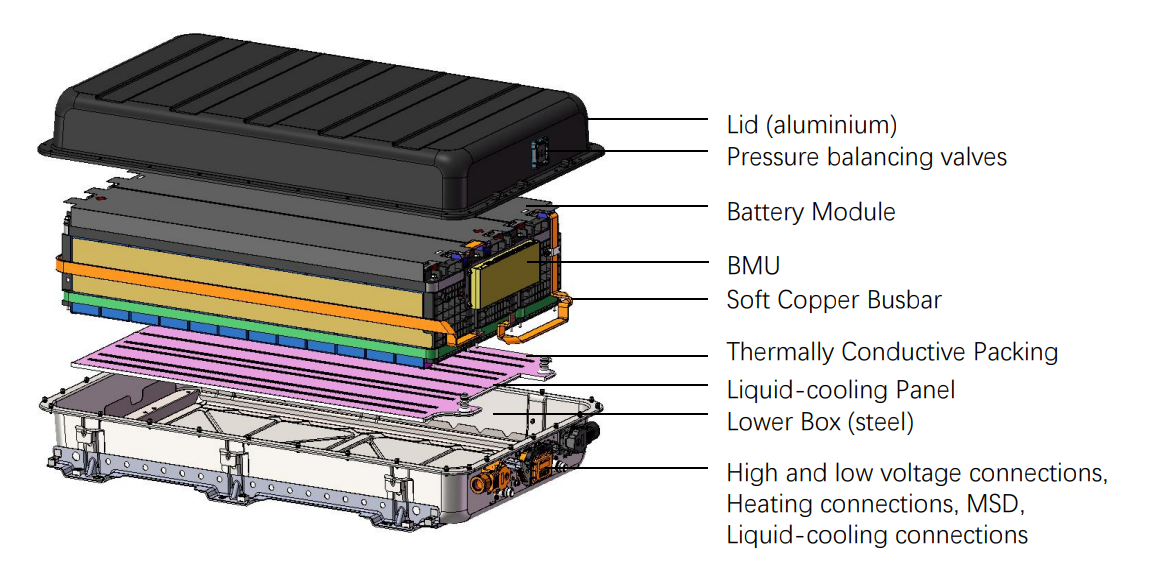

.png "ps050605_(1).png")

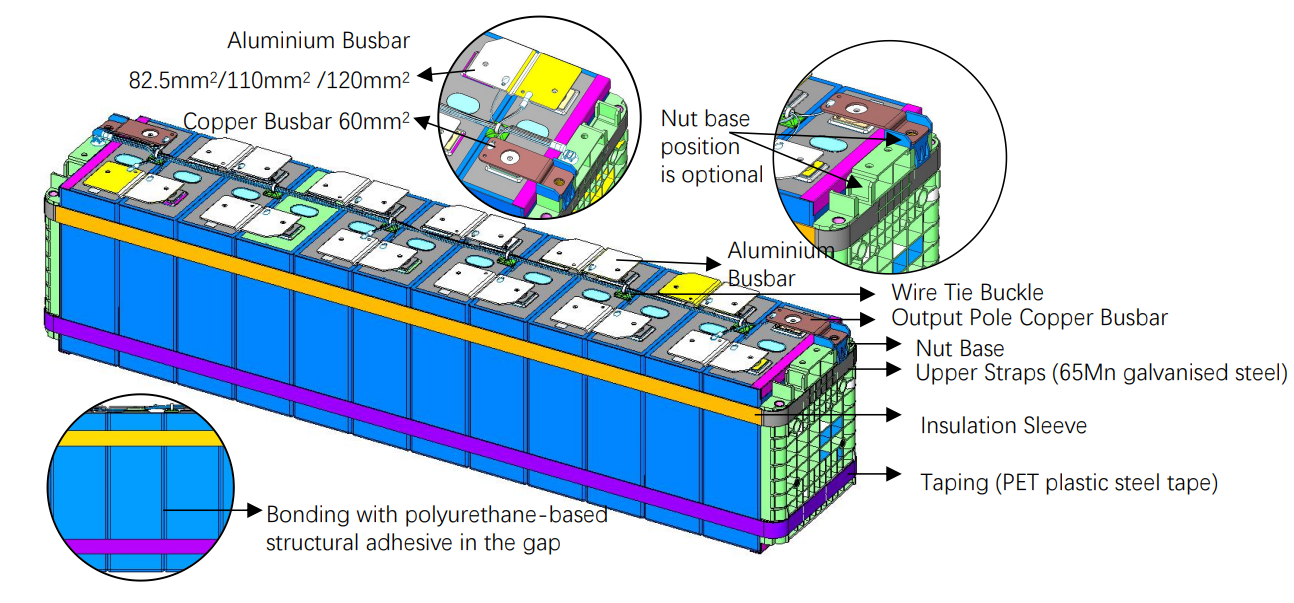

.png "ps050605_(2).png")

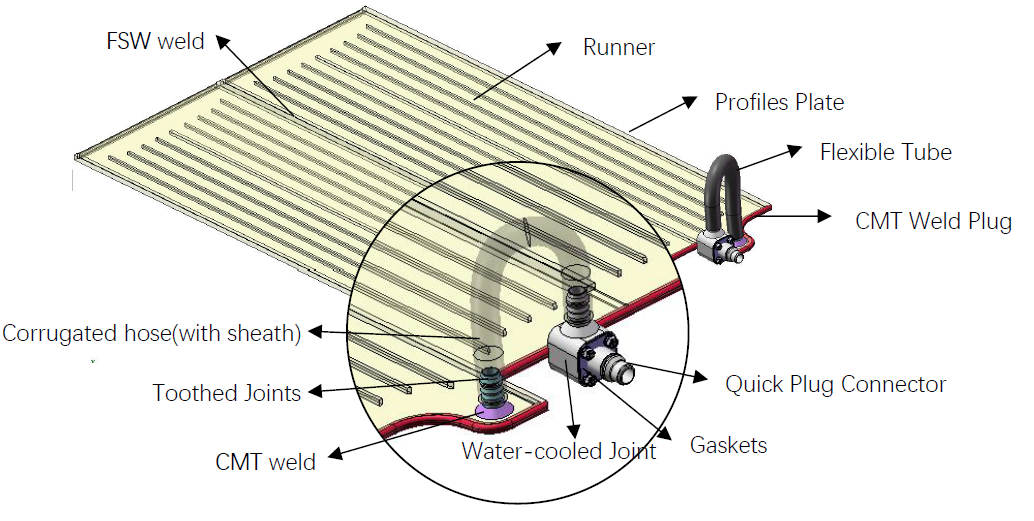

.png "ps050605_(3).png")

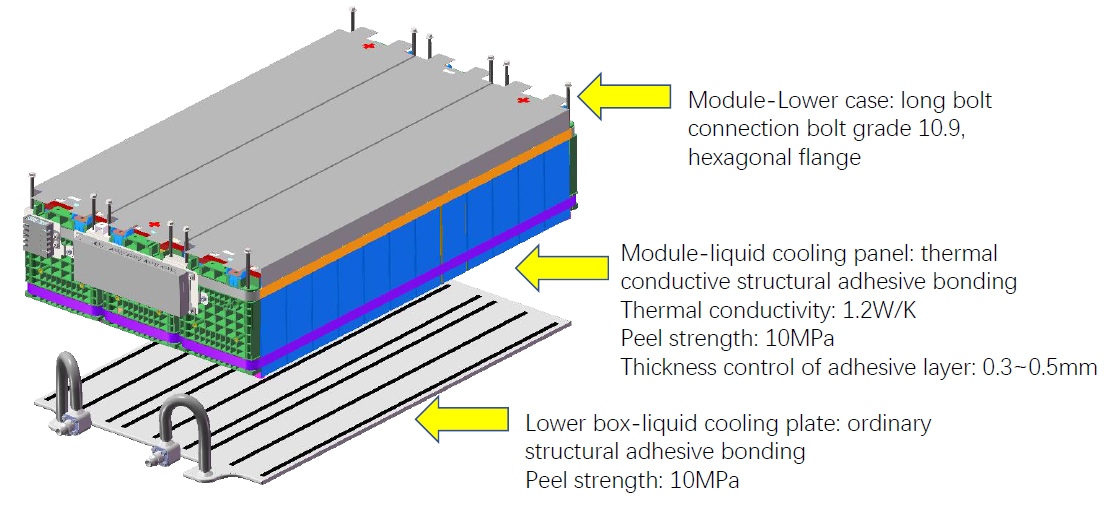

.png "ps050605_(4).png")

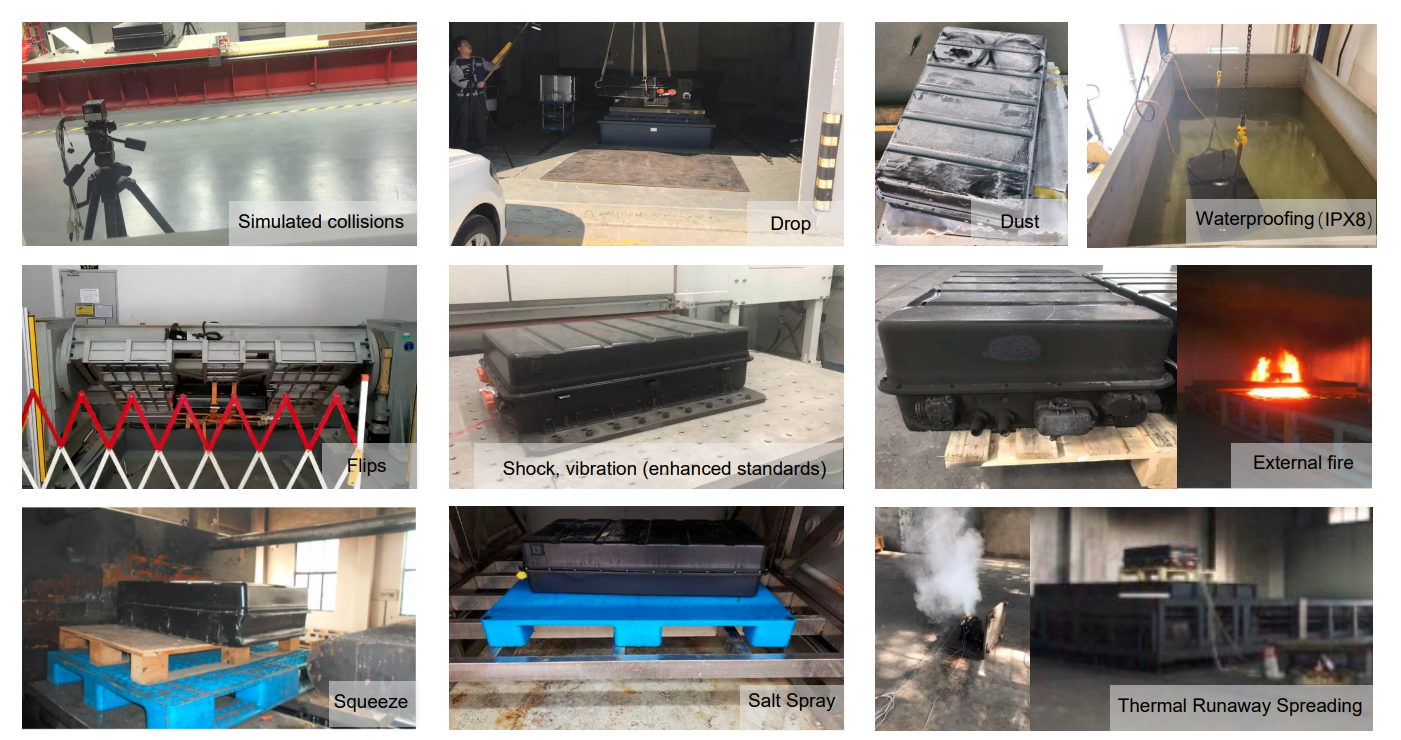

.png "ps050605_(5).png")

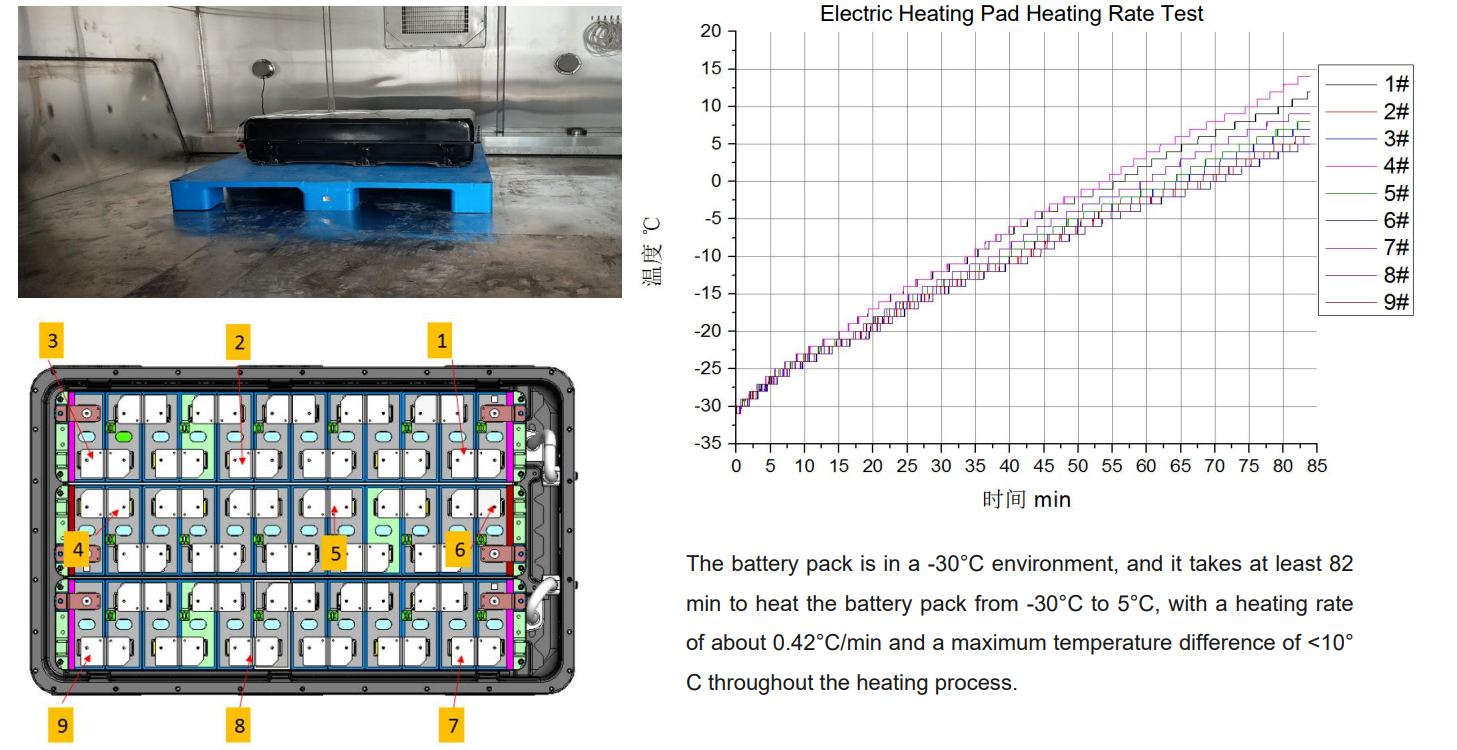

.png "ps050605_(6).png")

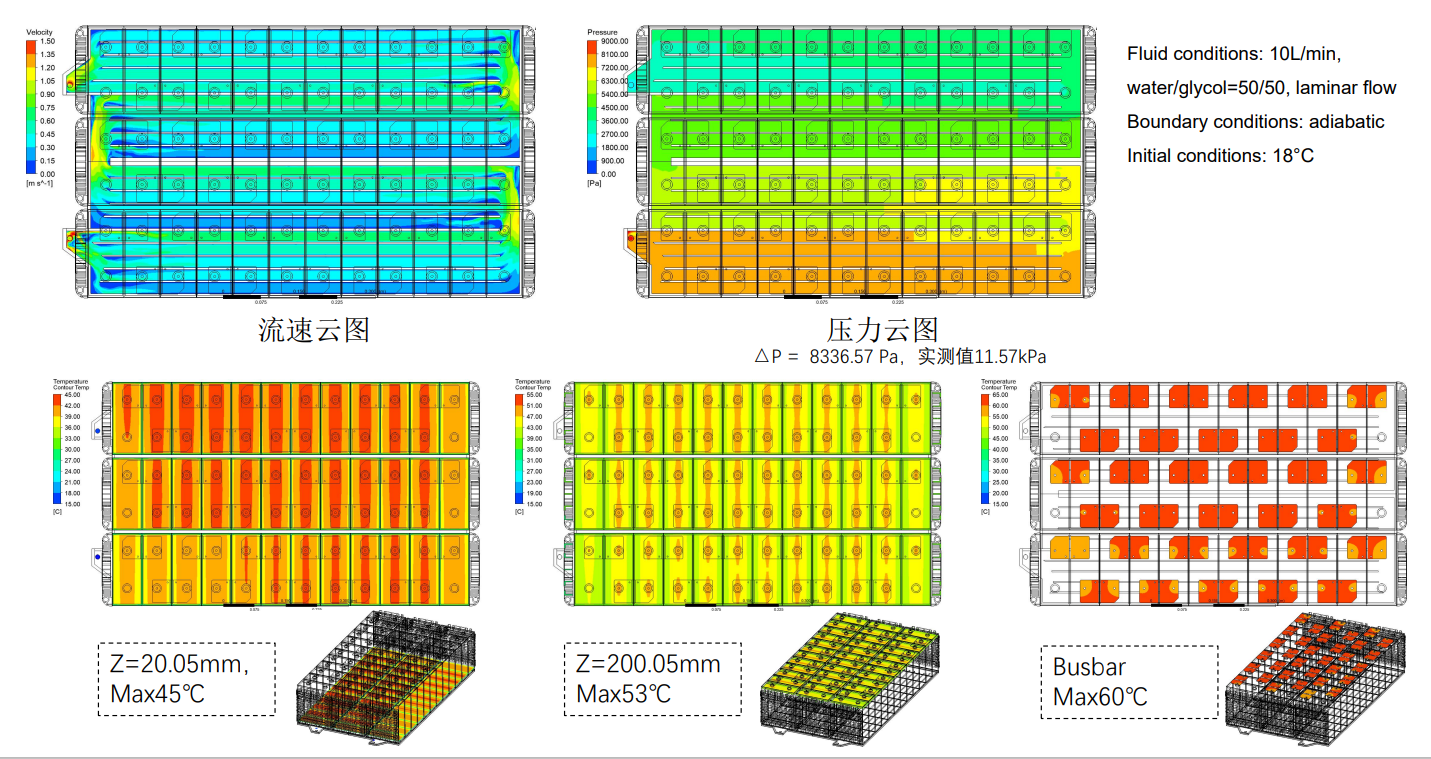

.png "ps050605_(7).png")

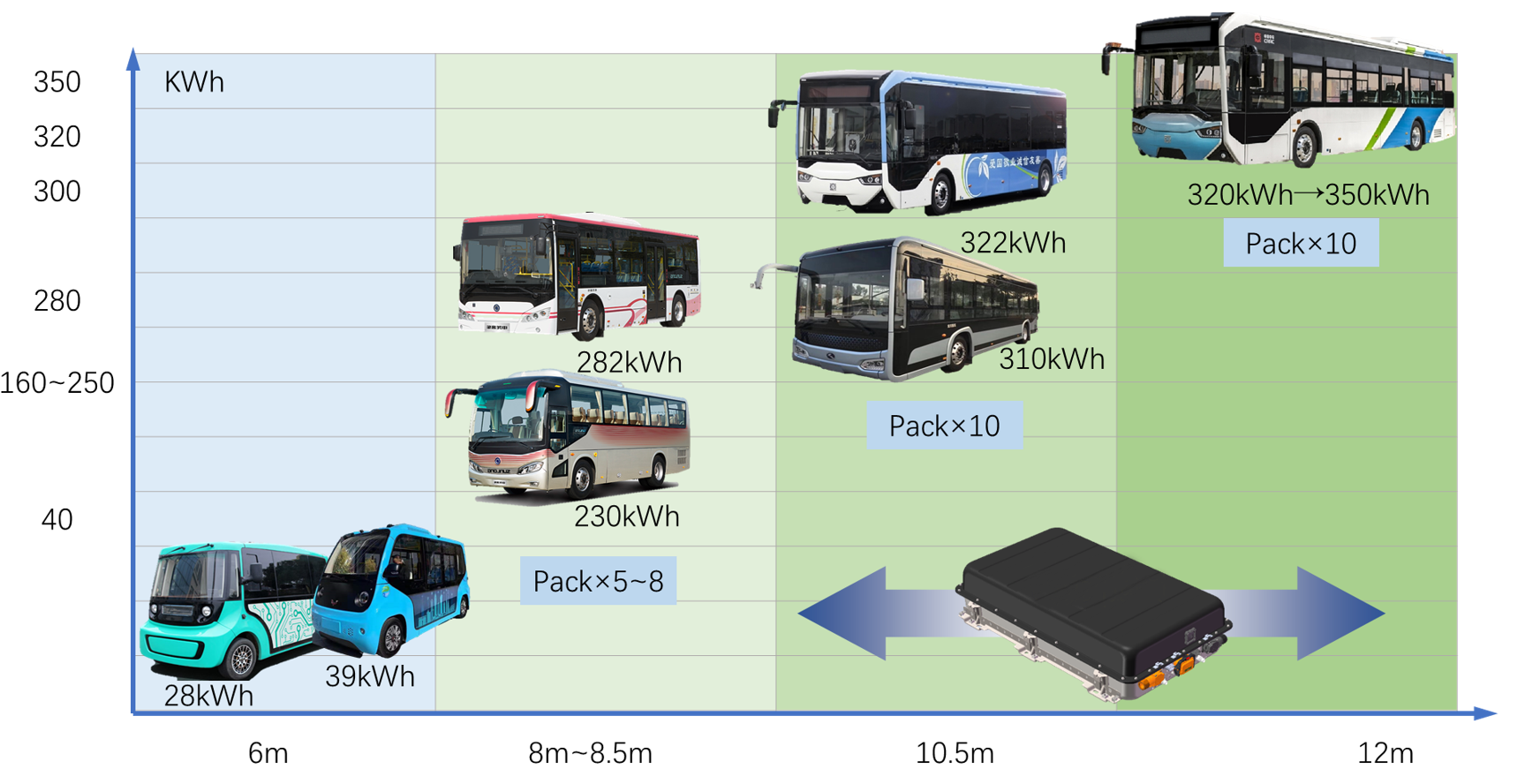

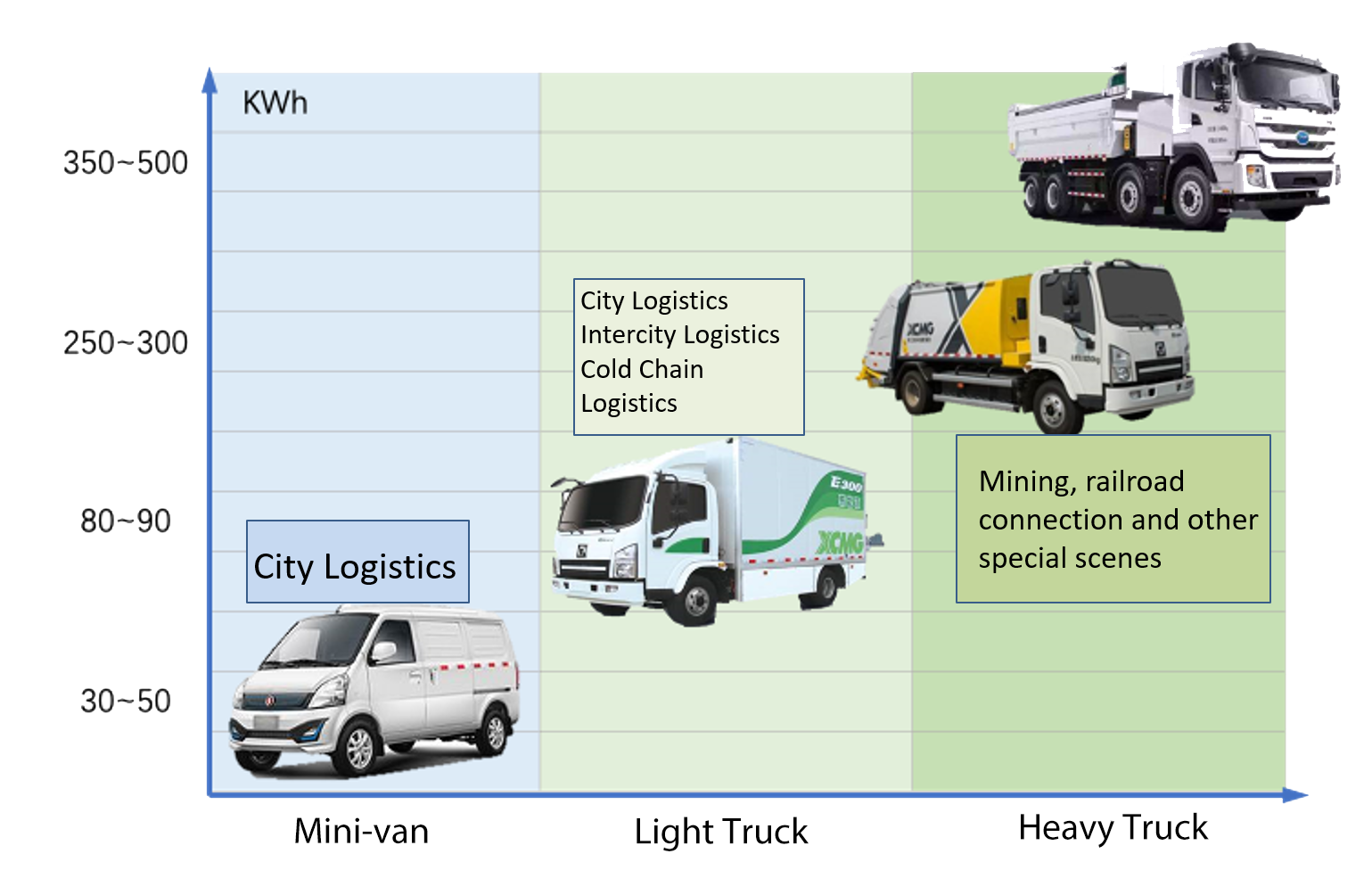

Project Case
