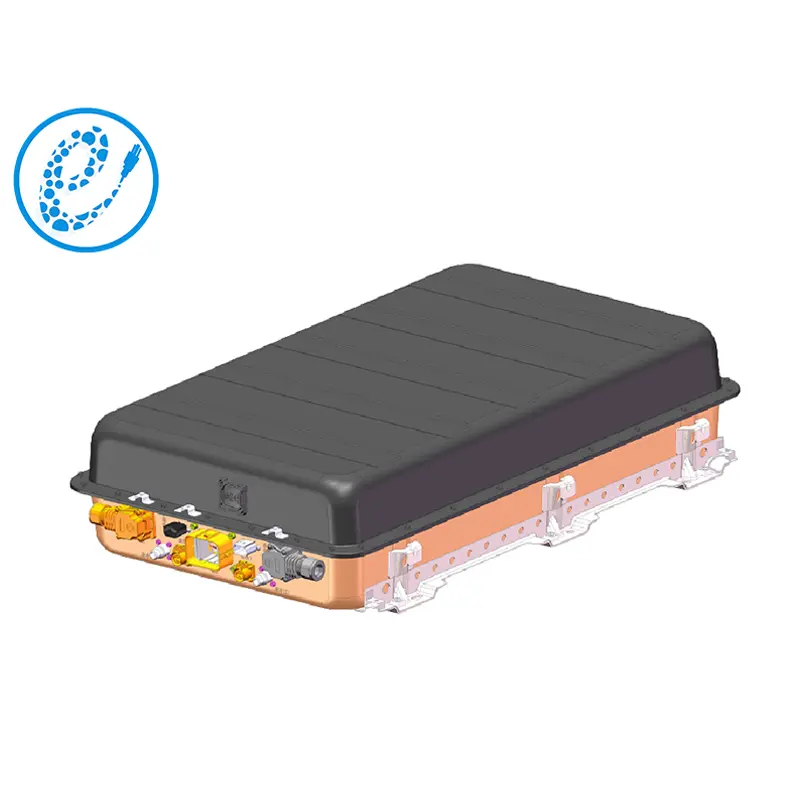

PS050605-153.6V230A (230AH1P48S) consists of 48 series-connected cells with a rated energy of up to 35.33kwh and a rated voltage of 153.6V. It is a lithium battery pack designed to meet the various needs of power energy storage applications. Compared with lithium battery modules, lithium battery pack has higher safety performance, better overall function and higher degree of integration.
Whether it is for commercial, industrial or domestic energy storage, it can provide your project with stable performance and ensure smooth operation.
| No. | Items | EP-LFP 230Ah STADARD PACK | Note | |
| PS050605-153.6V230A | ||||
| 230AH1P48S | ||||
| 1 | Nominal voltage(V) | 153.6 | ||
| 2 | Operating voltage(V) | min | 120 | |
| 3 | max | 175.2 | ||
| 4 | Cell Configuration | 1P48S | ||
| 5 | Nominal energy（KWh ） | 35.33 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 230 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 230 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 230 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Liquid cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1070 | ||
| Dimension B (mm) | 635 | |||
| Dimension H (mm) | 249 | |||
The battery box is currently assembled with a full range of VDA series batteries, which can be adapted to most commercial vehicle models on the market (bus, heavy truck, mining dump, construction machinery, etc.) .
.png "ps050605_(1).png")
.png "ps050605_(2).png")
.png "ps050605_(3).png")
.png "ps050605_(4).png")
.png "ps050605_(5).png")
.png "ps050605_(6).png")
.png "ps050605_(7).png")
