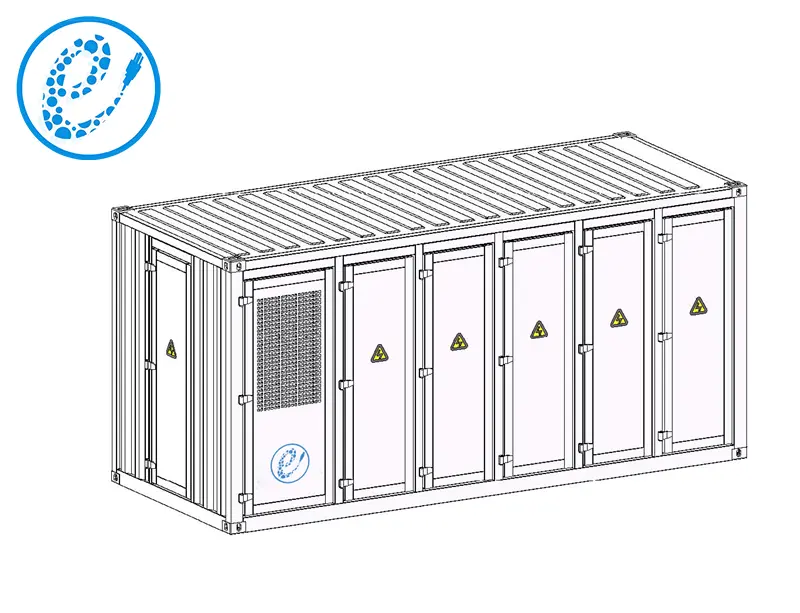

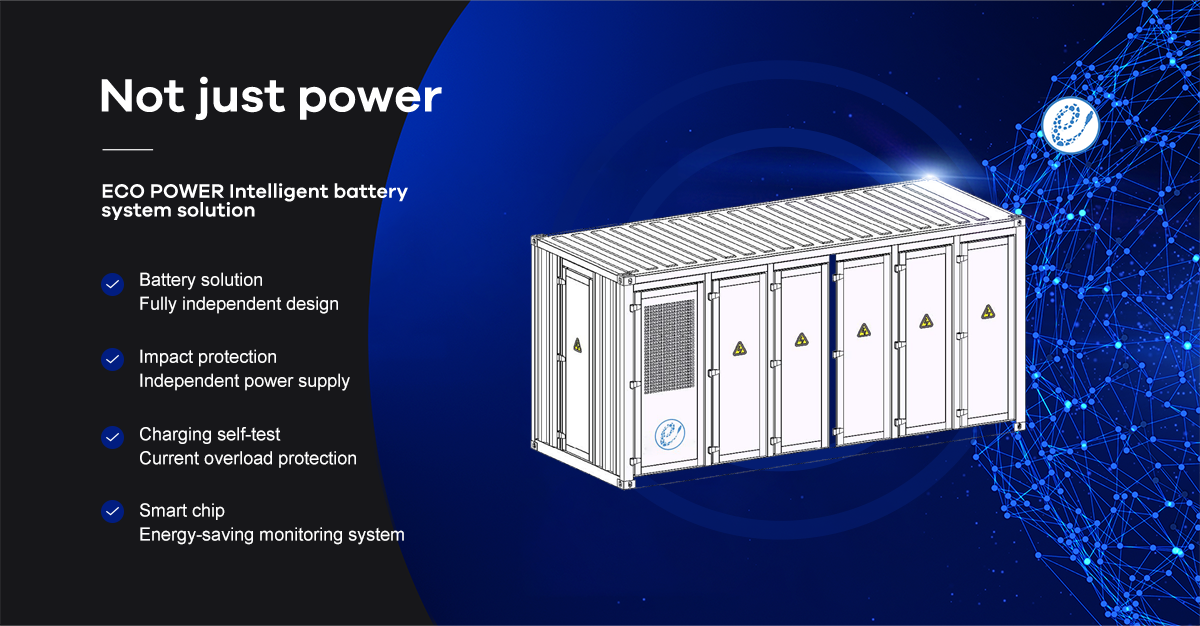

SCXXXX02-3.7MWh-1331.2V2800A(280Ah10P416S) Battery Energy Storage System is rated at up to 3727.36kWh and is suitable for 20fts container energy storage, providing you with a powerful and efficient energy storage solution. SCXXXX02-1331.2V2800A(280Ah10P416S)This battery energy storage system The 10P416S configuration ensures a harmonious balance of power, safety and performance, guaranteeing a reliable energy supply.
| No. | Item | Spec. | Remark |
| 1 | Configuration | 416s10p | |
| 2 | Rated Energy | 3727.36kWh | 100%DOD，25℃，0.5C |
| 3 | Operating Voltage Range | 1081.6~1497.6V | For cell 2.6V~3.6V |
| 4 | Dimension | 6058mm×2438mm×2896mm | |
| 5 | Mass | ~35000kg | |
| 6 | Rated charge current | 1400（for 0.5P system） | According to current map |
| 7 | Rated discharge current | 1400A（for 0.5P system） | According to current map |
| 8 | Short overload charging current （≤1min） | 2800A（for 0.5P system） | According to current map |
| 9 | Short overload charging current （≤1min） | 2800A（for 0.5P system） | According to current map |
| 10 | Temperature range in cabin | -20~50℃ | |
| 11 | IP level of cabin | Bat. Room IP54 Electric room IP54 | |
| 12 | Cooling and heating type | Liquid cooling / heating | |
| 13 | Communication agreement | CAN, RS485, TCP/IP | |
| 14 | Environment temperature | -30℃~55℃ | / |
| 15 | environment humidity | 5%~90%RH | / |
| 16 | Altitude | ≤3000m | / |
