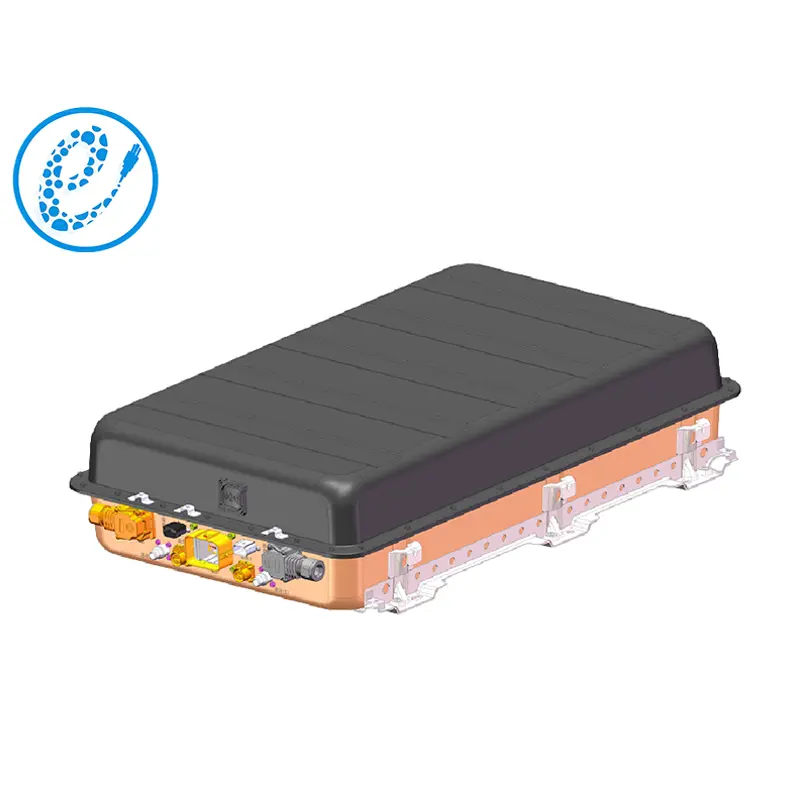

PS050605-115.2V280A (280AH1P36S) consists of 36 cells connected in series, with a rated energy of 32.26kwh and a rated voltage of 115.2 V. Compared with lithium battery modules, the lithium battery pack optimises energy distribution and improves efficiency and performance. It minimises energy loss and extends the overall life of the battery. Its versatility and adaptability make it the first choice for a wide range of commercial and industrial renewable energy needs.
| No. | Items | EP-LFP 280Ah STADARD PACK | Note | |
| PS050605-115.2V280A | ||||
| 280AH1P36S | ||||
| 1 | Nominal voltage(V) | 115.2 | ||
| 2 | Operating voltage(V) | min | 90 | |
| 3 | max | 131.4 | ||
| 4 | Cell Configuration | 1P36S | ||
| 5 | Nominal energy（KWh ） | 32.26 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 280 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 280 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 280 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Liquid cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1070 | ||
| Dimension B (mm) | 635 | |||
| Dimension H (mm) | 249 | |||
The battery box is currently assembled with a full range of VDA series batteries, which can be adapted to most commercial vehicle models on the market (bus, heavy truck, mining dump, construction machinery, etc.) .
.png "ps050605_(1).png")
.png "ps050605_(2).png")
.png "ps050605_(3).png")
.png "ps050605_(4).png")
.png "ps050605_(5).png")
.png "ps050605_(6).png")
.png "ps050605_(7).png")
