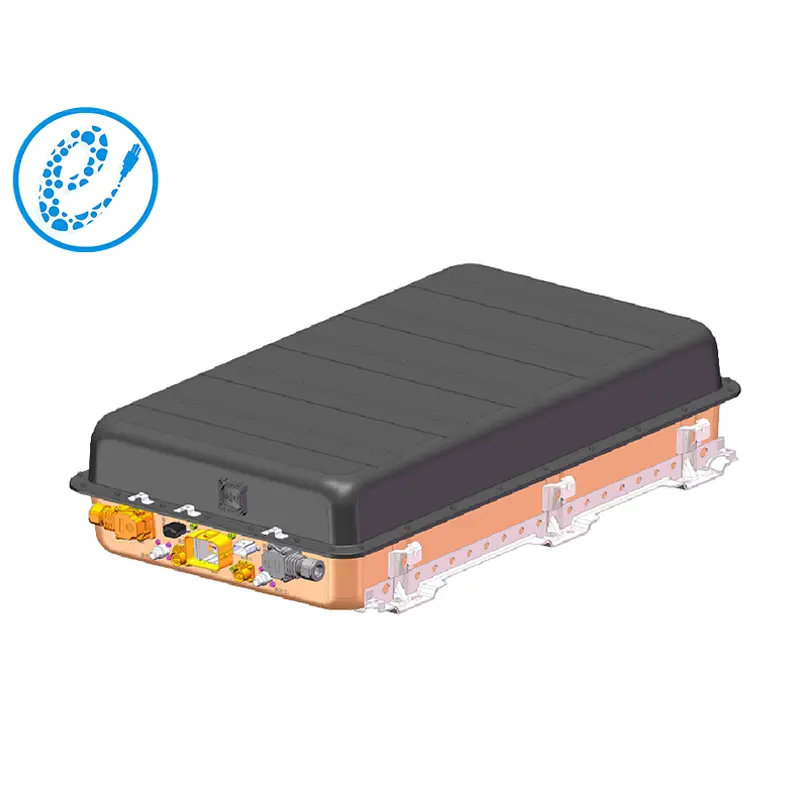

PS050605-115.92V302A (302AH1P36S) lithium battery module pack has a 1P36S configuration with a rated energy of 35.01kwh and a rated voltage of 115.92V.
Engineered with cutting-edge Lithium Iron Phosphate (LiFePO4) technology of battery cell manufacturer, the PS050605-115.92V battery stands out as a testament to technological excellence. The LiFePO4 chemistry guarantees higher energy density, faster charging times, and superior overall performance, elevating your energy storage experience to new heights.
Unlock the potential of clean, efficient, and powerful energy storage with the PS050605-115.92V 302Ah LiFePO4 Battery. Embrace the future of sustainable energy solutions and embrace a world where power is truly in your hands.
| No. | Items | EP-LFP 302Ah STADARD PACK | Note | |
| PS050605-115.92V302A | ||||
| 302AH1P36S | ||||
| 1 | Nominal voltage(V) | 115.92 | ||
| 2 | Operating voltage(V) | min | 90 | |
| 3 | max | 131.4 | ||
| 4 | Cell Configuration | 1P36S | ||
| 5 | Nominal energy（KWh ） | 35.01 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 302 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 302 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 302 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Liquid cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1070 | ||
| Dimension B (mm) | 635 | |||
| Dimension H (mm) | 249 | |||
The battery box is currently assembled with a full range of VDA series batteries, which can be adapted to most commercial vehicle models on the market (bus, heavy truck, mining dump, construction machinery, etc.) .
