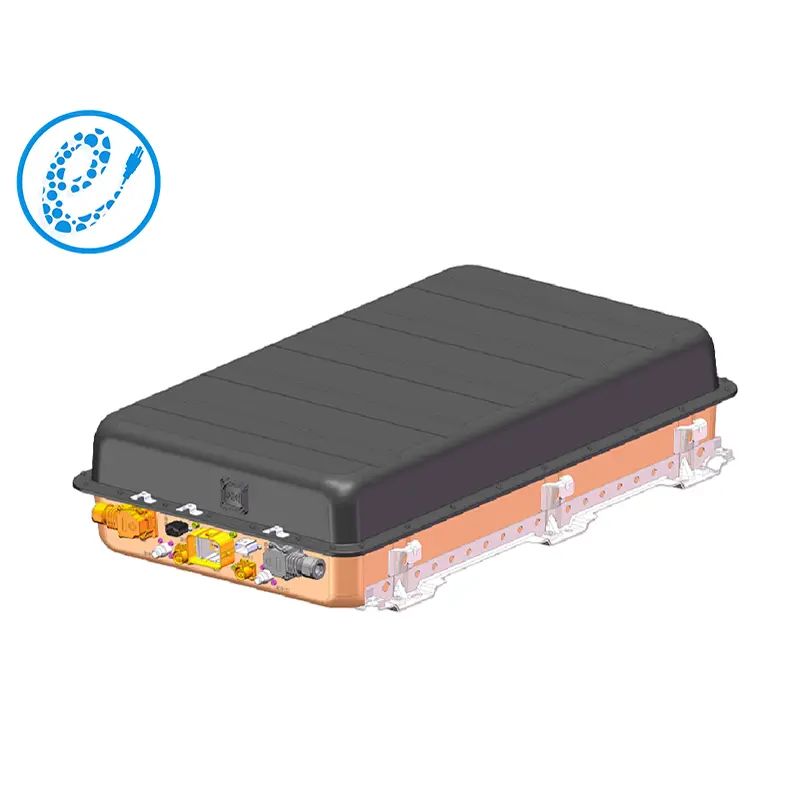

The PS050605-222.18V battery boasts a voltage of 222.18V, making it an ideal power source for a wide range of devices and equipment. With a generous energy of 27.77kwh, it offers substantial energy storage to keep your devices running efficiently.
This battery utilizes a 1P69S configuration, consisting of one parallel cell group (1P) and 69 series-connected cells (69S). This configuration ensures a harmonious balance of power, safety, and performance, guaranteeing a reliable energy supply.
Your safety is paramount to us. The PS050605-222.18V 125 ah lithium battery pack is equipped with comprehensive safety features, including overcharge protection, over-discharge protection, short circuit protection, and temperature control. These features safeguard the battery and its surroundings from potential risks.
| No. | Items | EP-LFP 125Ah STADARD PACK | Note | |
| PS050605-222.18V125A | ||||
| 125AH1P69S | ||||
| 1 | Nominal voltage(V) | 222.18 | ||
| 2 | Operating voltage(V) | min | 172.5 | |
| 3 | max | 251.85 | ||
| 4 | Cell Configuration | 1P69S | ||
| 5 | Nominal energy（KWh ） | 27.77 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 125 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 125 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 125 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1070 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 250 | |||
The battery box is currently assembled with a full range of VDA series batteries, which can be adapted to most commercial vehicle models on the market (bus, heavy truck, mining dump, construction machinery, etc.) .
.png "ps050605_(1).png")
.png "ps050605_(2).png")
.png "ps050605_(3).png")
.png "ps050605_(4).png")
.png "ps050605_(5).png")
.png "ps050605_(6).png")
.png "ps050605_(7).png")
