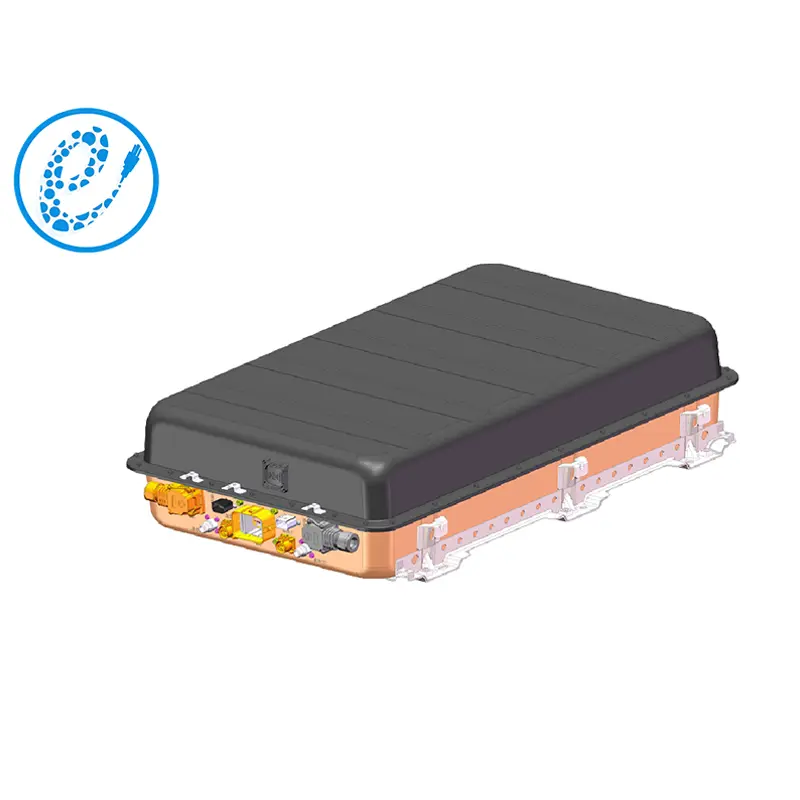

PS050605-193.2V173A (173Ah1P60S) Adopts 173Ah rated capacity and 193.2V rated voltage.
This pack design has many advantages, such as low cost: low automation cost of PACK production line, including production equipment, production loss; easy to disassemble: battery pack is easy to maintain and repair, low cost, and good cell ladderability.
| No. | Items | EP-LFP 173Ah STADARD PACK | Note | |
| PS050605-193.2V173A | ||||
| 173AH1P60S | ||||
| 1 | Nominal voltage(V) | 193.2 | ||
| 2 | Operating voltage(V) | min | 150 | |
| 3 | max | 219 | ||
| 4 | Cell Configuration | 1P60S | ||
| 5 | Nominal energy（KWh ） | 33.42 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 173 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 173 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 173 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1070 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 250 | |||
The battery box is currently assembled with a full range of VDA series batteries, which can be adapted to most commercial vehicle models on the market (bus, heavy truck, mining dump, construction machinery, etc.) .
