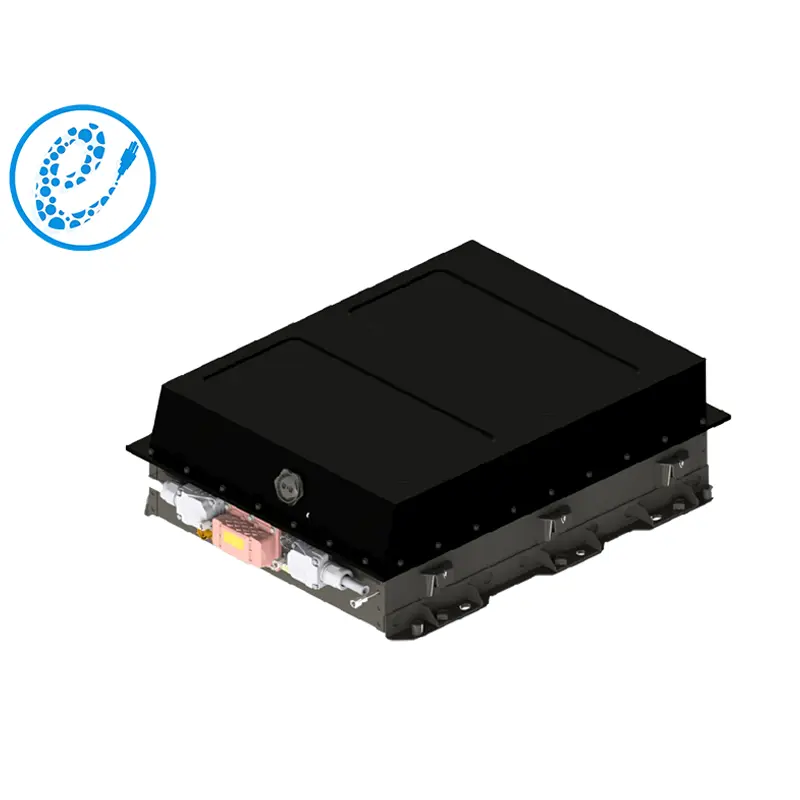

PS050605-154.56V150A (150AH1P48S) consists of 48 cells connected in series, with a rated energy of 23.18kwh and a rated voltage of 154.56 V. Compared to modules, the 150ah lifepo4 Li-Ion battery pack optimises energy distribution and improves efficiency and performance. It minimises energy loss and extends the overall life of the battery. Its versatility and adaptability make it the first choice for a wide range of commercial and industrial renewable energy needs.
| No. | Items | EP-LFP 150Ah STADARD PACK | Note | |
| PS050605-154.56V150A | ||||
| 150AH1P48S | ||||
| 1 | Nominal voltage(V) | 154.56 | ||
| 2 | Operating voltage(V) | min | 120 | |
| 3 | max | 175.2 | ||
| 4 | Cell Configuration | 1P48S | ||
| 5 | Nominal energy（KWh ） | 23.18 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 150 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 150 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 150 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 805 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 240 | |||
The battery box is currently assembled with a full range of VDA series cells, and is a battery box developed specifically for special models such as sightseeing cars and field cars.
.png "ps050605_(1).png")
.png "ps050605_(2).png")
.png "ps050605_(3).png")
.png "ps050605_(4).png")
.png "ps050605_(5).png")
.png "ps050605_(6).png")
.png "ps050605_(7).png")
