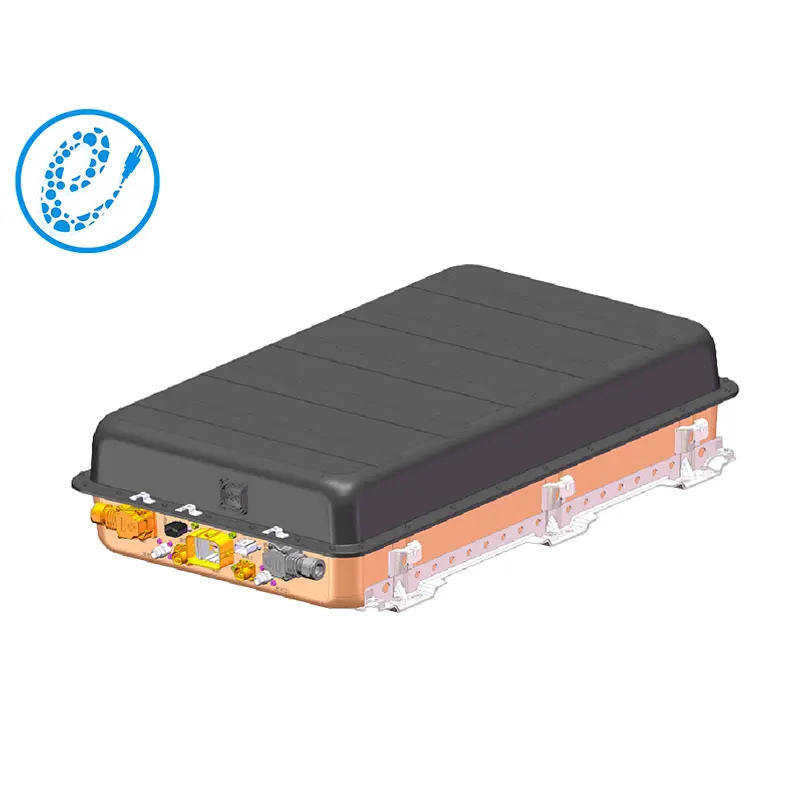

PS050605-153.6V205A (205AH1P48S) battery pack features a 1P48S configuration with a rated energy of 31.49kwh and a rated voltage of 153.6 V. Whether you're powering an electric vehicle, integrating a renewable energy system, or looking for powerful energy storage for an industrial application, this battery pack has what you need.
| No. | Items | EP-LFP 205Ah STADARD PACK | Note | |
| PS050605-153.6V205A | ||||
| 205AH1P48S | ||||
| 1 | Nominal voltage(V) | 153.6 | ||
| 2 | Operating voltage(V) | min | 120 | |
| 3 | max | 175.2 | ||
| 4 | Cell Configuration | 1P48S | ||
| 5 | Nominal energy（KWh ） | 31.49 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 205 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 205 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 205 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Liquid cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1070 | ||
| Dimension B (mm) | 635 | |||
| Dimension H (mm) | 249 | |||
The battery box is currently assembled with a full range of VDA series batteries, which can be adapted to most commercial vehicle models on the market (bus, heavy truck, mining dump, construction machinery, etc.) .
