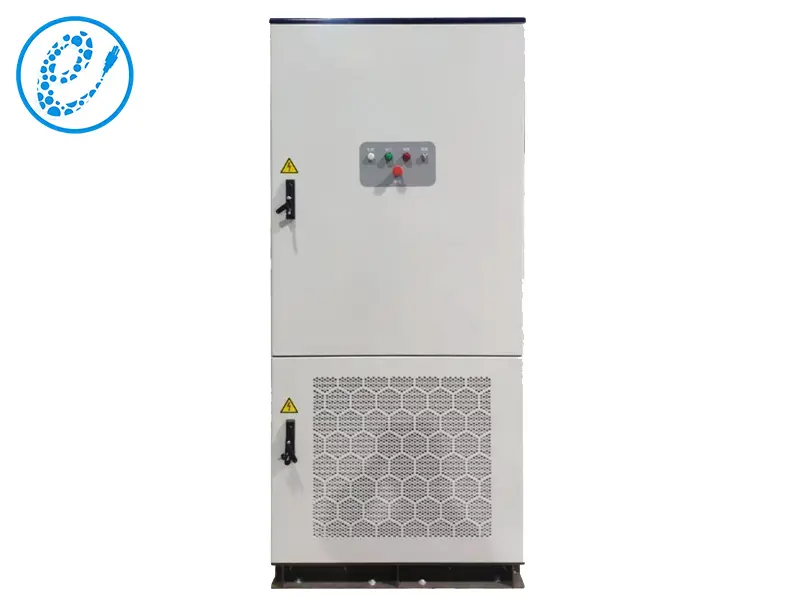

The SS12XXXX is a liquid-cooled energy storage system with a capacity of 261kWh, utilizing 314Ah LiFePO4 cells in a 1P260S configuration and operating at a nominal voltage of 832V. Designed for reliability and efficiency, it is well-suited for various energy storage applications, ensuring stable performance with advanced liquid cooling technology.
.png "314AH1P260S_(1).png")
| Model | SS12XXXX-832V314A(314AH1P260S) | Remarks |
| Battery System | ||
| Cell Type | 3.2V/314Ah，LFP | |
| System rated capacity | 261kWh | |
| Battery Grouping Method | 5*1P52S | |
| Charge/discharge C-rate | ≤0.5P | |
| System efficiency | ≥86% | |
| Operating Temperature Range | Discharge:-20~55℃ Charge:0~55℃ | |
| UPS | Off-grid option | |
| Fire-fighting method | Perfluoroacetone/Aerosol Option | |
| Communication method | RS485, Modbus-TCP, LAN | |
| Cooling method | Liquid cooling | |
| Protection class | IP54 | |
| Anti-corrosion class | C4 | |
| Weight | 2.5t | |
| Dimension(W*D*H) | 1000*1350*2350mm(without hanging ring) | |
| Humidity Range | 0~95%(no condensation) | |
| Maximum Working Altitude | 5000m(>3000m derating) |
.png "314AH1P260S_(3).png")
.png "314AH1P260S_(4).png")
.png "314AH1P260S_(5).png")
.png "314AH1P260S_(6).png")
.png "314AH1P260S_(7).png")
.png "314AH1P260S_(11).png")
.png "314AH1P260S_(12).png")
.png "314AH1P260S_(13).png")
