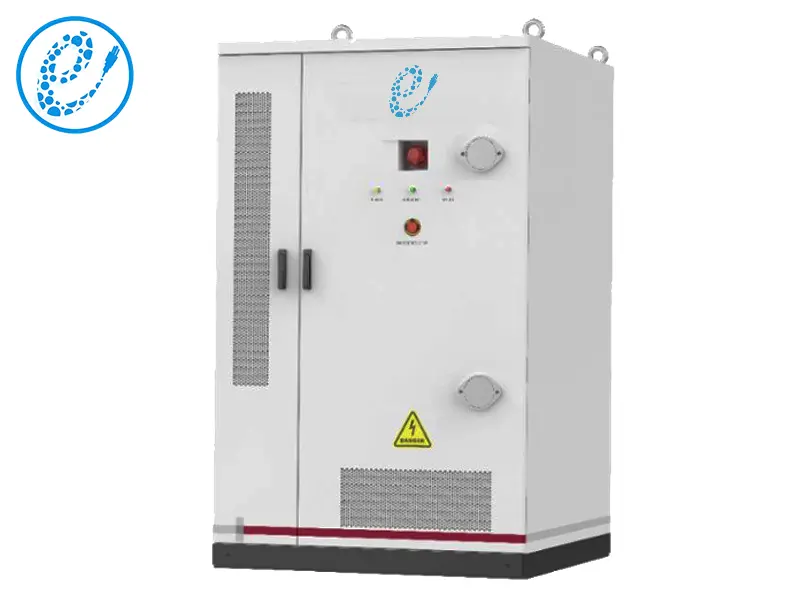

SS130502-832V300A(300AH1P260S)-Liquid Cooling-AC+DC-125KW+250KWh

Name: SS130502-832V300A(300AH1P260S)-Liquid Cooling-AC+DC-125KW+250KWh
Brand: Eco Power Group
Rating: 4.4 (5 reviews)

The 125kW/250kWh outdoor cabinet energy storage system can be connected to the grid and operated off-grid. At the same time, the DCDC configured in the cabinet can be compatible with the DC input of the photovoltaic system. In the energy storage link of smart grid, it can effectively regulate power resources, balance the difference of power consumption between day and night and in different seasons, adjust the surplus and shortage, and guarantee the safety of power grid. It is an important prerequisite for the application of renewable resources and an effective means to realize the intelligent management of power grid.

Get Li Ion Price


DC Battery Parameters
Model	SS130502-832V300A(300AH1P260S)
Number of battery packs	5
Series parallel mode	1P260S
Rated voltage	832V
Energy	249.6kWh
Power	124.8kW
Voltage range	702~936V
Dimensions	（1330±3）×（1350±3）×（2150±5）mm （W×L×H）
Maximum DC current	192A
Standard charging mode	Charge at constant power 124.8kW until voltage reaches 910V or any cell reaches 3.5V, then charge at constant power 62.4kW until cell voltage reaches 936V or any cell reaches 3.6V

PV Input Parameters
Rated voltage (V)	350V
Rated input power(kW)	60kW*2
MPPT voltage range(V)	340-1000V
MPPT Quantity	4*2
Rated Current(A)	180A*2

AC parameters (grid-connected)
Rated power(kW)	125 (@45℃)
Maximum output power(kW)	125 (@45℃)
Maximum continuous output current(A)	182 (@45℃)	AC side
AC access method	Three-phase four-wire
Nominal grid voltage(V)	400
Permissible grid voltage(V)	300~460
Nominal grid frequency(Hz)	50/60
Permissible frequency deviation(Hz)	±2.5
Charge/Discharge conversion time(ms)	<100
Current THD(%)	<3%	Rated power
Power factor range	1.0 Leading–1.0 Lagging
Isolation method	Energy storage cabinet + isolation transformer connected to the grid	Isolation transformer is provided by customers

AC parameters (grid-off)
Nominal output(V)	400
Rated output power(kW)	125 (@45℃)
Overload capacity	1.2times 1 minutes (@45℃)
Nominal output frequency(Hz)	50/60
Voltage THD(%)	<3%	Linear load
Voltage deviation(%)	±2%
Isolation method	Energy storage cabinet + isolation transformer connected to the grid	Isolation transformer is provided by customers

System Parameter
Storage Condition	Storage Temperature	-20~0℃ 40~55℃	Less than three days
		0~40℃	Less than three months
		15~30℃	More than three months
		20~25℃	Over six months, complete charge and discharge maintenance is required
	Storage SOC	20~50%	Fully charged storage is prohibited
General Parameters	Average system power consumption(W)	≈3700
	System efficiency	≥87%
	IP Level	Battery Part IP55 Electrical Part IP54
	Thermal management mode	Liquid Cooling Liquid heating
	Communication Mode	CAN\RS485\Eth\4G
	Fire protection system	Aerosol Cabinet-grade water fire fighting
	Shipment SOC	30%	(25±2)℃
	UPS backup time	30 minutes	12V12Ah*2
	Weight	Approx. 2800kg
Inlet method	Bottom feed
Enviromental Parameter	Humidity	RH≤95%
Enviromental Parameter	Altitude	≤2000m	Derating over 2000m
Standard Requirement	Battery Rack	IEC62619 IEC62477-1 IEC62109 EMC(RED) UN38.3

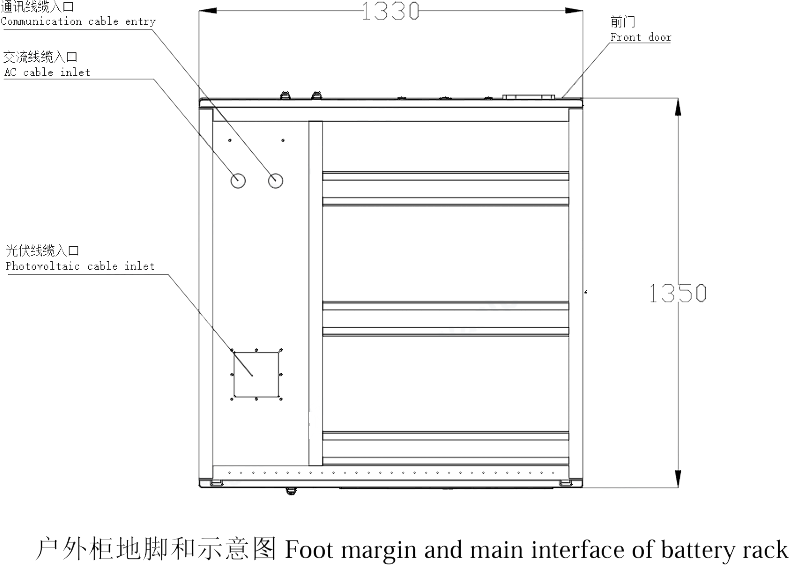

Foot Margin

Layout of the rack

Varied layouts of the rack are presented in the figures below.

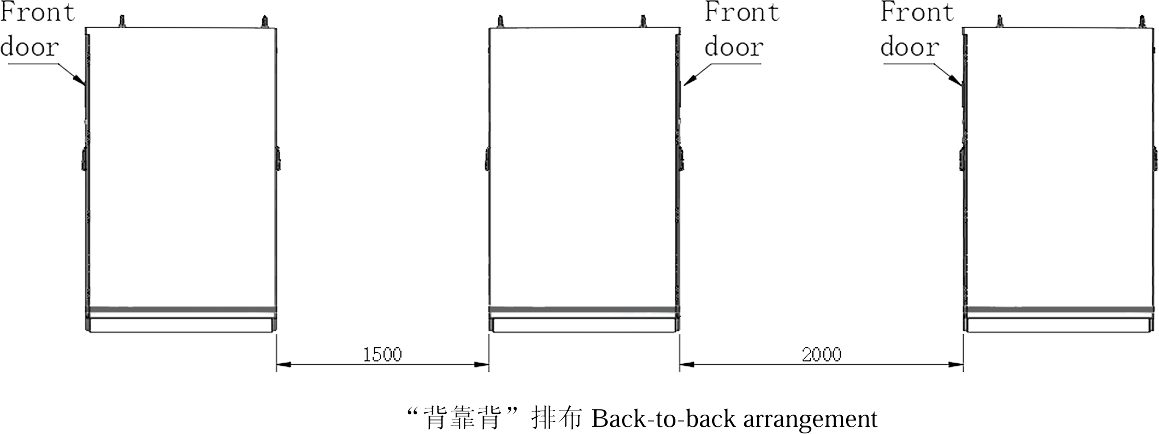

1.Back-to-back arrangement

For back-to-back arrangement, the minimum clearance between racks is 1500mm, and the recommended clearance between the front side of the rack and another rack is 2000mm.

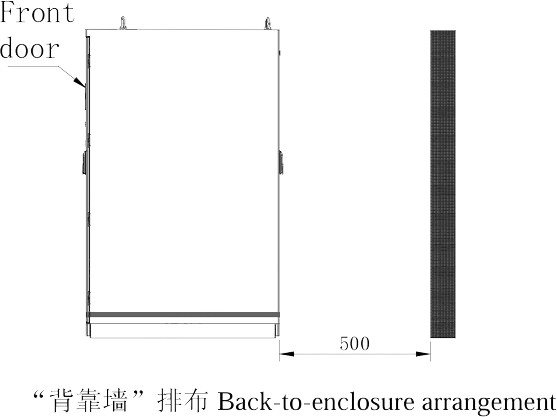

2.Back-to-enclosure arrangement

Back to the wall (or other entity), the left and right sides of the cabinet should be left at least 500mm space for maintenance channel. At least 500mm space should be left at the rear of the cabinet for the cooling air duct and maintenance channel of the liquid cooling unit and PCS. Leave at least 1200mm of space on the front door for maintenance.

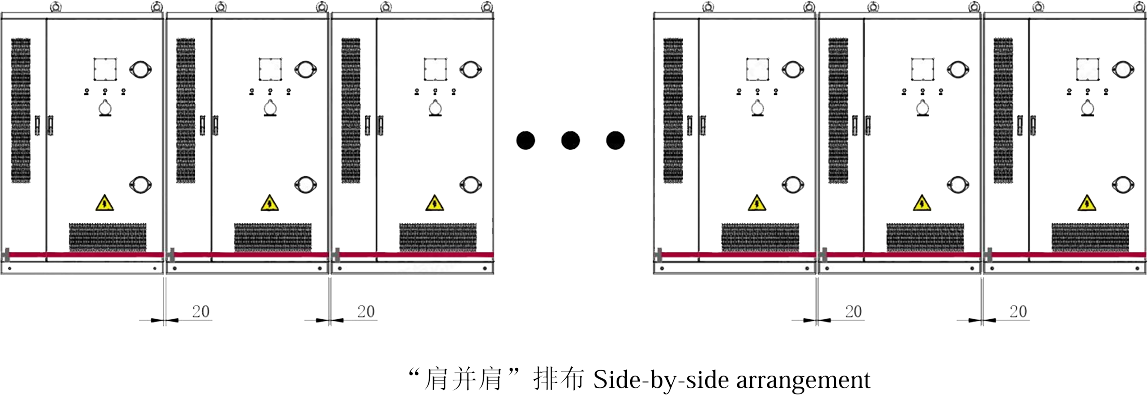

3.Side-by-side arrangement
