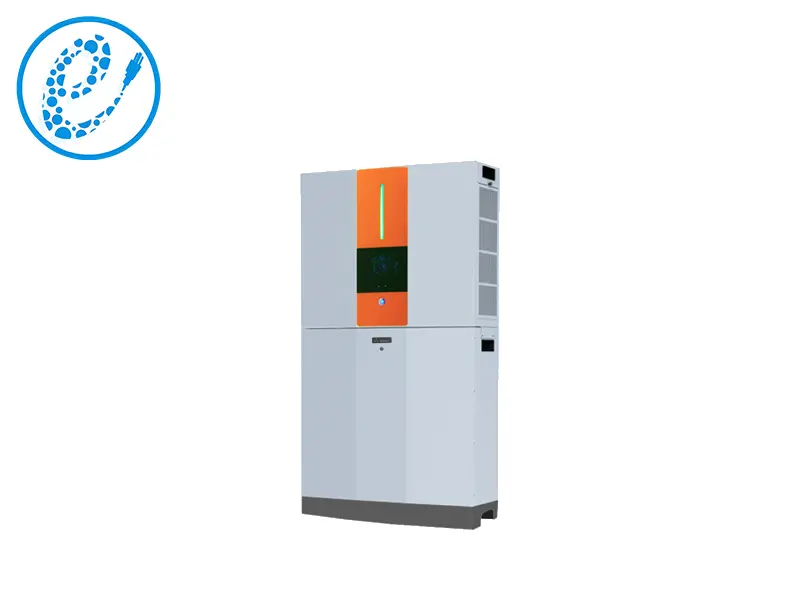

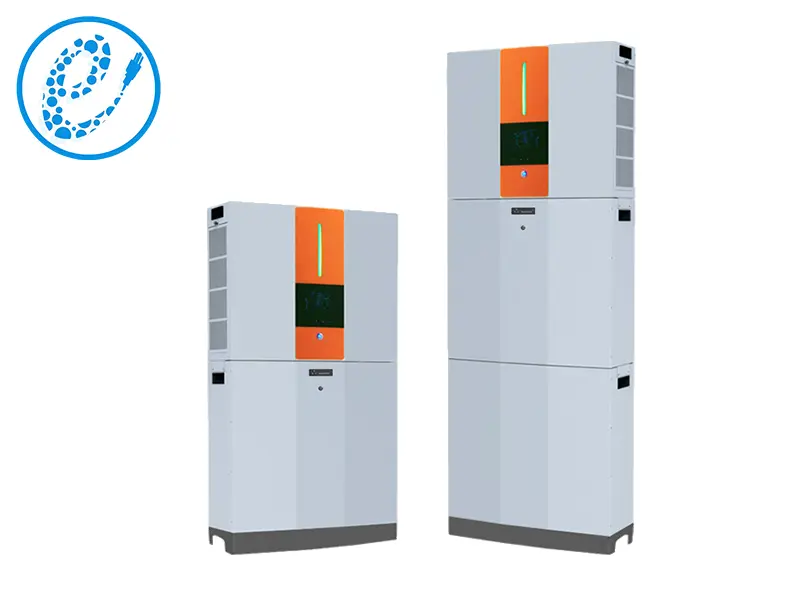

SS12XXXX-51.2V100A(100AH1P16S) This household battery storage is rated at 51.2V and has an energy rating of up to 5kwh.
Designed with convenience in mind, this SS12XXXX-51.2V100A(100AH1P16S） battery pack is ingeniously crafted to be lightweight and portable.
| INVERTER MODEL | 5kw |
| Maximum PV Input Power | 5000W |
| Rated Output Power | 5000W |
| Maximum Charging Power | 1440W |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 116 VDC / 150 VDC |
| MPP Voltage Range | 120 VDC ~ 450 VDC |
| Number of MPP Trackers / Maximum Input Current | 1/1x18A |
| GRID OUTPUT | |
| Nominal Output Voltage | 208/220/230/240 VAC |
| Output Voltage Range | 184 - 264.5 VAC* |
| Max. Output Current | 21.9A* |
| Maximum Conversion Efficiency (DC/AC) | 96% |
| European Efficiency @ Vnominal | 95% |
| AC INPUT | |
| AC Start-up Voltage / Auto Restart Voltage | 120 - 140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 170 -280 VAC |
| Maximum AC Input Current | 40A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 208/220/230/240 VAC |
| Efficiency (DC to AC) | 93% |
| BATTERY CHARGER | |
| Nominal DC Voltage | 48 VDC |
| Maximum Charging Current | 30A |
| PHYSICAL | |
| Dimension, DxWxH (mm) | 210 x 620 x 350 |
| Net Weight (kgs) | 15 |
| STANDARD | |
| Compliance Safety | IEC/EN 62109-1/-2, EN 61000-6-4, EN IEC 61000-6-2 |
| BATTERY MODULE | SS12XXXX-51.2V100A |
| CAPACITY | 5000Wh |
| PARAMETERS | |
| Nominal Voltage | 51.2VDC |
| Full Charge Voltage (FC) | 56V |
| Full Discharge Voltage (FD) | 42V |
| Typical Capacity | 100Ah |
| Max Continuous Discharging Current | 100A |
| Max Discharging Current | 150A at 2S |
| Protection | BMS, breaker |
| Charge Voltage | 56V |
| Charge Current | 20A (0.2C) |
| Maximum Charge Current | 50A (0.5C) |
| Standard Charge Method | 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge currentdecline to<0.05C |
| Inner Resistance | <20m ohm |

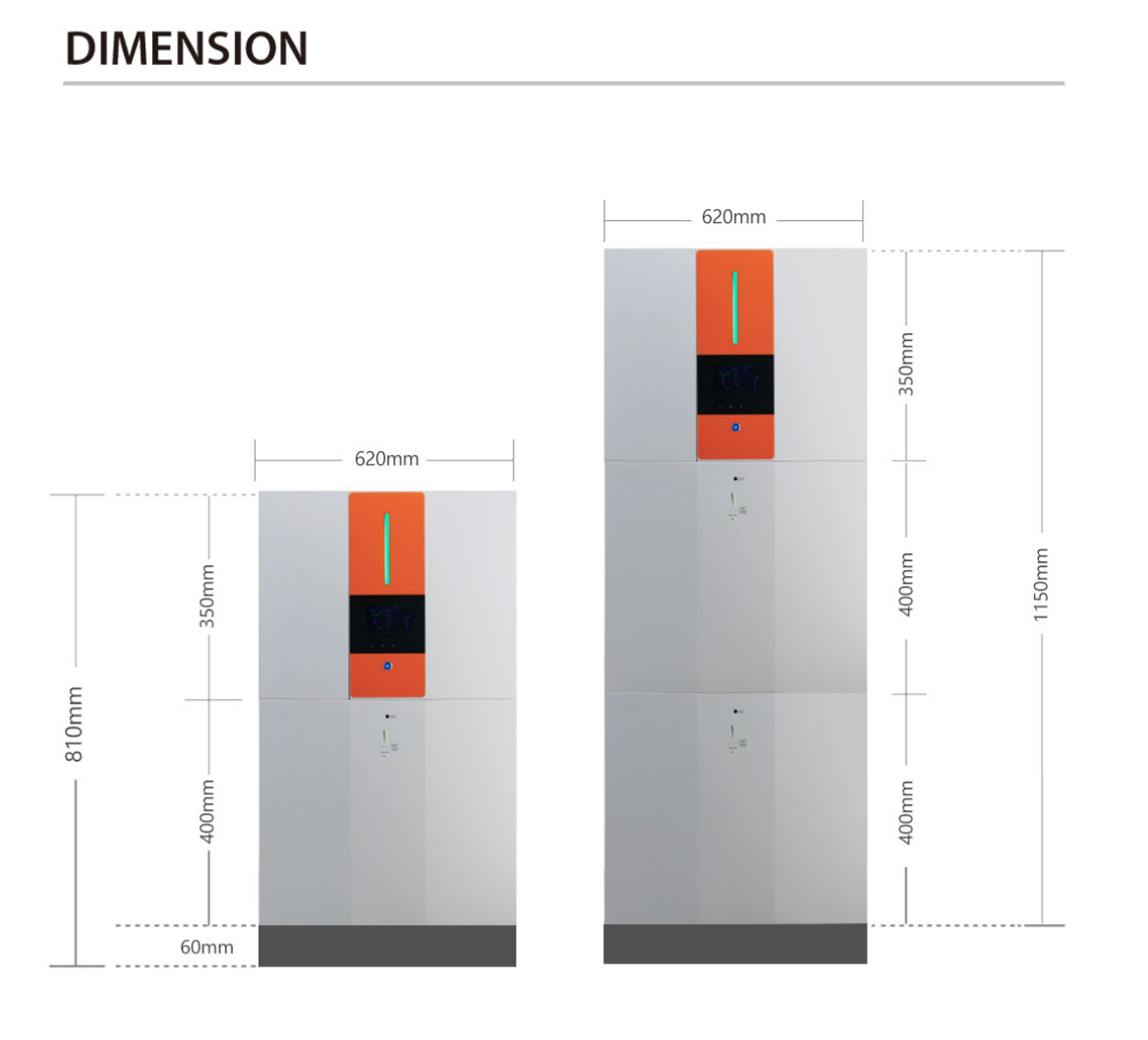

| Dimension, DxWxH (mm) | 210 x 620 x 410 |
| Net Weight (kgs) | 50 (without base,3.2kg for base) |
| STANDARD | |
| Compliance Safety | IEC 62619, EN 61000-6-3, EN 61000-6-1, UN38.3 |
5 kw hybrid solar inverter with 5kwh Lithium-ion battery

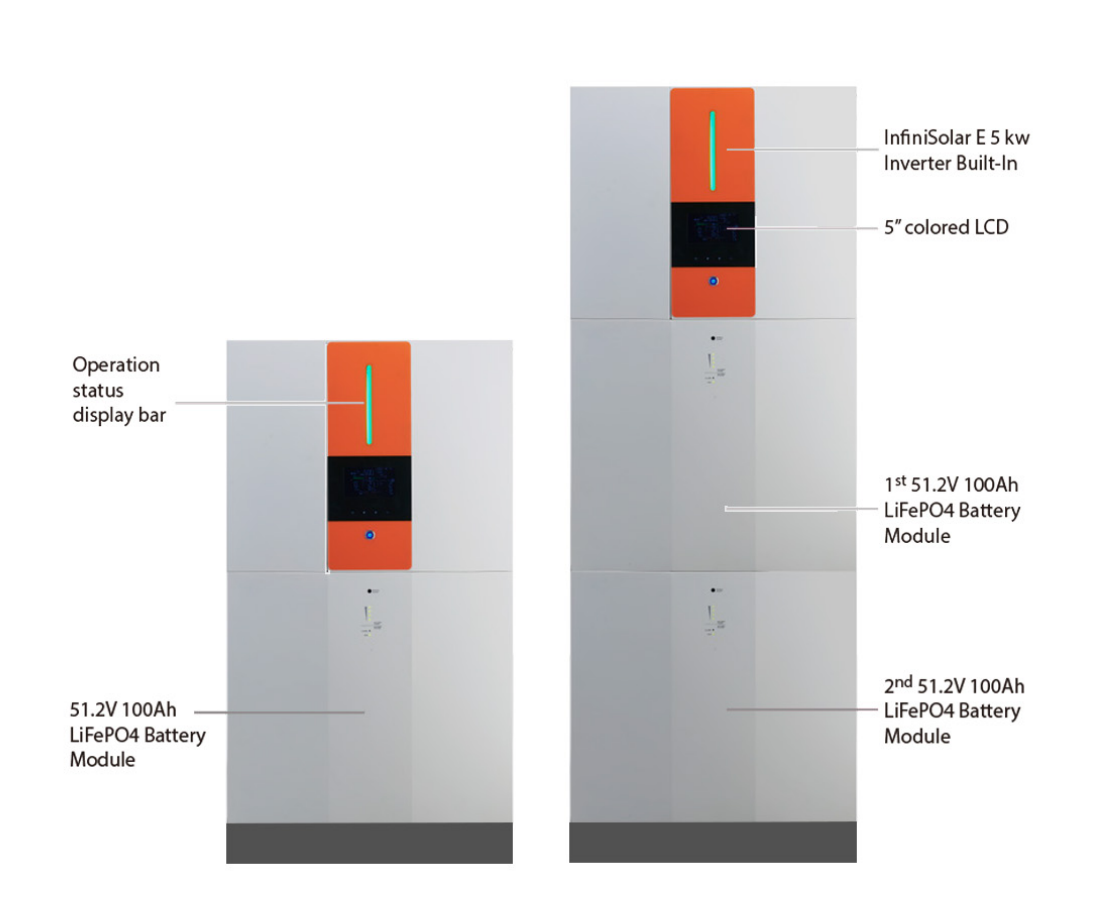

Integrated 5 kw hybrid solar inverter and lithium-ion battery module

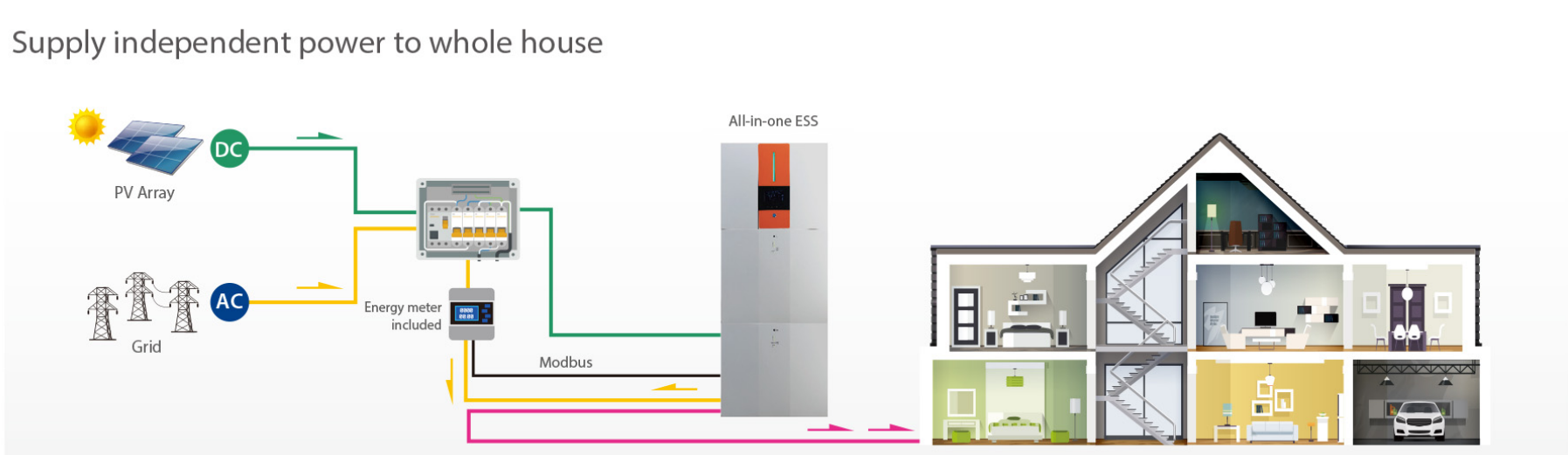

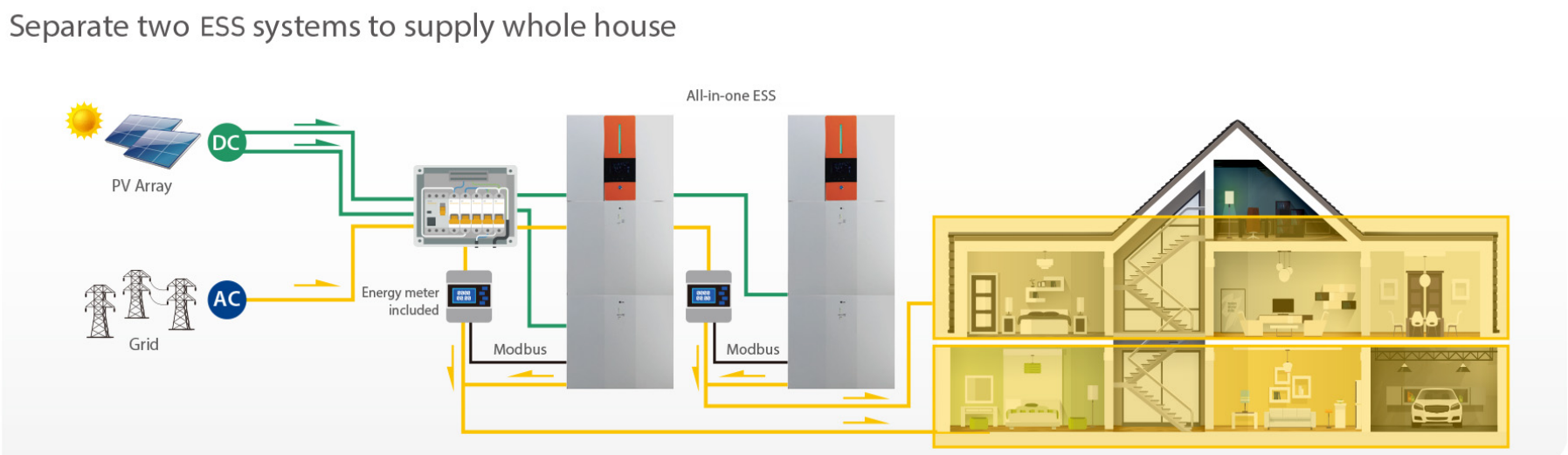

Self-consumption and Feed-back to the Grid
Programmable supply priority for PV, battery or Grid
User-adjustable battery charging current

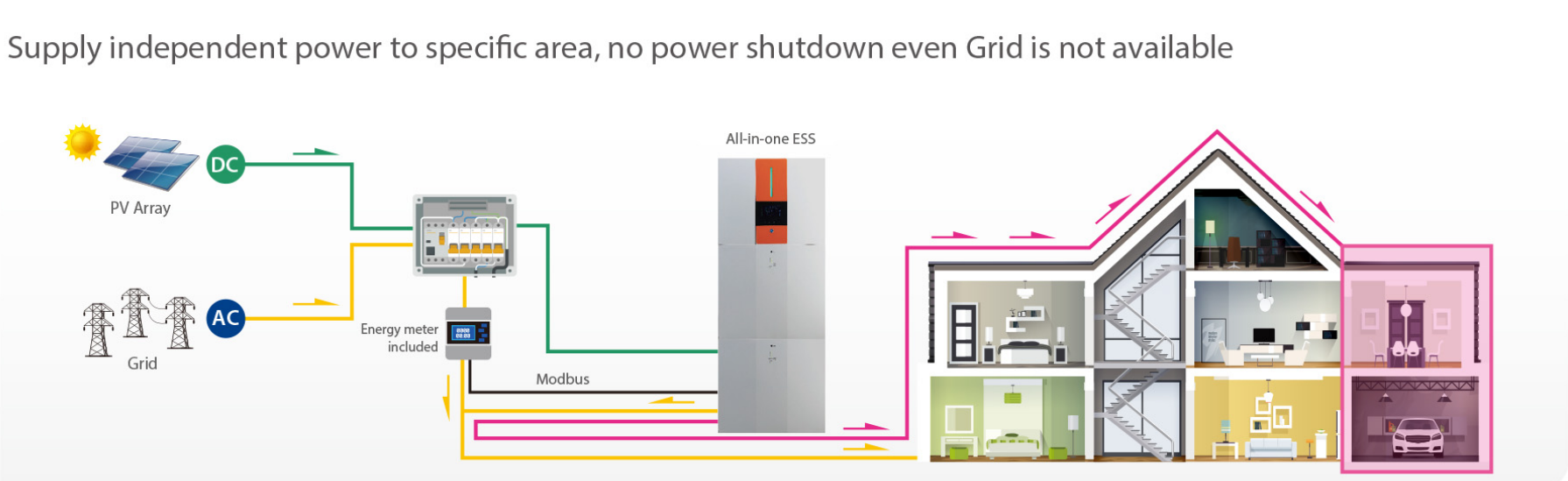

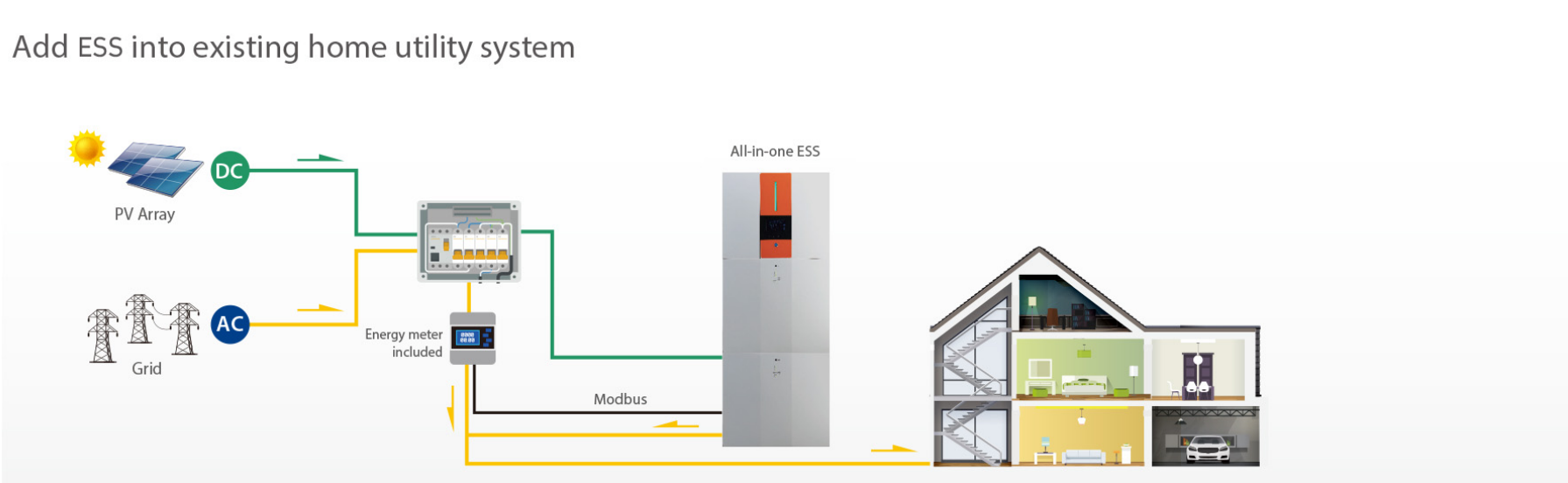

Programmaßkle multiple operation modes: Grid-tie, off-grid and grid-tie with backup
Built-in timer for various mode of on/off operation
Multiple communication for USB, RS232, Modbus, SNMP, GPRS and Wi-Fi
Monitoring software for real-time status display and control
Enhance AC/Solar charger to 100A
Scalable Li-Ion battery expansion
Li-Ion battery life cycle: 8000 cycles at 25 °C
High surge discharging current up to 3C
IP 20
