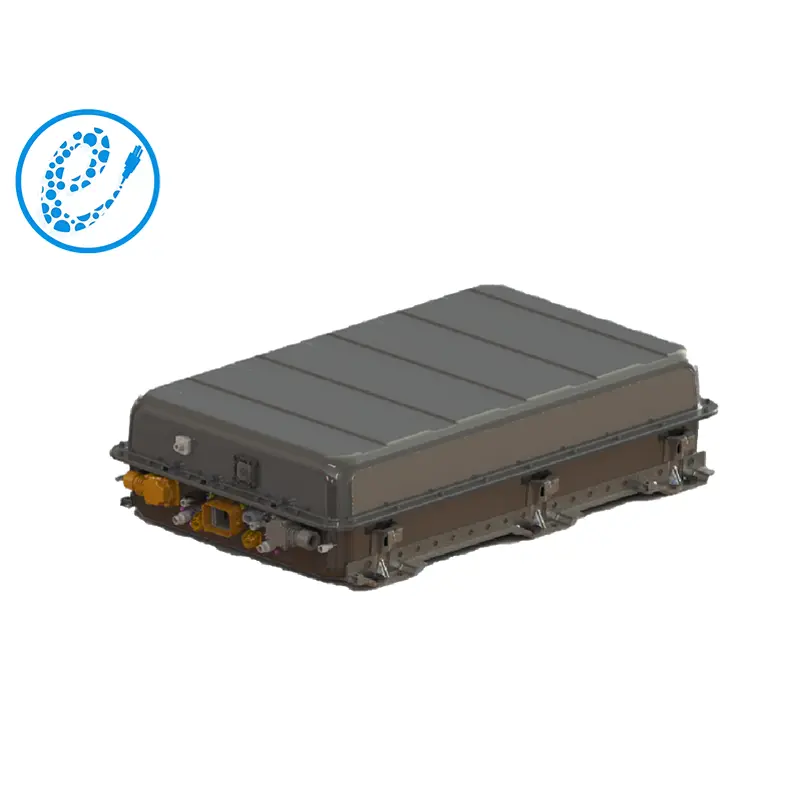

With a rated energy of 27.05kwh and a rated voltage of 270.48V, the PS050605-270.48V100A（100AH1P84S） offers a robust and stable power supply, making it an ideal choice for a wide array of applications. Whether it's renewable energy installations, electric vehicles, or critical backup systems, this rechargeable lithium battery packs ensure uninterrupted and reliable performance, empowering your projects to thrive.
| No. | Items | EP-LFP 100Ah STADARD PACK | Note | |
| PS050605-270.48V100A | ||||
| 100AH1P84S | ||||
| 1 | Nominal voltage(V) | 270.48 | ||
| 2 | Operating voltage(V) | min | 210 | |
| 3 | max | 306.6 | ||
| 4 | Cell Configuration | 1P84S | ||
| 5 | Nominal energy（KWh ） | 27.05 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 100 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | ≤100 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | ≤100 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1020 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 240 | |||
The battery box is currently assembled with a full range of VDA series batteries, which can be adapted to most commercial vehicle models on the market (bus, heavy truck, mining dump, construction machinery, etc.)
.png "ps050605_(1).png")
.png "ps050605_(2).png")
.png "ps050605_(3).png")
.png "ps050605_(4).png")
.png "ps050605_(5).png")
.png "ps050605_(6).png")
.png "ps050605_(7).png")
