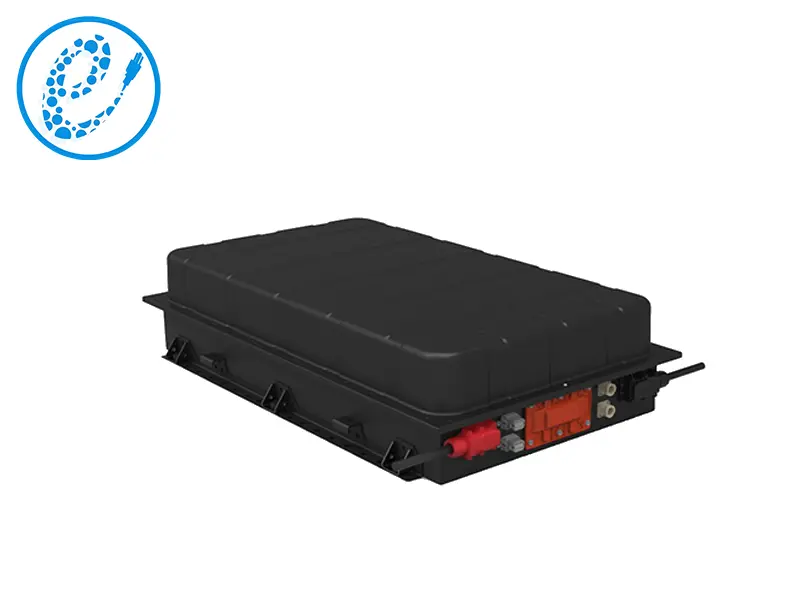

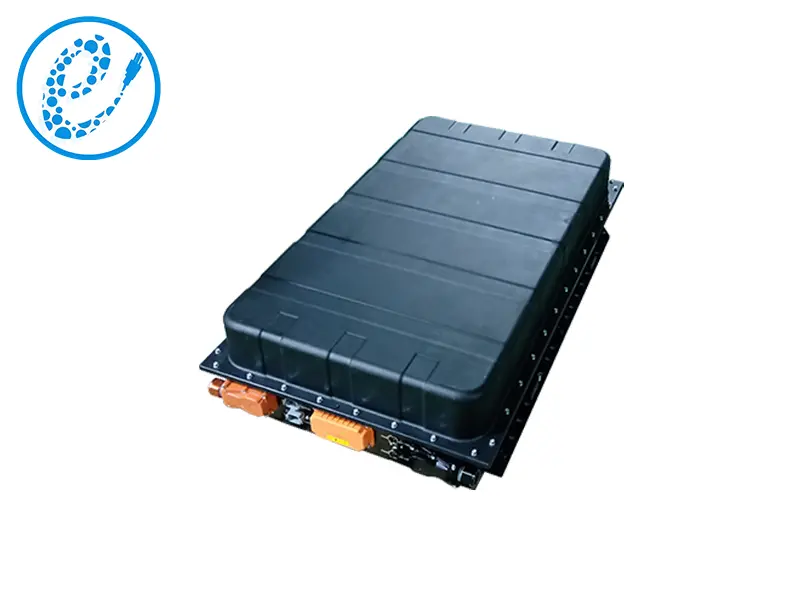

The PC132902-115.92V280A (280Ah1P36S) features a rated voltage of 115.92V and a rated capacity of 280Ah, so the battery can provide you with approximately 32.46kwh of energy, making it an ideal power source for a wide range of equipment and devices.

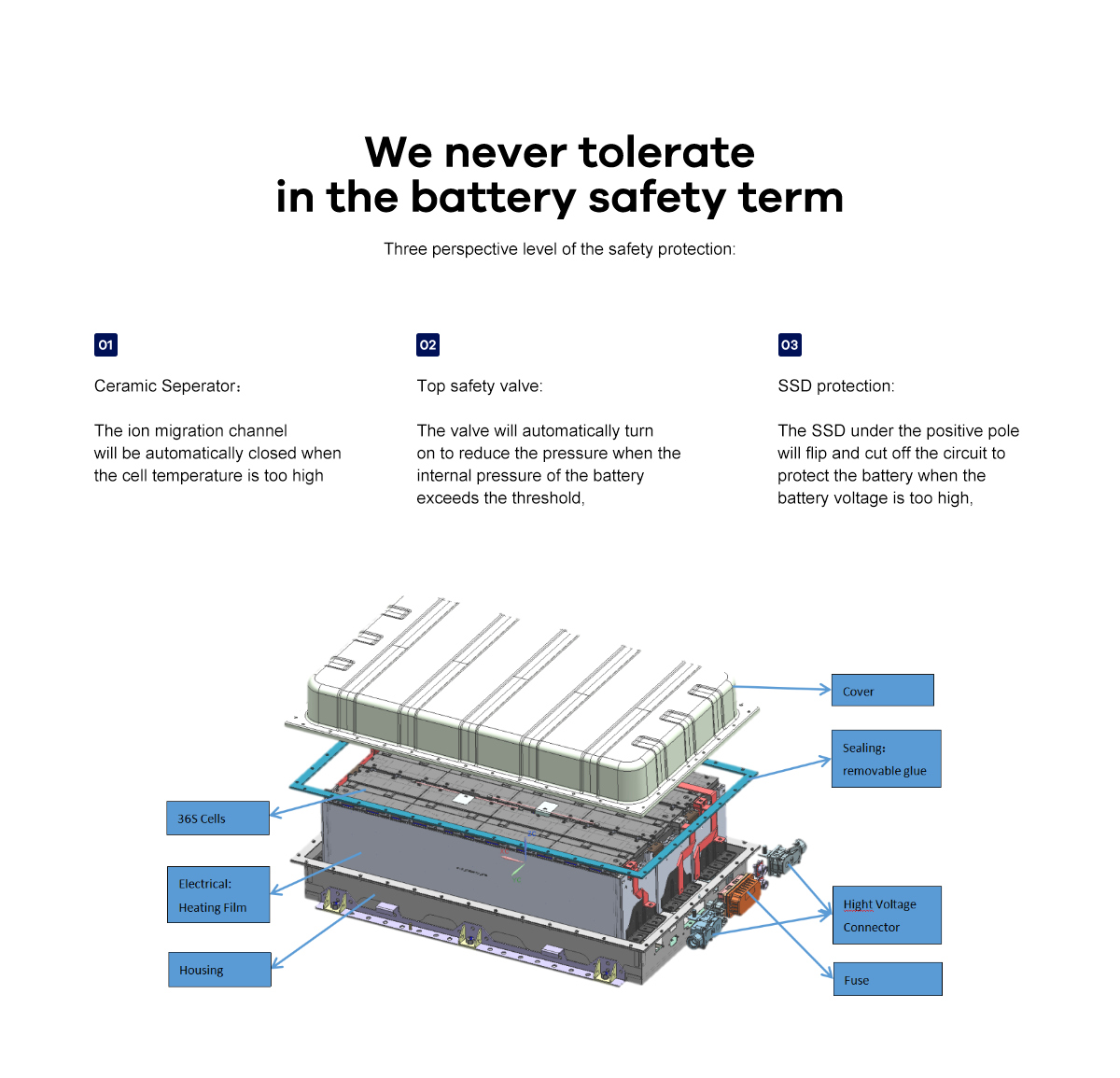

The battery is also equipped with comprehensive safety features including overcharge protection, over discharge protection, short circuit protection and temperature control. These features protect the battery and its surroundings from potential risks.
| No. | Items | EP-LFP 280Ah STADARD PACK | Note | |
| PC132902-115.92V280A | ||||
| 280AH1P36S | ||||
| 1 | Nominal voltage(V) | 115.92 | ||
| 2 | Operating voltage(V) | min | 90 | |
| 3 | max | 131.4 | ||
| 4 | Cell Configuration | 1P36S | ||
| 5 | Nominal energy（KWh ） | 32.1 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 280 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 280 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 280 | 25±2℃ | |
| 9 | SOC operating range（%） | 20~100 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | Battery pack total positive and negative to ground | |
| 11 | cooling method | Natural Cooling | ||
| 12 | Weight（kg） | 270 | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1068 | ||
| Dimension B (mm) | 630 | |||
| Dimension H (mm) | 240 | |||
