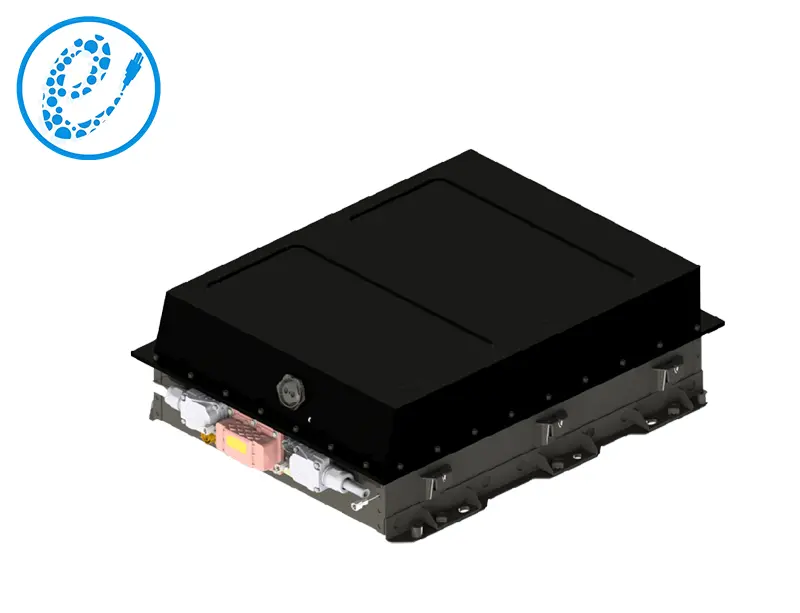

PS050605-106.26V230A（230AH1P33S）lithium battery module pack is currently assembled with a full range of VDA series cells, and is a battery box developed specifically for special models such as sightseeing cars and field cars.
| No. | Items | EP-LFP 230Ah STADARD PACK | Note | |
| PS050605-106.26V230A | ||||
| 230AH1P33S | ||||
| 1 | Nominal voltage(V) | 106.26 | ||
| 2 | Operating voltage(V) | min | 82.5 | |
| 3 | max | 120.45 | ||
| 4 | Group mode | 1P33S | ||
| 5 | Nominal energy（KWh ） | 24.44 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 230 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 230 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 230 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 806 | ||
| Dimension B (mm) | 635 | |||
| Dimension H (mm) | 240 | |||
The battery box is currently assembled with a full range of VDA series cells, and is a battery box developed specifically for special models such as sightseeing cars and field cars.
.png "ps050605_(1).png")
.png "ps050605_(2).png")
.png "ps050605_(3).png")
.png "ps050605_(4).png")
.png "ps050605_(5).png")
.png "ps050605_(6).png")
.png "ps050605_(7).png")
