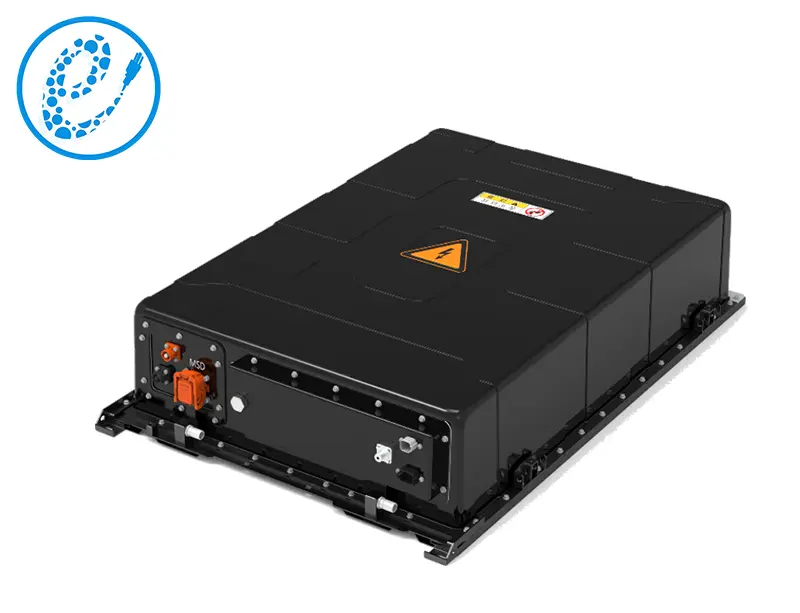

PS131502-166.4V280A(280AH1P52S) utilizes 280Ah LiFePO4 cells arranged in a 1P52S configuration, delivering a nominal voltage of 166.4V. Designed for versatile applications, it offers high energy density, stable performance, and long lifecycle, making it ideal for energy storage systems, electric vehicles, and industrial backup power solutions.
.png "280AH1P52S_(1).png")
| No. | Items | EP-LFP280Ah STANDARD PACK | Note | |
| PS131502-166.4V280A | ||||
| 280AH1P52S | ||||
| 1 | Nominal voltage(V) | 166.4 | ||
| 2 | Operating voltage(V) | min | 130 | T＞0℃ |
| 3 | max | 189.8 | ||
| 4 | Nominal capacity(Ah) | 280 | ||
| 5 | Nominal energy（KWh ） | 46.592 | ||
| 6 | Cell Configuration | 1P52S | ||
| 7 | Maximum Charging Power | 0.5P | ||
| 8 | Maximum Discharging Power | 0.5P | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Module cooling method | Liquid cooling | ||
| 12 | Module heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Protection level | IP67 | ||
| 15 | Weight | 320±10kg | ||
| 16 | Dimension L （mm） | 1140±5 | ||
| Dimension B （mm） | 790±5 | |||
| Dimension H （mm） | 245±5 | |||
.png "280AH1P52S_(3).png")
.png "280AH1P52S_(4).png")
.png "280AH1P52S_(5).png")
.png "280AH1P52S_(6).png")
.png "280AH1P52S_(7).png")
.png "280AH1P52S_(8).png")
.png "280AH1P52S_(9).png")
.png "280AH1P52S_(11).png")
