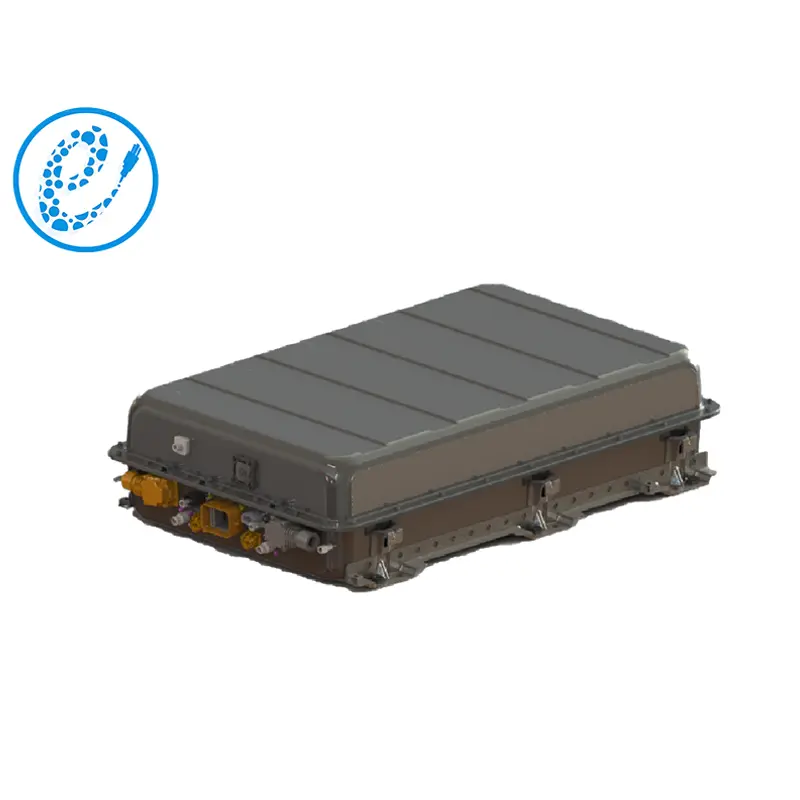

PS050605-202.86V125A (125AH1P63S) consists of 63 cells connected in series with a rated voltage of 202.86 V. Compared to modules, the Li-Ion battery pack optimises energy distribution and improves efficiency and performance. It minimises energy loss and extends the overall service life of the battery. Its versatility and adaptability make it the first choice for a wide range of commercial and industrial renewable energy needs.
| No. | Items | EP-LFP 125Ah STADARD PACK | Note | |
| PS050605-202.86V125A | ||||
| 125AH1P63S | ||||
| 1 | Nominal voltage(V) | 202.86 | ||
| 2 | Operating voltage(V) | min | 157.5 | |
| 3 | max | 229.95 | ||
| 4 | Cell Configuration | 1P63S | ||
| 5 | Nominal energy（KWh ） | 25.36 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 125 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 125 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 125 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1020 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 220 | |||
The battery box is currently assembled with a full range of VDA series batteries, which can be adapted to most commercial vehicle models on the market (bus, heavy truck, mining dump, construction machinery, etc.)
