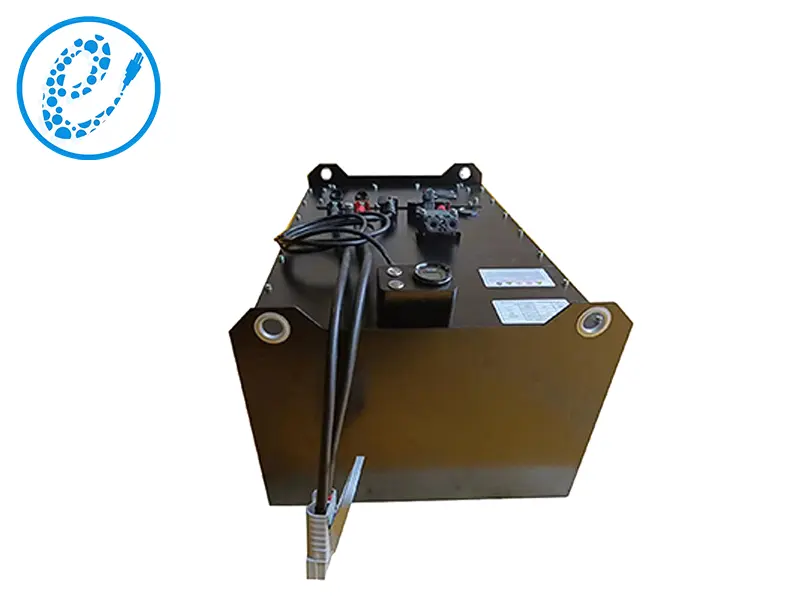

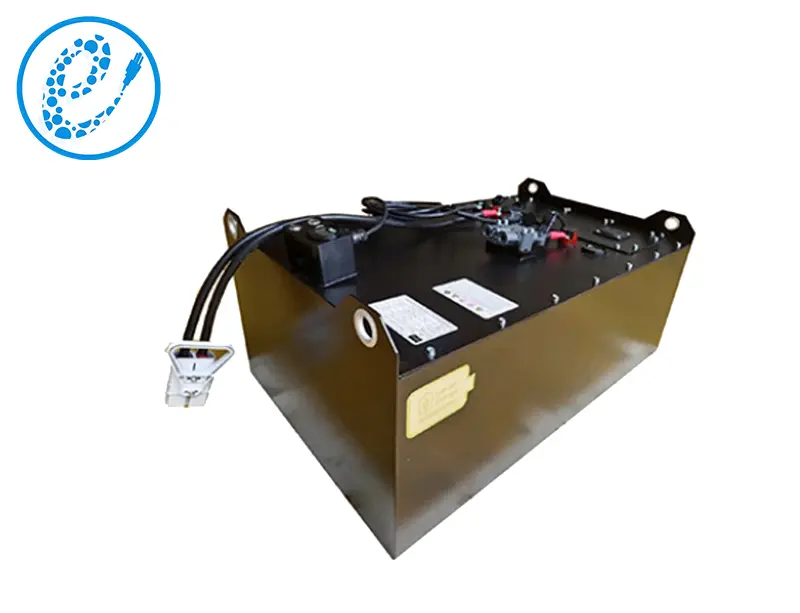

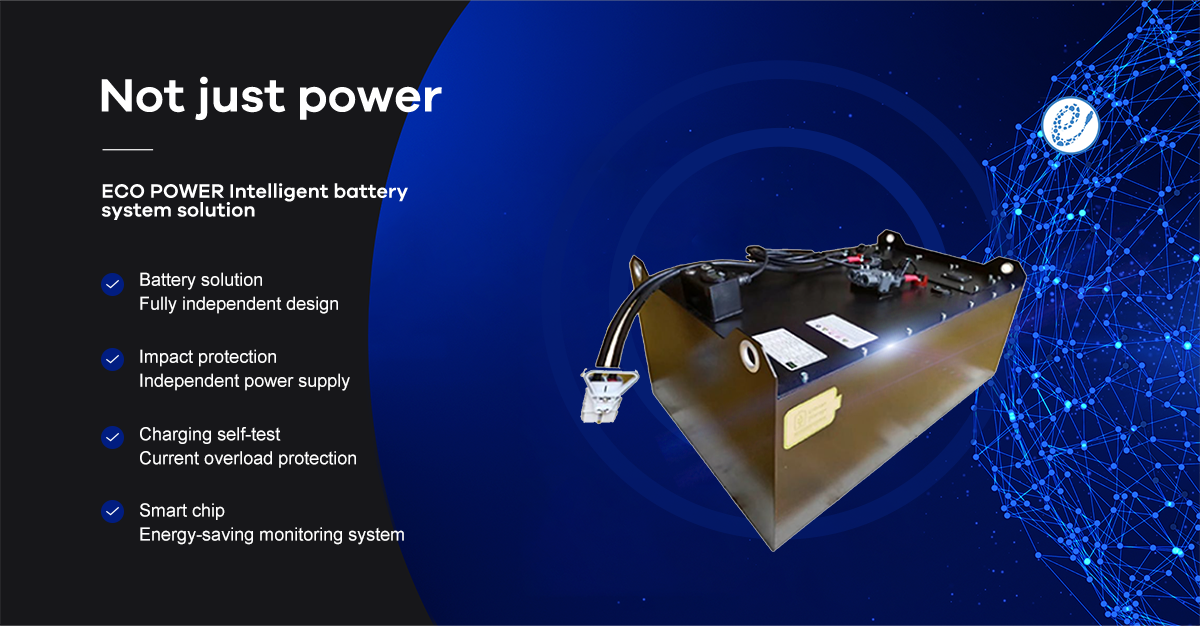

PS020509-51.2V412A (206AH2P16S) is a 2-parallel, 16-series forklift battery pack with reliable, vibration-resistant construction. With a rated energy of 21.09kWh and a rated voltage of 51.2V, it is suitable for a wide range of electric forklift models. If you are looking for a reliable forklift battery pack power storage solution, PS020509-51.2V412A (206AH2P16S) will be your optimal choice.
| Item | Parameters | |
| PS020509-51.2V412A（206AH2P16S）Battery Pack | Nominal Voltage | 51.2V |
| Rated Capacity（@ 20±5℃ 0.3C） | 412Ah | |
| Nominal Energy（@ 20±5℃ 0.3C/0.3C100%DOD） | ≈21.09kWh | |
| Maximal Continuous Charging Current | 200A | |
| Maximal Continuous Discharging Current | 200A | |
| Maximum pulse discharge current（≤10s） | 550A | |
| Battery Configuration | 32 series of 3.2V206Ah cell | |
| Battery Operating Voltage Range | 40～58.4V | |
| Operating Temperature Range(Charge) | 0～55℃ | |
| Operating Temperature Range(Discharge) | -20～60℃ | |
| Recommended Operating Range of SOC | 20%～100% | |
| SOC Requirement for long period idle and storage | ≈30% SOC | |
| Dimension | ≈800mm*530mm*450mm(W*D*H) | |
| Weight | ≈230kg | |
| Communication methods | RS485 | |
