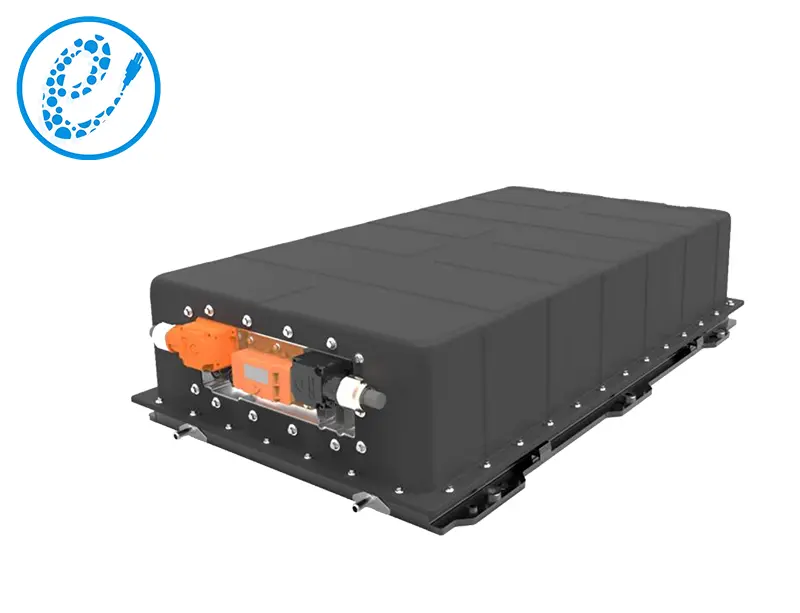

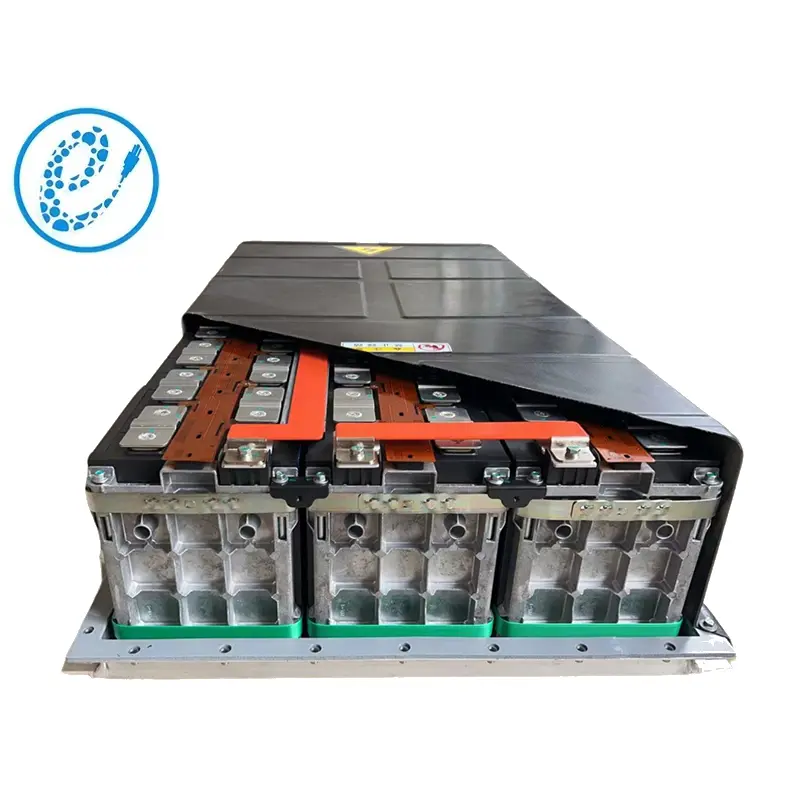

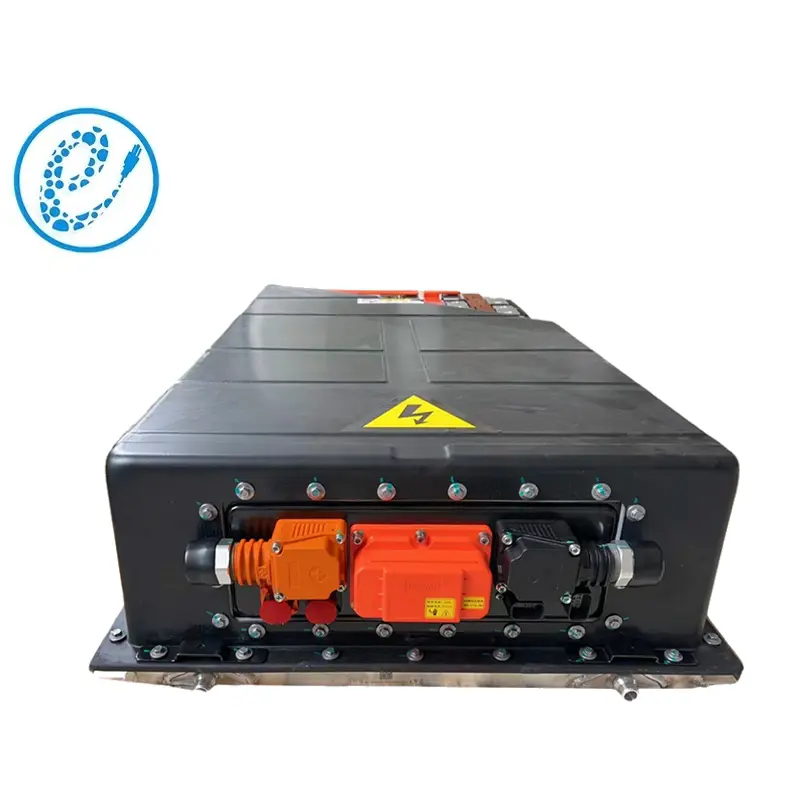

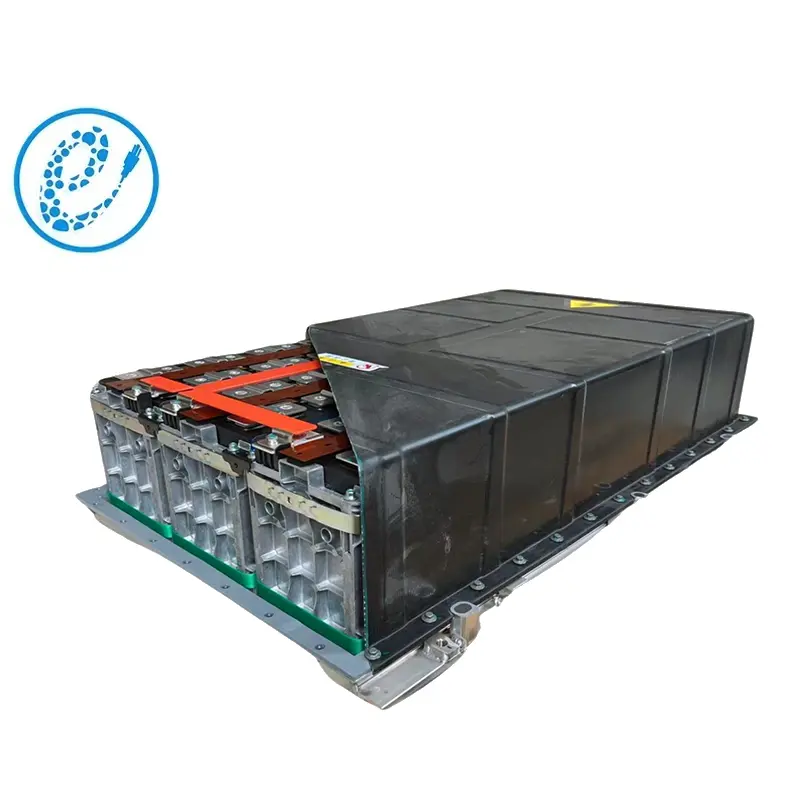

PC132902-154.56V228A(228AH1P48S) is a 1 parallel 48 strings lithium battery liquid-cooled pack with reliable and vibration resistant structure. Rated energy is 35.24kwh and rated voltage is 154.56V.
Whether it's for electric vehicles, heavy machinery, or energy storage systems, this lithium battery power pack delivers reliable and continuous power, enabling optimal performance even in rigorous conditions.
.png "pc132902-154_(1).png")
| No. | Items | EP-LFP 228Ah STADARD PACK | Note | |
| PC132902-154.56V228A | ||||
| 228AH1P48S | ||||
| 1 | Nominal voltage(V) | 154.56 | ||
| 2 | Operating voltage(V) | min | 124.8 | |
| 3 | max | 168 | ||
| 4 | Cell Configuration | 1P48S | ||
| 5 | Nominal energy（KWh ） | 35.24 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 228 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 228 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 228 | 25±2℃ | |
| 9 | SOC operating range（%） | 20~100 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | Battery pack total positive and negative to ground | |
| 11 | cooling method | Liquid cooling | ||
| 12 | Weight（kg） | 225 | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1060 | ||
| Dimension B (mm) | 630 | |||
| Dimension H (mm) | 240 | |||
.png "pc132902-154_(3).png")
.png "pc132902-154_(4).png")
.png "pc132902-154_(5).png")
.png "pc132902-154_(6).png")
.png "pc132902-154_(7).png")
.png "pc132902-154_(11).png")
.png "pc132902-154_(12).png")
.png "pc132902-154_(13).png")
