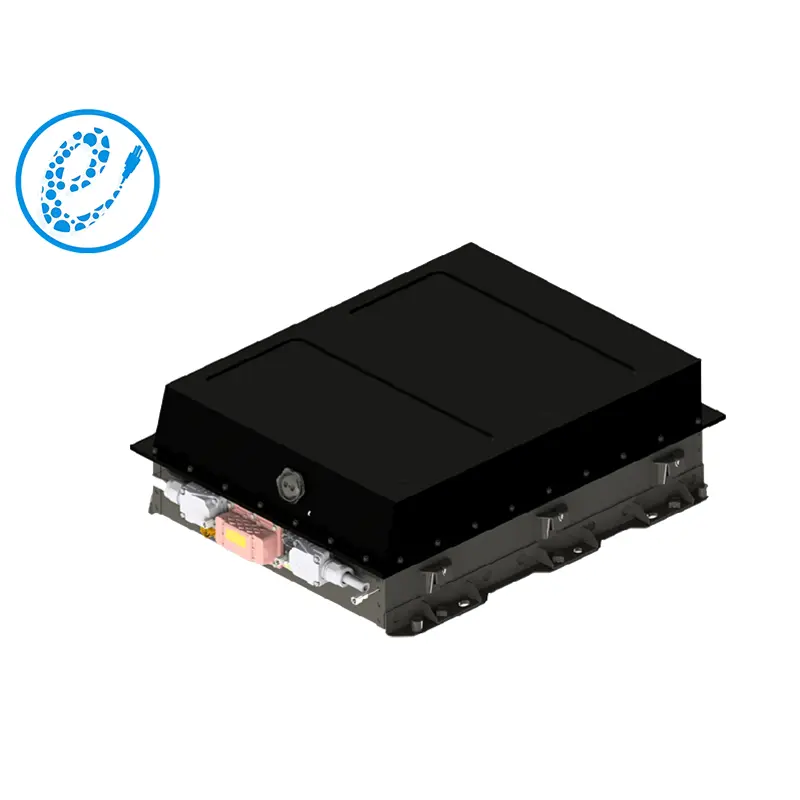

PS050605-154.56V125A (125AH1P48S) consists of 48 series-connected cells with a rated energy of 19.32kwh and a rated voltage of 154.56V. It is a battery pack designed to meet the various needs of modern power applications. Compared with lithium battery modules, this kind of lithium battery pack has higher safety performance, better overall function and higher degree of integration.
Whether it is for commercial, industrial or domestic energy storage, it can provide your project with stable performance and ensure smooth operation.
| No. | Items | EP-LFP 125Ah STADARD PACK | Note | |
| PS050605-154.56V125A | ||||
| 125AH1P48S | ||||
| 1 | Nominal voltage(V) | 154.56 | ||
| 2 | Operating voltage(V) | min | 120 | |
| 3 | max | 175.2 | ||
| 4 | Cell Configuration | 1P48S | ||
| 5 | Nominal energy（KWh ） | 19.32 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 125 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 125 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 125 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 805 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 240 | |||
The battery box is currently assembled with a full range of VDA series cells, and is a battery box developed specifically for special models such as sightseeing cars and field cars.
.png "ps050605_(1).png")
.png "ps050605_(2).png")
.png "ps050605_(3).png")
.png "ps050605_(4).png")
.png "ps050605_(5).png")
.png "ps050605_(6).png")
.png "ps050605_(7).png")
