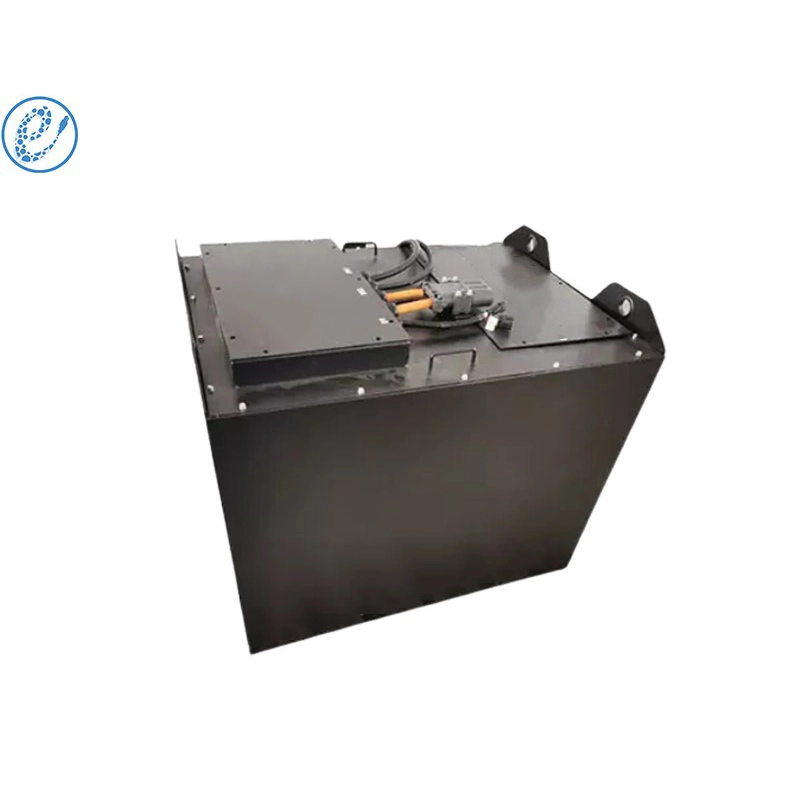

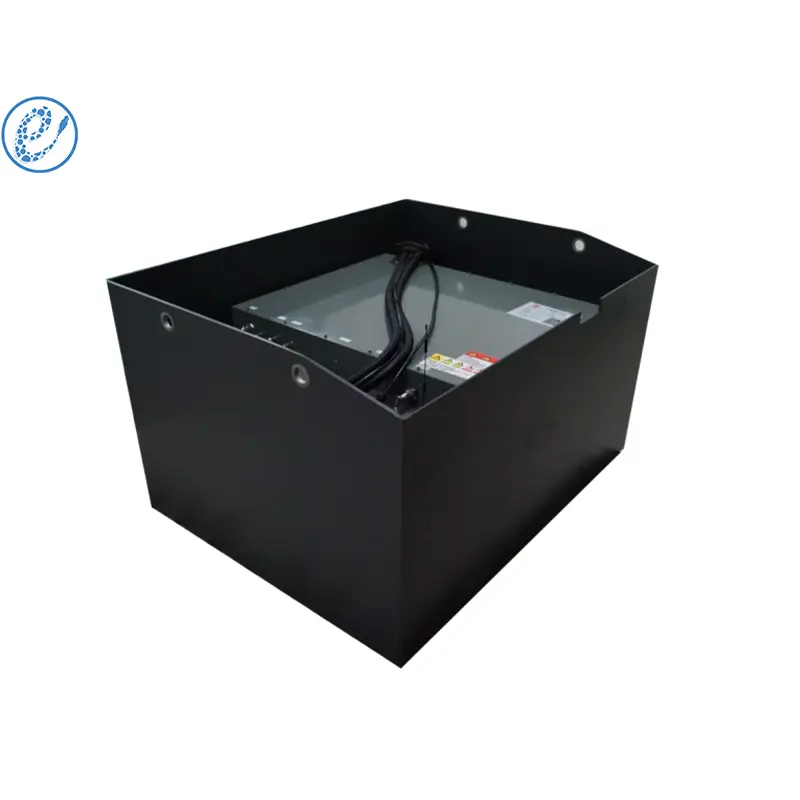

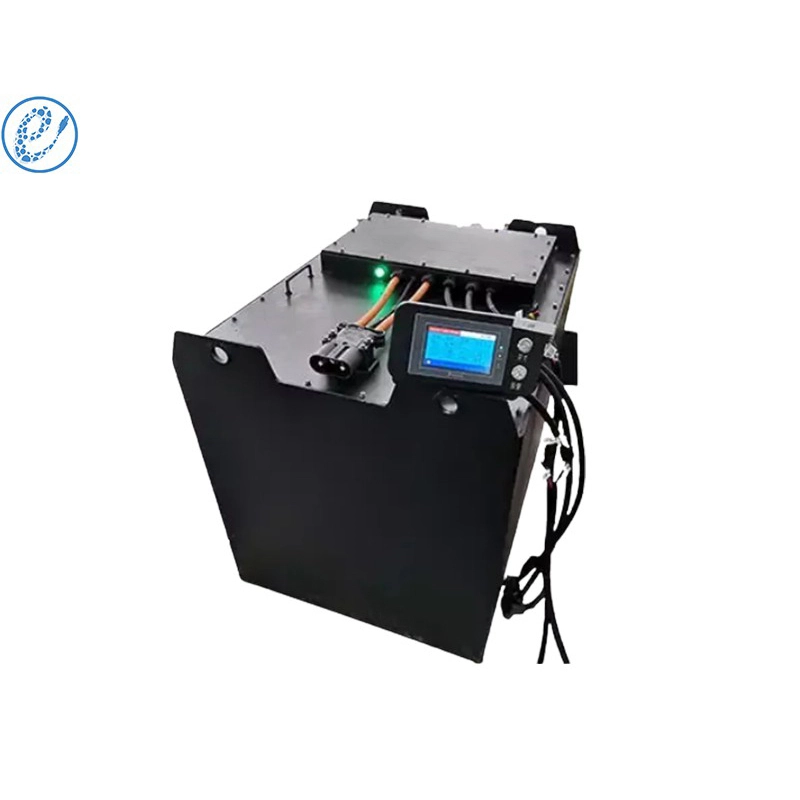

With a capacity of 23.55kWh, the PC151605-51.2V460A (230AH2P16S) forklift battery pack delivers a stable and consistent power output, ensuring optimum efficiency and functionality in demanding situations.
Safety is paramount in every battery we produce and this forklift battery pack is no exception. It is equipped with an advanced battery management system and robust protection mechanisms to ensure reliable operation while reducing the risk of overcharging, overheating and other potential hazards.

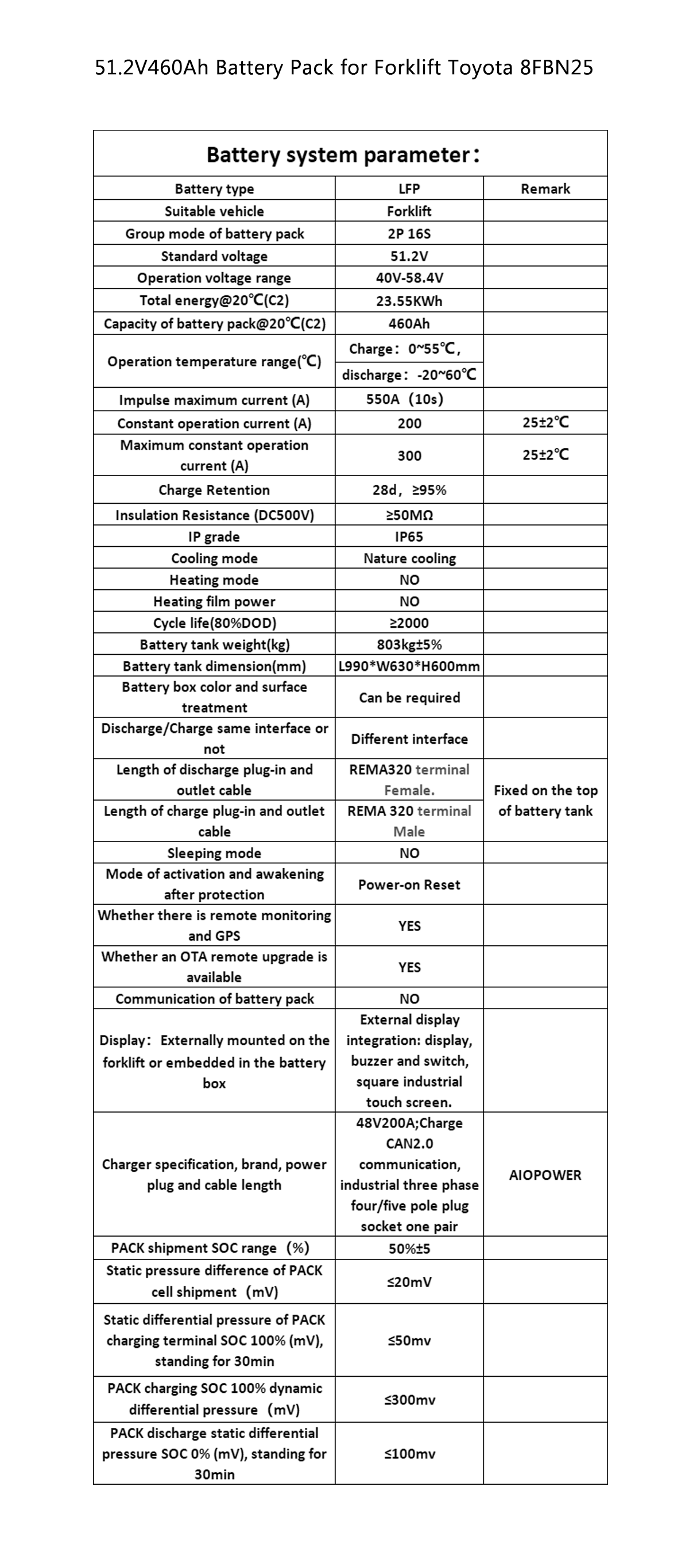

Item | Parameters | |
SC151605-51.2V460A （230AH2P16S） Battery Pack | Nominal Voltage | 51.2V |
Rated Capacity（@ 20±5℃ 0.3C） | 460Ah | |
Nominal Energy（@ 20±5℃ 0.3C/0.3C 100%DOD） | ≈23.552kWh | |
Maximal Continuous Charging Current | 200A | |
Maximal Continuous Discharging Current | 300A | |
Maximum pulse discharge current（≤10s） | 550A | |

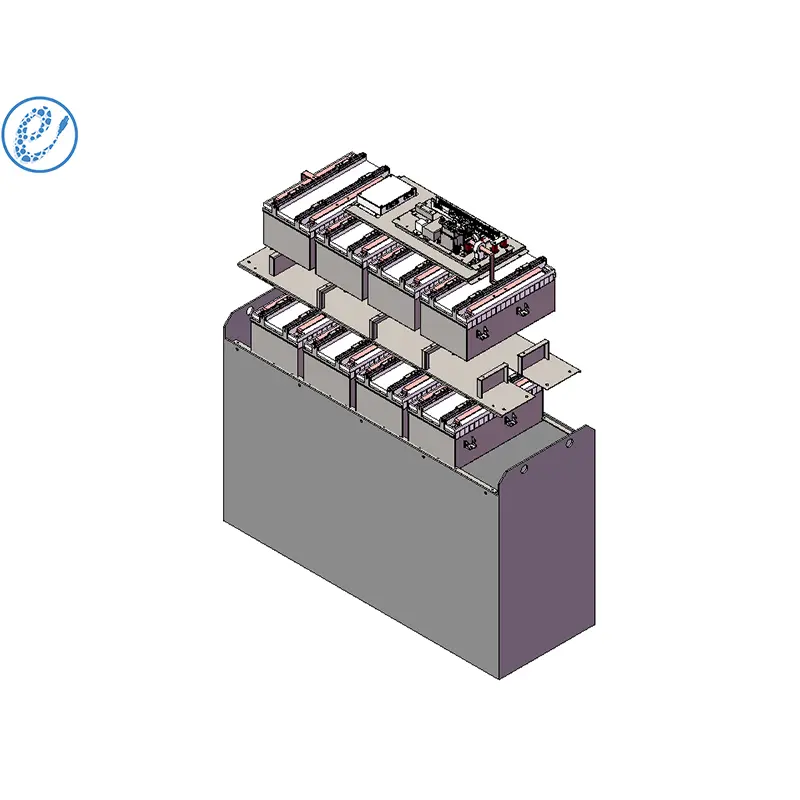

Battery Configuration | 2 parallel 16 series of 3.2V230Ah cell | |
Battery Operating Voltage Range | 40～58.4V | |
Operating Temperature Range(Charge) | 0～55℃ | |
Operating Temperature Range(Discharge) | -20～60℃ | |
Recommended Operating Range of SOC | 20%～100% | |
SOC Requirement for long period idle and storage | ≈30% SOC | |

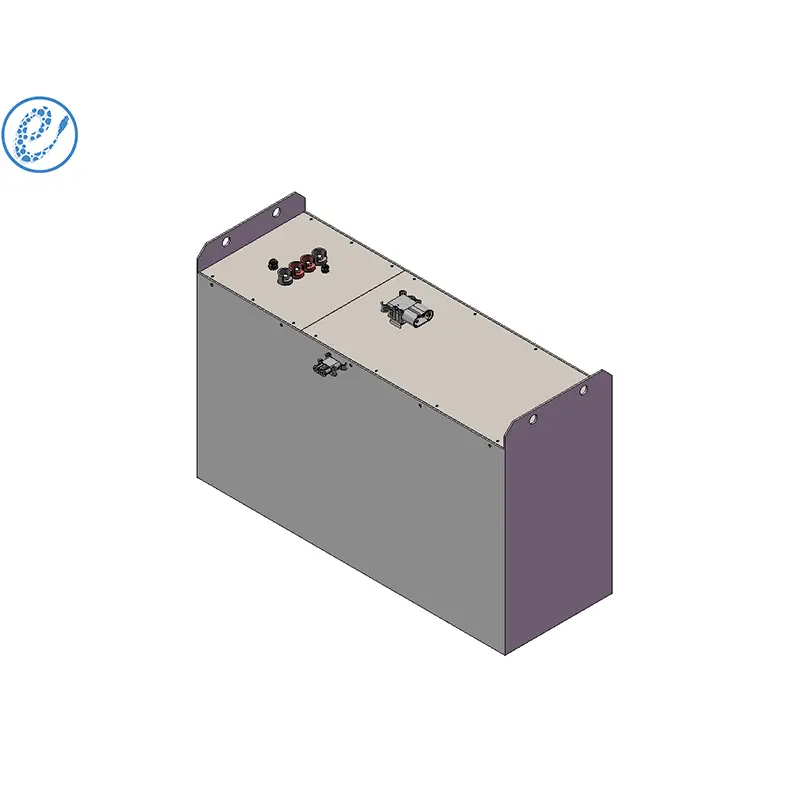

Dimension | ≈970mm*560mm*405mm(W*D*H) | |
Weight | ≈230kg | |
Communication methods | RS485 | |
