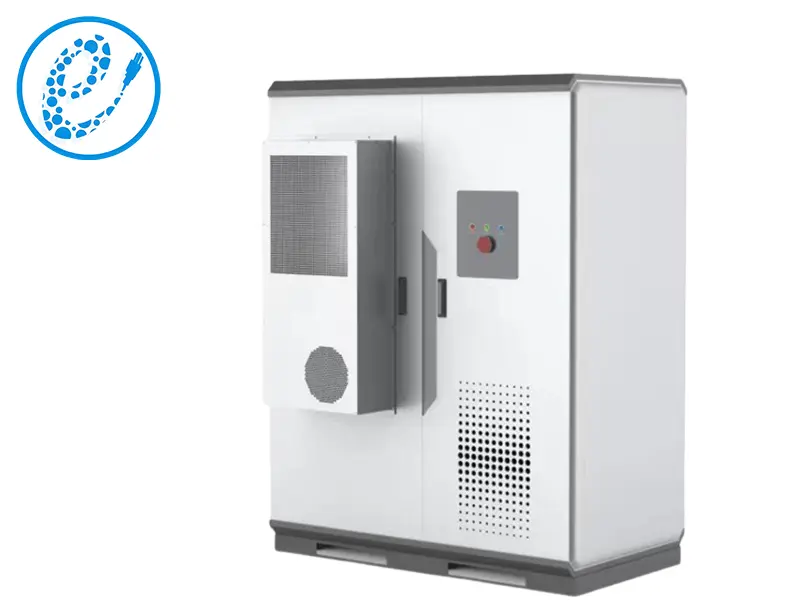

SS12XXXX-768V280A (280Ah1P240S) battery storage system consists of 240 cells connected in series with a rated energy of 215KWh, a rated voltage of 768V, and a rated capacity of 280Ah. This battery is mainly used for industrial and commercial energy storage, and it adopts an advanced liquid-cooling system, which ensures that it can provide long-lasting power support for your equipment and systems!

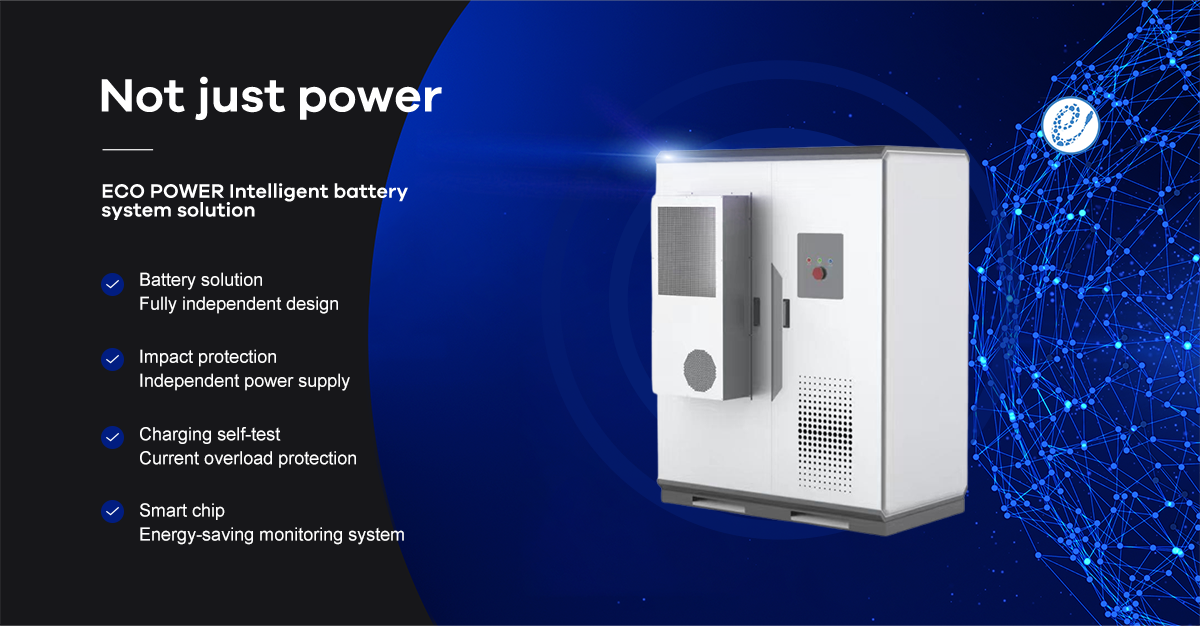

_01.png "SS12XXXX-768V280A(280Ah1P240S)_01.png")
| Product Model | SS12XXXX-768V280A(280Ah1P240S) |
| AC Side Parameter | |
| Rated AC Power | 100KW |
| Max. AC Power | 120KW |
| Allowable Grid Voltage | 400Vac(-20%～+15%) |
| Allowable Grid Frequency | 50/60Hz |
| Power Factor | 0.99cap-0.99ind |
| Rated Input Current | 145A |
| Access Mode | 3P4W+PE |
| DC Side Parameter | |
| Max. DC Power | 100KW |
| Rated Voltage | 768Vdc |
| DC Voltage Range | 648-876Vdc |
| Battery pack configuration | 1P48/43KWH |

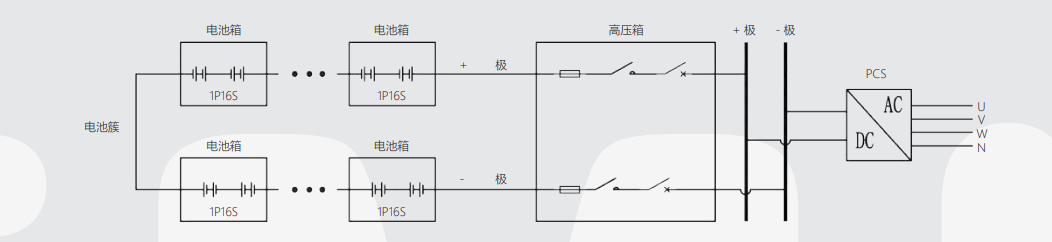

| Battery system configuration | 1P240S |
| Capacity | 215KWH |
| Max. DC | 192A |
| System Parameter | |

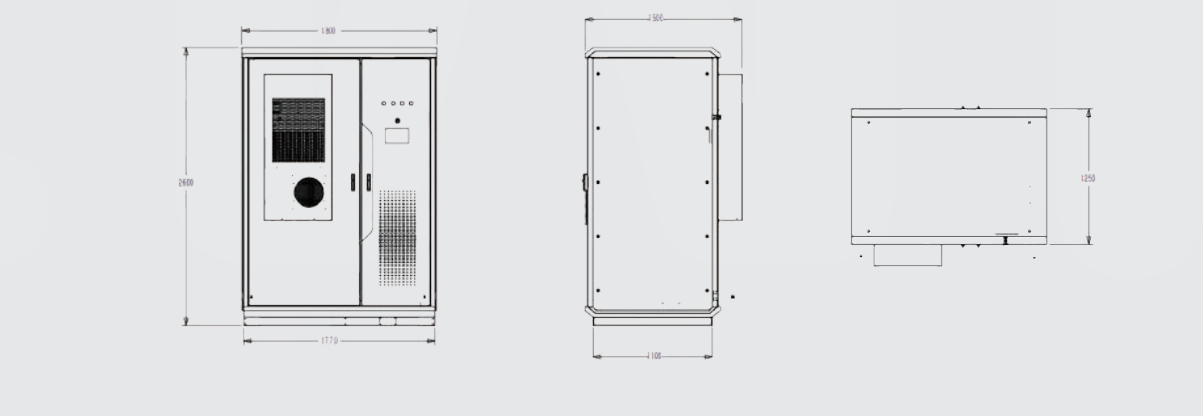

| Dimension (W*H*D) | 1800*2500*1250mm |
| Weight | 2900KGS |
| Noise | <75dB |
| Protection Level | IP54 |
| Allowable Ambient Temperature | -20~50℃(above 45℃ derating) |
| Cooling Mode | Forced air cooling |
| Ambient Humidity | 0-95％(No condensation) |
| Operating Altitude | 2000m (More than 2000m derating) |
| Fire Protection Mode | Aerosol |
| Communication Interfaces | RS485, Ethernet, CAN |
| Communication Protocol | Modbus TCP/RTU |
Industrial & Commercial ESS -- 100KW/215KWH Air-Cooled
1.High efficiency conversion
Intelligent temperature control system to improve system efficiency and battery cycle life.
Bi-directional current converter, charging with constant current, constant voltage and constant power modes.
Reduce the loss of parallel mismatch between battery clusters.
Avoiding the system risk caused by inter-cluster loop current
2.High-precision Intelligent
Satisfy smart grid design specifications
Electrical isolation, off-grid function, strong grid adaptability
Cloud technology support, remote maintenance and monitoring
Built-in management system, multiple operation modes, and support for independent operation of microgrids to improve profitability
3.Flexibility and simplicity
AC side PCS adopts modular design, easy to install and maintain.
Support multiple PCS AC parallel operation, the configuration scheme is more flexible.
Integrated transport, simple on-site construction
Data interaction visualisation
Application Scenarios
District power capacity expansion, Industrial and Commercial Enterprises & Data Centers &Industrial Park Energy Storage, Commercial Buildings, Large Industries, Mobile Energy Storage
Product Features
215KWh lithium iron phosphate battery energy storage system, two-level battery management system, comprehensive digital LCD.
100KW energy storage converter, wide voltage input range, equipped with grid voltage regulation, three-phase imbalance control, harmonic control and other systems.
IP54 protection grade outdoor cabinet, including water cooling unit, lighting, power distribution, fire protection and other accessories.
The energy management system includes a local dispatch management machine on the cloud platform to realize data acquisition of PCS and other related devices.
_03.png "SS12XXXX-768V280A(280Ah1P240S)_03.png")

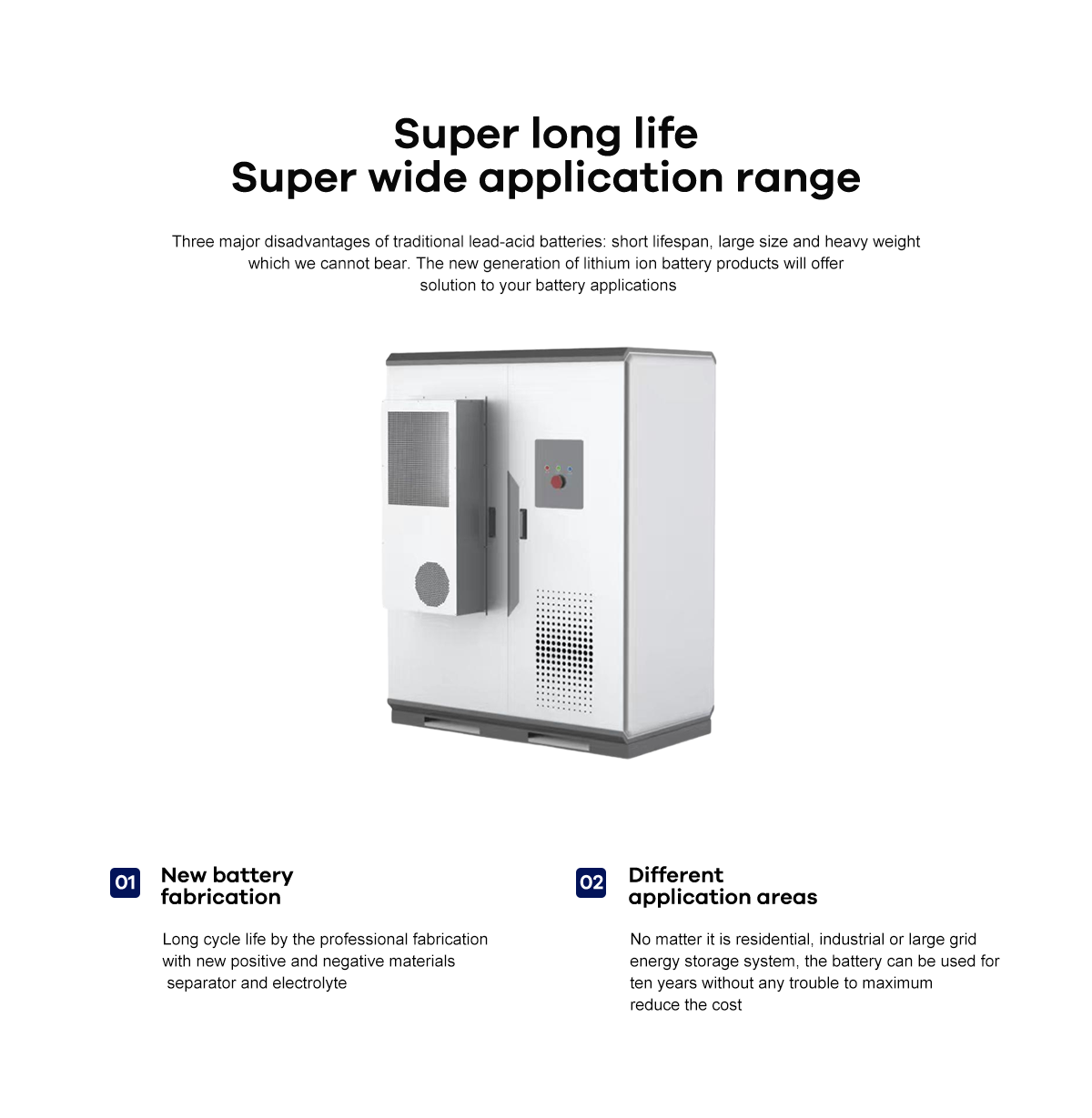

_04.png "SS12XXXX-768V280A(280Ah1P240S)_04.png")
_05.png "SS12XXXX-768V280A(280Ah1P240S)_05.png")
_06.png "SS12XXXX-768V280A(280Ah1P240S)_06.png")
_07.png "SS12XXXX-768V280A(280Ah1P240S)_07.png")
_08.png "SS12XXXX-768V280A(280Ah1P240S)_08.png")
_11.png "SS12XXXX-768V280A(280Ah1P240S)_11.png")
_12.png "SS12XXXX-768V280A(280Ah1P240S)_12.png")
_13.png "SS12XXXX-768V280A(280Ah1P240S)_13.png")
