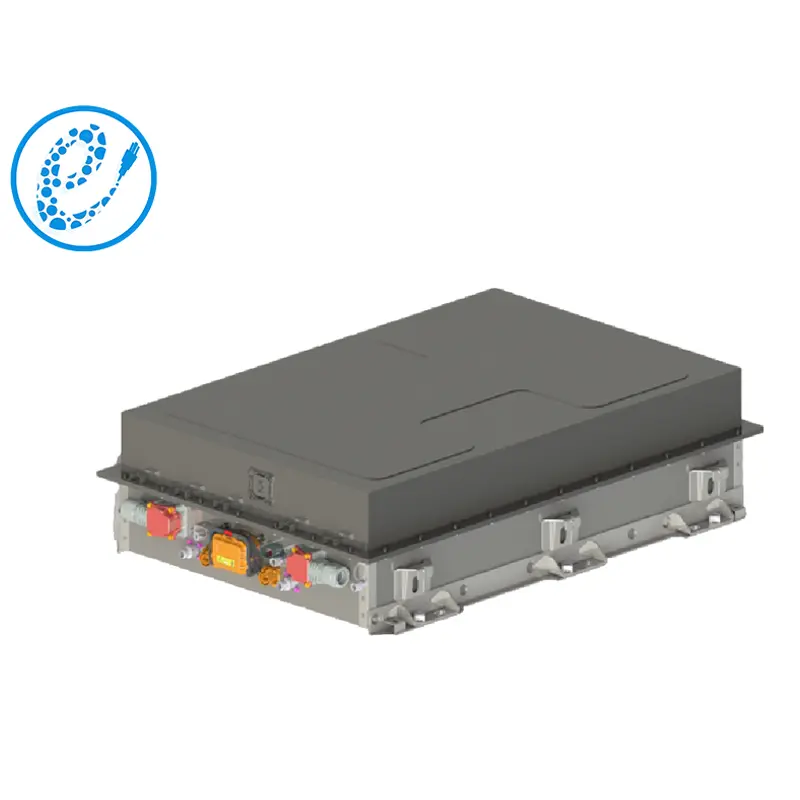

PS050605-183.54V125A (125AH1P57S) is a 1-parallel 57-series lithium battery pack with reliable and vibration-resistant construction. The process is controllable, no over-welding to ensure no damage to the core.
PS050605-183.54V125A (125AH1P57S) has a rated energy of 22.94kwh and a rated voltage of 183.54V, which meets a wide range of applications and is ideal for electric vehicles, and renewable energy systems.
| No. | Items | EP-LFP 125Ah STADARD PACK | Note | |
| PS050605-183.54V125A | ||||
| 125AH1P57S | ||||
| 1 | Nominal voltage(V) | 183.54 | ||
| 2 | Operating voltage(V) | min | 142.5 | |
| 3 | max | 208.05 | ||
| 4 | Cell Configuration | 1P57S | ||
| 5 | Nominal energy（KWh ） | 22.94 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 125 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 125 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 125 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 950 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 220 | |||
The battery box is currently equipped with a full range of VDA series batteries, which can be adapted to most commercial vehicle models in the market (bus, heavy truck, mining dump, construction machinery, etc.)
