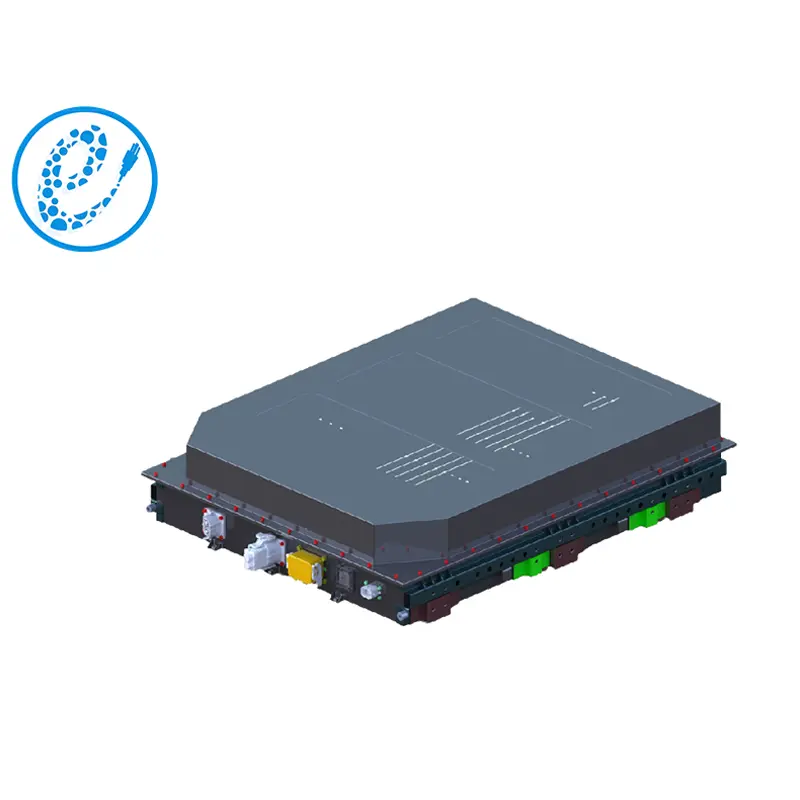

PS050605-312.34V125A (125AH1P97S) 125ah lithium battery pack can provide you with 39.042kwh of energy, making it an ideal power source for a variety of equipment and devices.
The PS050605-312.34V125A (125AH1P97S) battery pack is equipped with a comprehensive range of safety features including overcharge protection, over discharge protection, short circuit protection and temperature control. These features protect the battery and its surroundings from potential risks.
| No. | Items | EP-PS050605-LFP125Ah STADARD PACK | Note | ||||
| 309.12V125AH1P96S | 312.34V125AH1P97S | 315.56V125AH1P98S | 318.78V125AH1P99S | ||||
| 1 | Nominal voltage(V) | 309.12 | 312.34 | 315.56 | 318.78 | ||
| 2 | Operating voltage(V) | min | 240 | 242.5 | 245 | 247.5 | |
| 3 | max | 350.4 | 354.05 | 357.7 | 361.35 | ||
| 4 | Cell Configuration | 1P96S | 1P97S | 1P98S | 1P99S | ||
| 5 | Nominal energy（KWh ） | 38.64 | 39.042 | 39.445 | 39.847 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 125 | 25±2℃ | ||||
| 7 | Maximum continuous charge current（A） | 125 | 25±2℃ | ||||
| 8 | Maximum continuous discharge current（A） | 125 | 25±2℃ | ||||
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | ||||
| 10 | SOC operating range（%） | 20~100 | |||||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | ||||
| 12 | cooling method | Natural cooling | |||||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | ||||
| 14 | Dimension L (mm) | 1143 | |||||
| Dimension B (mm) | 890 | ||||||
| Dimension H (mm) | 210 | ||||||
The battery box is currently assembled with 125Ah cells, which is a battery box specially developed for mini-van and medium-sized van.
.png "ps050605_(1).png")
.png "ps050605_(2).png")
.png "ps050605_(3).png")
.png "ps050605_(4).png")
.png "ps050605_(5).png")
.png "ps050605_(6).png")
.png "ps050605_(7).png")
