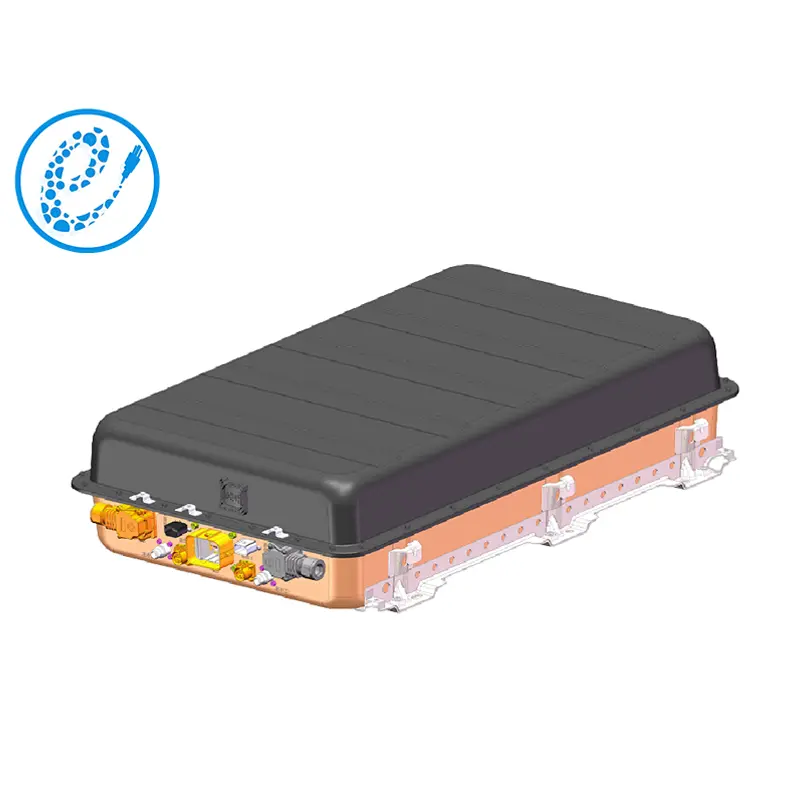

PS050605-222.18V150A (150AH1P69S) 150ah lithium ion battery consists of 69 cells connected in series, with a rated energy of 33.33kwh.Compared with modules, Li-Ion packs optimise energy distribution and improve efficiency and performance. 150 ah lithium ion battery minimises energy loss and extends the overall life of the battery. Its versatility and adaptability make it the first choice for a wide range of commercial and industrial renewable energy needs.
| No. | Items | EP-LFP 150Ah STADARD PACK | Note | |
| PS050605-222.18V150A | ||||
| 150AH1P69S | ||||
| 1 | Nominal voltage(V) | 222.18 | ||
| 2 | Operating voltage(V) | min | 172.5 | |
| 3 | max | 251.82 | ||
| 4 | Cell Configuration | 1P69S | ||
| 5 | Nominal energy（KWh ） | 33.33 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 150 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 150 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 150 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1070 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 250 | |||
The battery box is currently assembled with a full range of VDA series batteries, which can be adapted to most commercial vehicle models on the market (bus, heavy truck, mining dump, construction machinery, etc.) .
