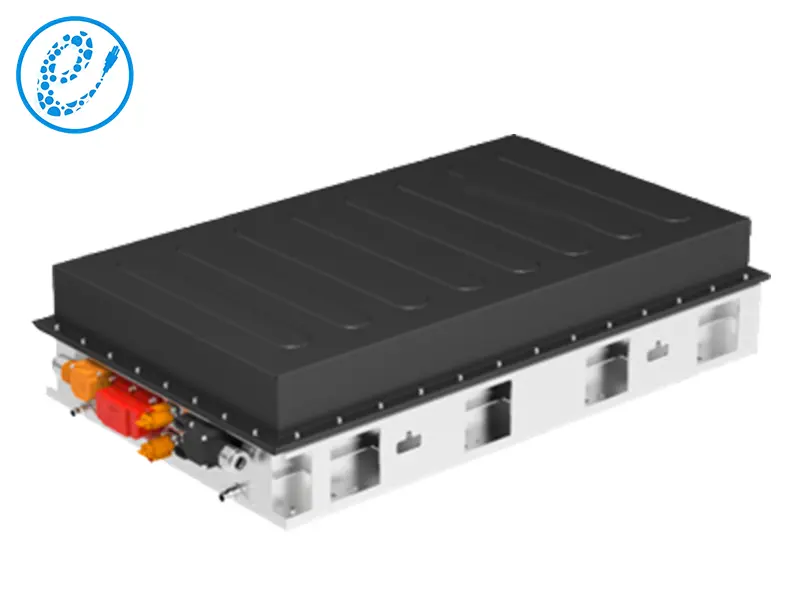

The PS13XX02-154.56V228Ah (228AH1P48S) TC Pack is a liquid-cooled lithium-ion battery designed for EV mining trucks and construction machinery. With 154.56V voltage and 228Ah capacity, it delivers high power and efficiency in demanding conditions. The IP68-rated enclosure ensures water and dust protection, while liquid cooling enhances thermal stability. Ideal for heavy-duty electrification, it improves performance, safety, and sustainability.
_(1).png "ps13xx02-154.56v228a(228ah1p48s)_(1).png")
| Model | MiningTruck / Construction Machinery |
| PS13XX02-154.56V228A(228AH1P48S) | |
| Cell Capacity（Ah） | 228 |
| Cell Dimension（mm） | T54*W174*H207 |
| Configuration | 1P48S |
| Dimension（mm） | L1090*W644*H245 |
| Max. Charge Rate | 1C |
| Energy Density （Wh/kg） | ＞140 |
| Cooling Strategy | Liquid-cooling / Liquid-heating |
| IP Rating | IP68 |
| Operating Temp | -30℃~+55℃ |
üHigh reliability: real-time collection of vibration road spectrum, structural strength of more than 4 times GB/T 31467.3 requirements, to meet the various types of complex operating conditions;
üHigh protection: meets IP68, IP69K, easy to deal with all kinds of water wading and washing scenes;
üHigh weather resistance: full-range thermal management system configured with liquid-cooling/heating management modes, -30~55℃ working temperature range, adaptable to different areas;
üLong cycle life: 1C charging @ 25℃, cycle life ≥ 4000 cycles.
_(2).png "ps13xx02-154.56v228a(228ah1p48s)_(2).png")
_(3).png "ps13xx02-154.56v228a(228ah1p48s)_(3).png")
_(4).png "ps13xx02-154.56v228a(228ah1p48s)_(4).png")
_(5).png "ps13xx02-154.56v228a(228ah1p48s)_(5).png")
_(6).png "ps13xx02-154.56v228a(228ah1p48s)_(6).png")
