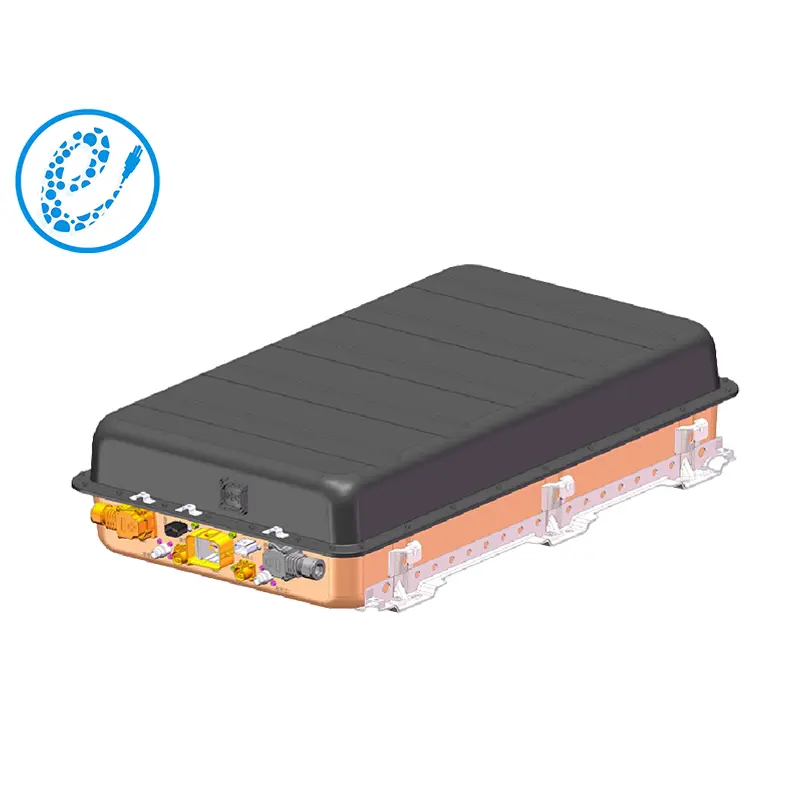

With an energy rating of 28.98kwh, the PS050605-289.8V100A (100AH1P90S) lithium battery pack delivers outstanding performance and powerful, reliable power for a variety of applications. From renewable energy projects to electric vehicle solutions, this 100ah battery for sale delivers consistent performance to your system, ensuring smooth operation even in demanding situations.
| No. | Items | EP-LFP 100Ah STADARD PACK | Note | |
| PS050605-289.8V100A | ||||
| 100AH1P90S | ||||
| 1 | Nominal voltage(V) | 289.8 | ||
| 2 | Operating voltage(V) | min | 225 | |
| 3 | max | 328.5 | ||
| 4 | Cell Configuration | 1P90S | ||
| 5 | Nominal energy（KWh ） | 28.98 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 100 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | ≤100 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | ≤100 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1070 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 250 | |||

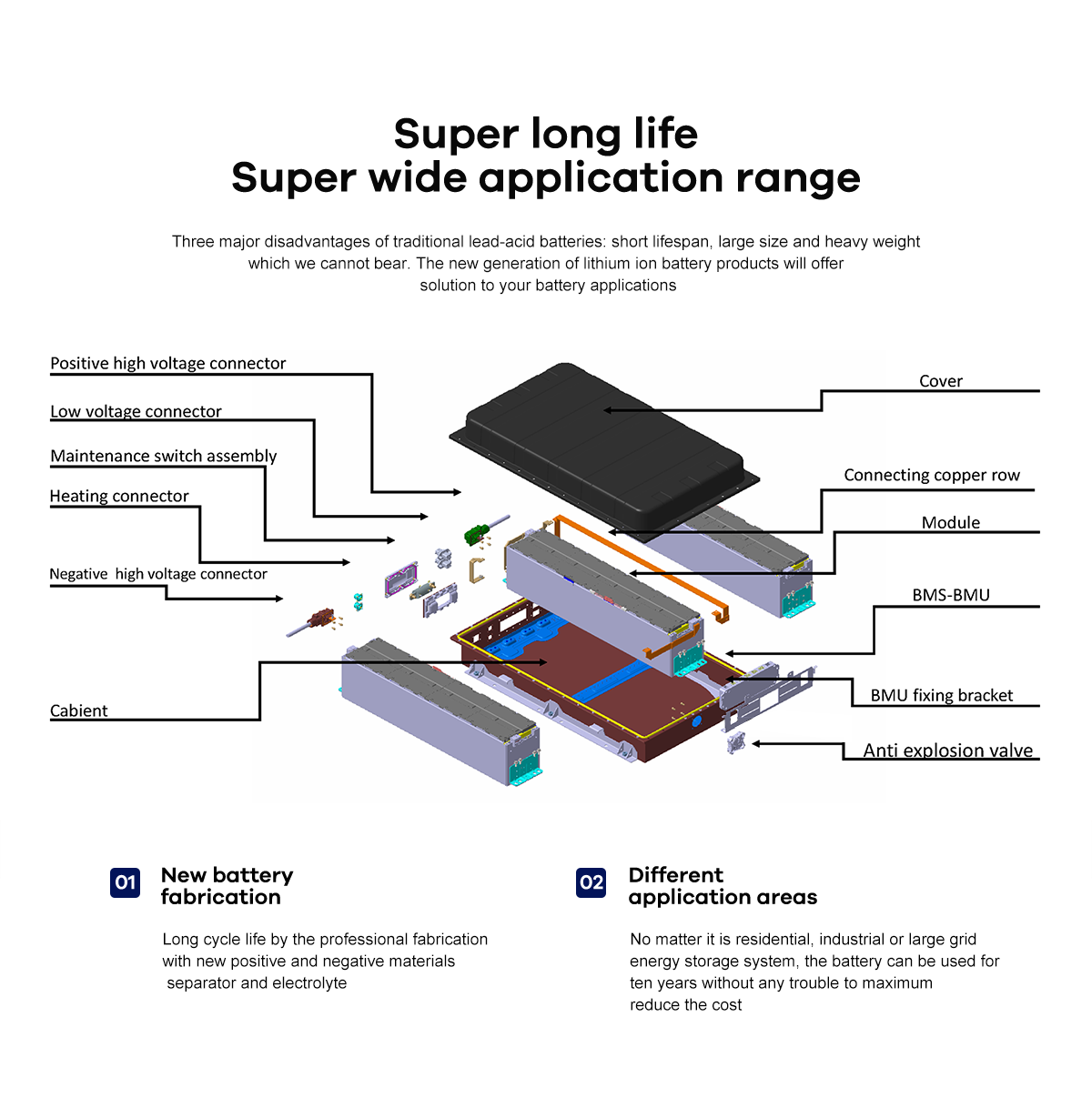

The battery box is currently assembled with a full range of VDA series batteries, which can be adapted to most commercial vehicle models on the market (bus, heavy truck, mining dump, construction machinery, etc.)
