Diving deep into the technical prowess of the PS050605-241.5V100A（100AH1P75S）, you will be intrigued by its impressive voltage of 241.5V, offering substantial power for various applications. Boasting a capacity of 100Ah, this battery guarantees an extended and uninterrupted energy supply, empowering your systems to operate optimally with confidence.
Whether you are engaged in renewable energy projects, electric vehicle technologies, or any other application demanding reliable and robust power sources, the PS050605-241.5V100A（100AH1P75S）battery pack rises to the occasion with unmatched performance.
As you navigate through this rechargeable lithium ion battery pack page, you will uncover in-depth insights, technical specifications, and practical applications that showcase the versatility and adaptability of the PS050605-241.5V100A（100AH1P75S).
| No. | Items | EP-LFP 100Ah STADARD PACK | Note | |
| PS050605-241.5V100A | ||||
| 100AH1P75S | ||||
| 1 | Nominal voltage(V) | 241.5 | ||
| 2 | Operating voltage(V) | min | 187.5 | |
| 3 | max | 273.75 | ||
| 4 | Cell Configuration | 1P75S | ||
| 5 | Nominal energy（KWh ） | 24.15 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 100 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | ≤100 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | ≤100 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 950 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 240 | |||
The battery box is currently equipped with a full range of VDA series batteries, which can be adapted to most commercial vehicle models in the market (bus, heavy truck, mining dump, construction machinery, etc.)

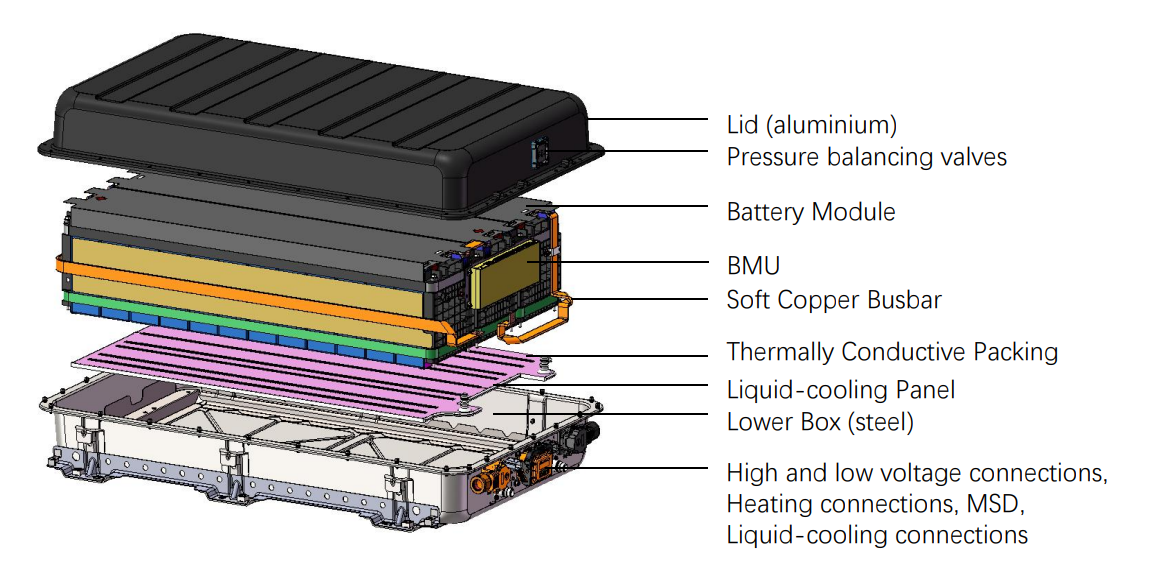

.png "ps050605_(1).png")

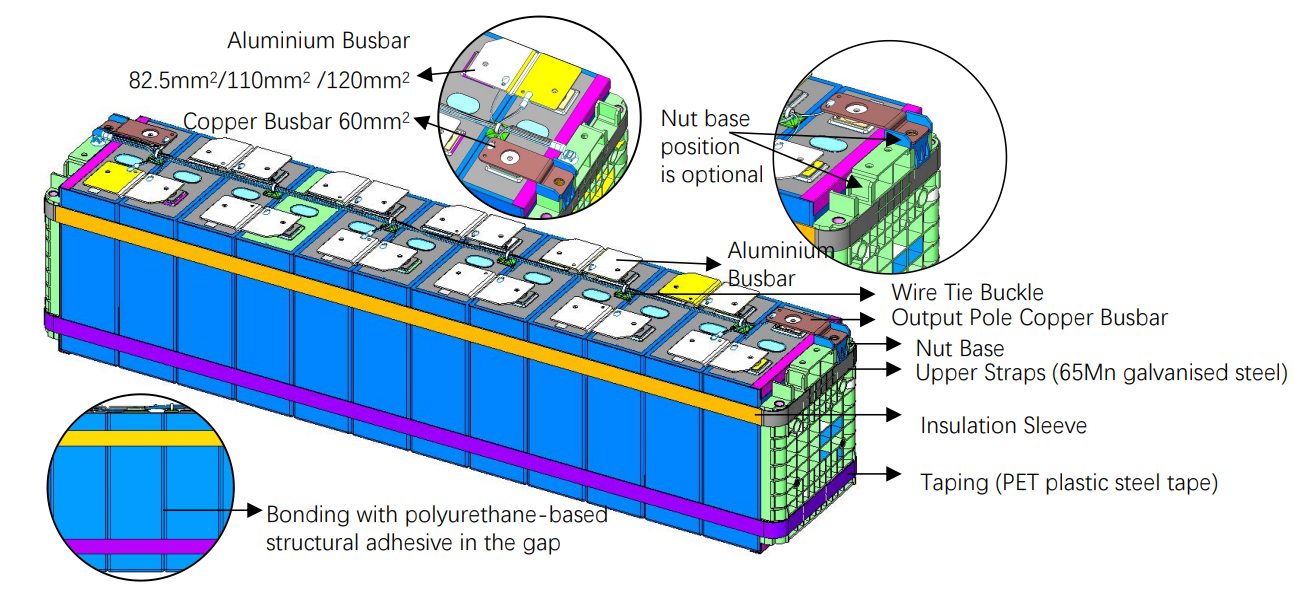

.png "ps050605_(2).png")

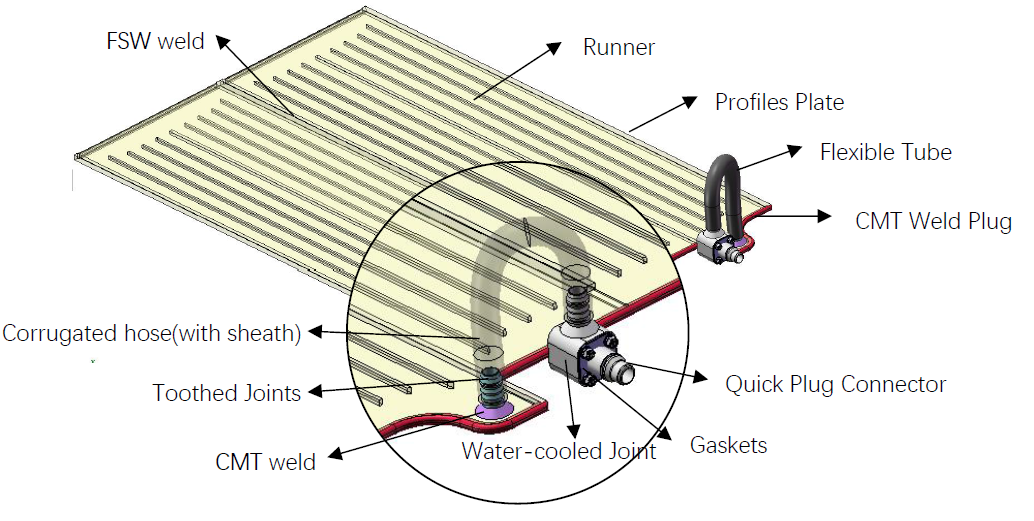

.png "ps050605_(3).png")

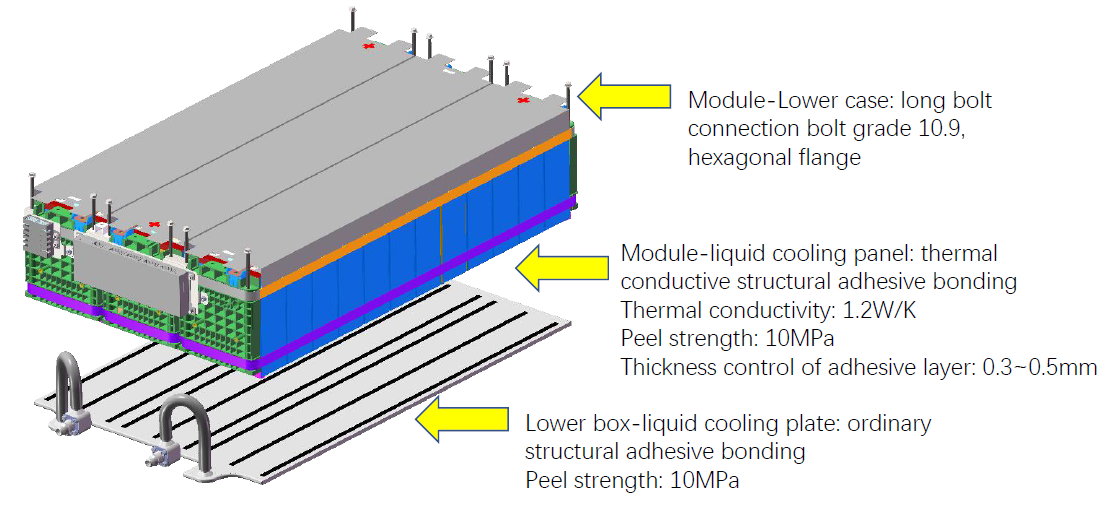

.png "ps050605_(4).png")

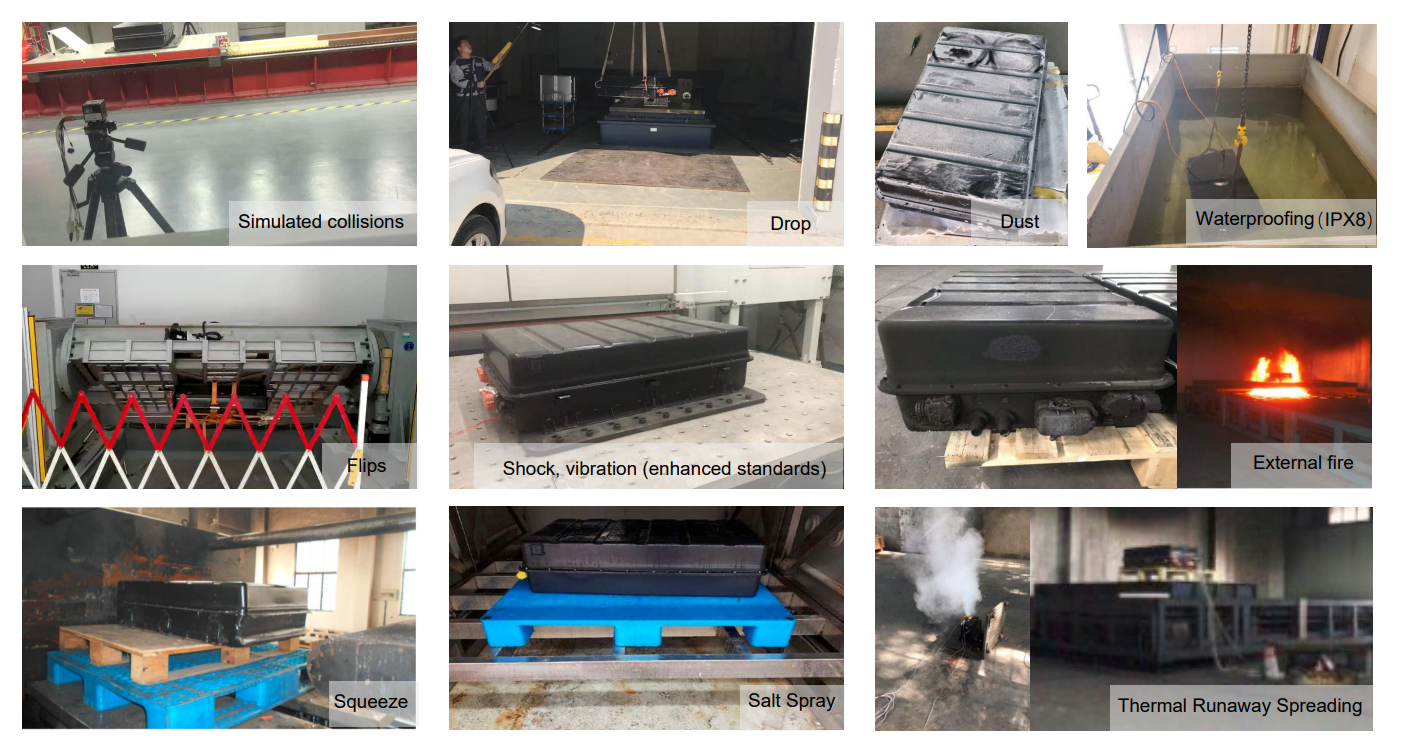

.png "ps050605_(5).png")

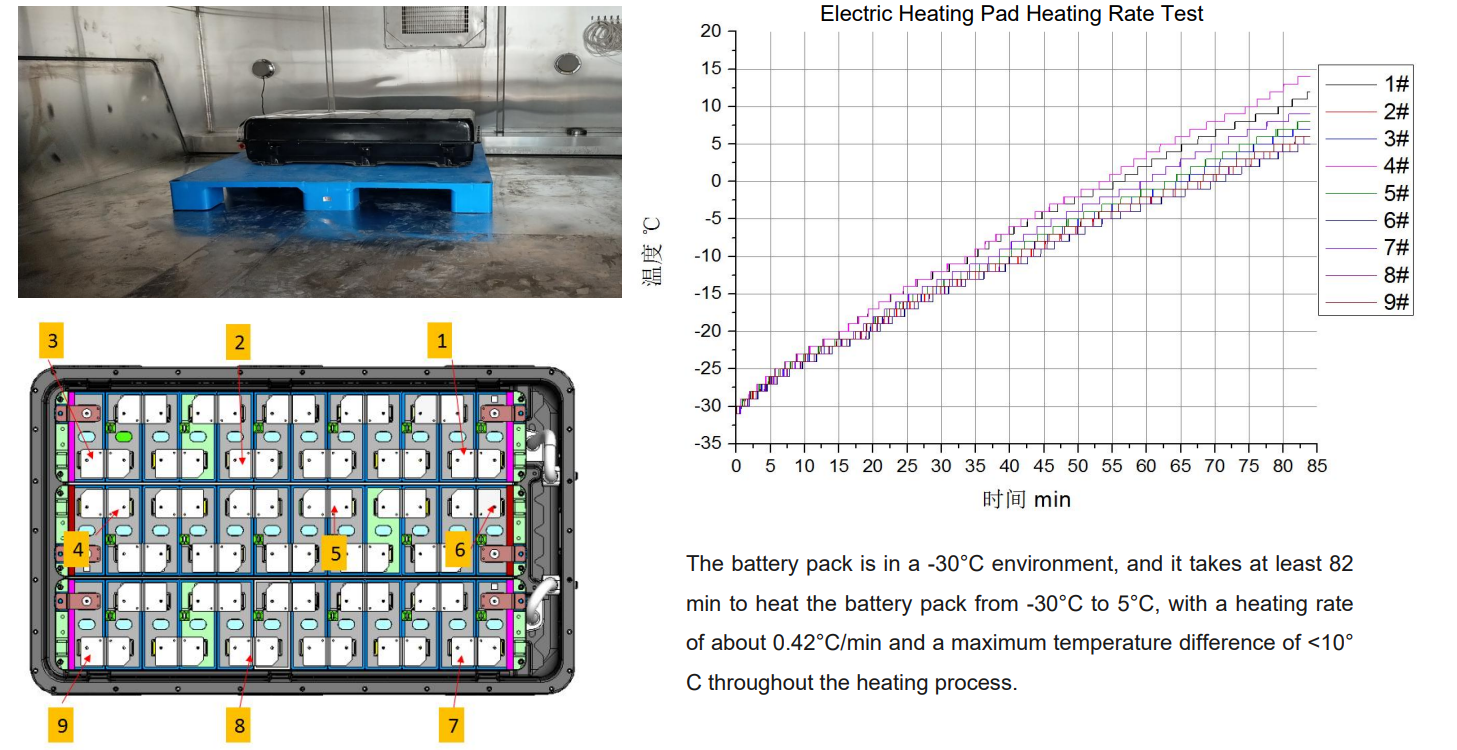

.png "ps050605_(6).png")

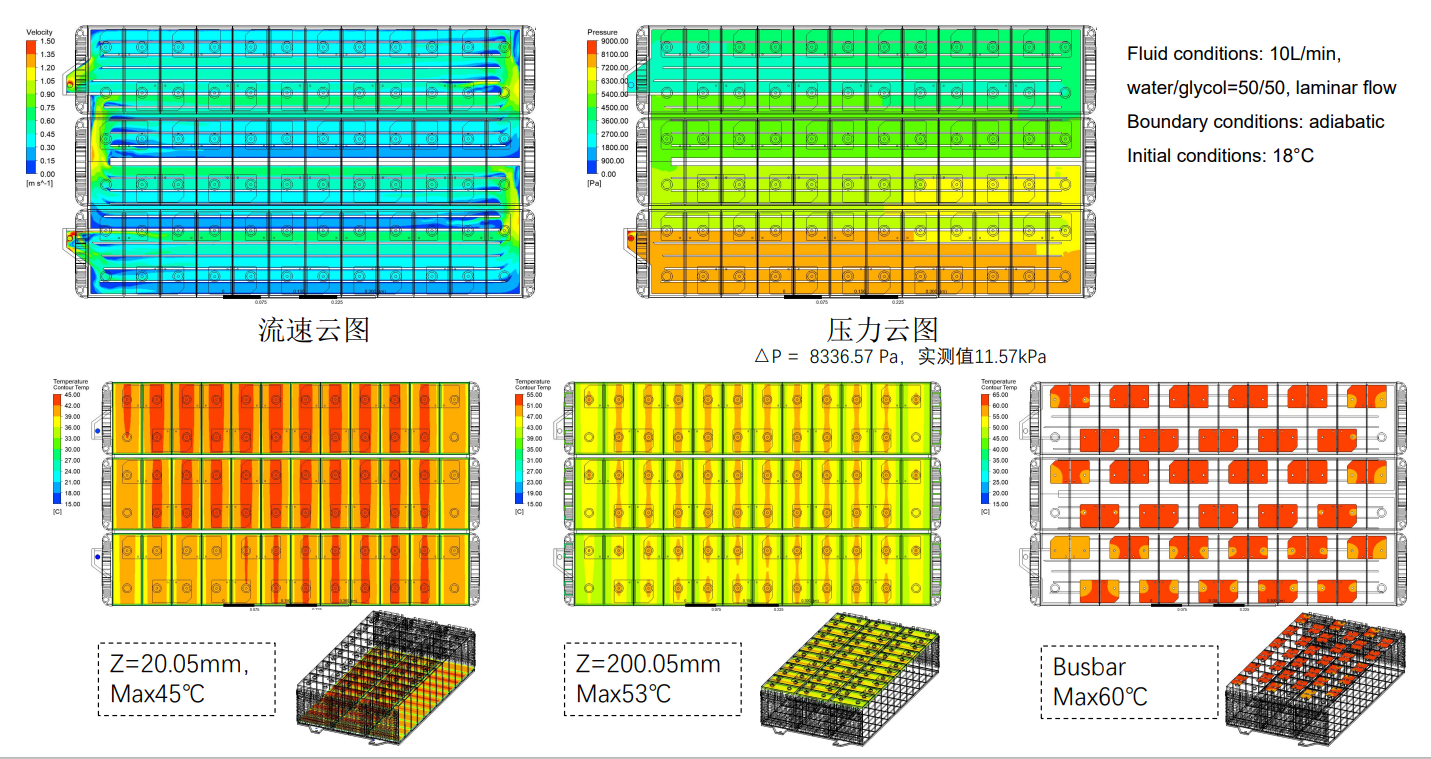

.png "ps050605_(7).png")

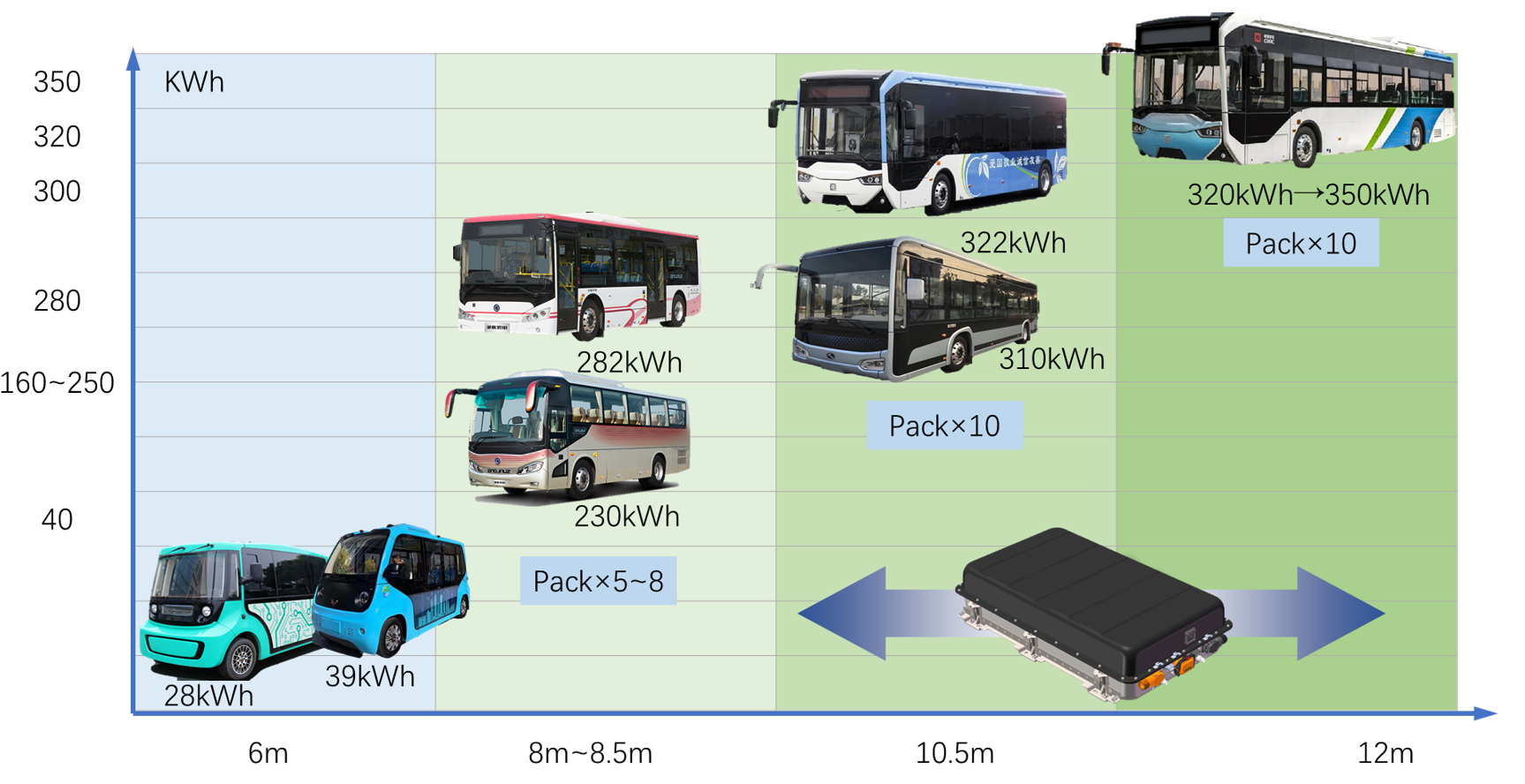

Project Case
