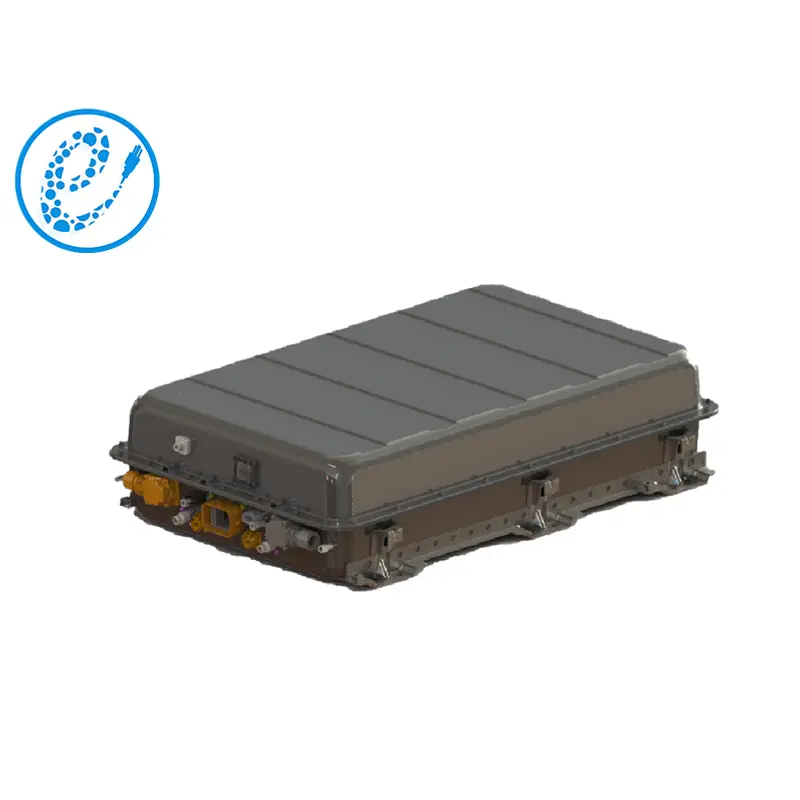

PS050605-202.86V150A (150AH1P63S) lithium battery pack can provide you with 30.43kwh of energy, making it an ideal power source for a variety of equipment and devices.
PS050605-202.86V150A (150AH1P63S) lithium ion battery 150ah battery is equipped with a comprehensive range of safety features including overcharge protection, overdischarge protection, short-circuit protection and temperature control. These features protect the battery and its surroundings from potential risks.
| No. | Items | EP-LFP 150Ah STADARD PACK | Note | |
| PS050605-202.86V150A | ||||
| 150AH1P63S | ||||
| 1 | Nominal voltage(V) | 202.86 | ||
| 2 | Operating voltage(V) | min | 157.5 | |
| 3 | max | 229.95 | ||
| 4 | Cell Configuration | 1P63S | ||
| 5 | Nominal energy（KWh ） | 30.43 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 150 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 150 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 150 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1020 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 250 | |||
The battery box is currently assembled with a full range of VDA series batteries, which can be adapted to most commercial vehicle models on the market (bus, heavy truck, mining dump, construction machinery, etc.)
