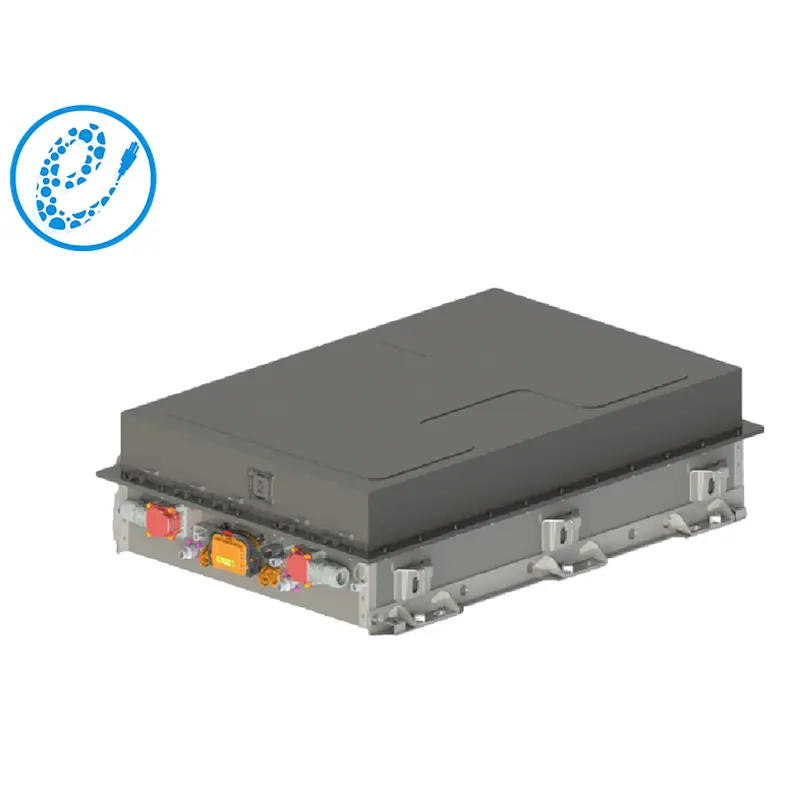

The EcoPower PS050605-124.8V205A (205AH1P39S) is available in a 1P39S configuration consisting of a parallel pack (1P) and 39 series packs (96S). This configuration ensures a harmonious balance of power, safety, and performance, guaranteeing a reliable energy supply. packs are designed without modules, and cell battery packs are assembled individually, reducing assembly difficulties and increasing productivity.
| No. | Items | EP-LFP 205Ah STADARD PACK | Note | |
| PS050605-124.8V205A | ||||
| 205AH1P39S | ||||
| 1 | Nominal voltage(V) | 124.8 | ||
| 2 | Operating voltage(V) | min | 97.5 | |
| 3 | max | 142.35 | ||
| 4 | Cell Configuration | 1P39S | ||
| 5 | Nominal energy（KWh ） | 25.58 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 205 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 205 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 205 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 950 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 250 | |||
The battery box is currently equipped with a full range of VDA series batteries, which can be adapted to most commercial vehicle models in the market (bus, heavy truck, mining dump, construction machinery, etc.)
