PS050605-322V150A (150AH1P100S) lithium battery pack has an energy capacity of up to 48.3kwh and ensures a continuous, powerful energy supply. Whether it's for residential or industrial applications, it will easily meet your energy needs.
Embrace the latest innovations in energy storage with our advanced lithium-ion technology. Experience higher energy density, faster charging and longer battery life with a reduced environmental impact.
| No. | Items | EP-PS050605-LFP150Ah STADARD PACK | Note | ||||
| 322V150AH1P100S | 325.22V150AH1P101S | 328.44V150AH1P102S | 331.66V150AH1P103S | ||||
| 1 | Nominal voltage(V) | 322 | 325.22 | 328.44 | 331.66 | ||
| 2 | Operating voltage(V) | min | 250 | 252.5 | 255 | 257.5 | |
| 3 | max | 365 | 368.65 | 372.3 | 375.95 | ||
| 4 | Cell Configuration | 1P100S | 1P101S | 1P102S | 1P103S | ||
| 5 | Nominal energy（KWh ） | 48.3 | 48.783 | 49.266 | 49.749 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 150 | 25±2℃ | ||||
| 7 | Maximum continuous charge current（A） | 150 | 25±2℃ | ||||
| 8 | Maximum continuous discharge current（A） | 150 | 25±2℃ | ||||
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | ||||
| 10 | SOC operating range（%） | 20~100 | |||||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | ||||
| 12 | cooling method | Natural cooling | |||||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | ||||
| 14 | Dimension L (mm) | 1143 | |||||
| Dimension B (mm) | 890 | ||||||
| Dimension H (mm) | 245 | ||||||

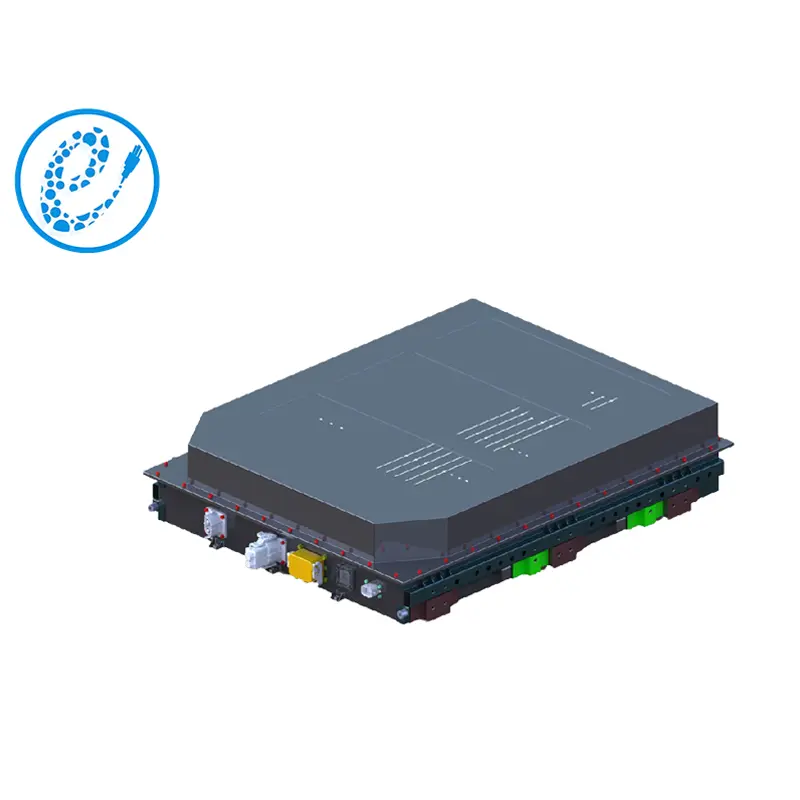

The battery box is currently assembled with 150Ah cells, which is a battery box specially developed for mini-van and medium-sized van.
