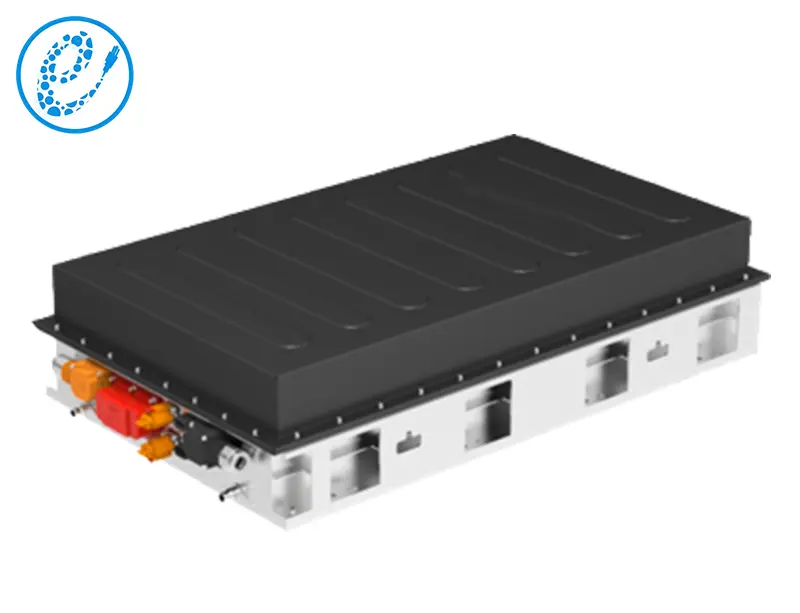

The PS13XX02-115.92V302Ah (302AH1P36S) TC Pack is a high-capacity lithium-ion battery for EV mining trucks and construction machinery. With 115.92V voltage and 302Ah capacity, it provides reliable power and efficiency. Its liquid cooling system ensures optimal thermal performance, while the IP68-rated design offers protection against water and dust. Ideal for heavy-duty applications, it enhances durability, safety, and sustainability.
_(1).png "ps13xx02_115.92v302a(302ah1p36s)_(1).png")
| Model | MiningTruck / Construction Machinery |
| PS13XX02-115.92V302A(302AH1P36S) | |
| Cell Capacity（Ah） | 302 |
| Cell Dimension（mm） | T72*W174*H207 |
| Configuration | 1P36S |
| Dimension（mm） | |
| Max. Charge Rate | 0.8C |
| Energy Density （Wh/kg） | ＞140 |
| Cooling Strategy | Liquid-cooling / Liquid-heating |
| IP Rating | IP68 |
| Operating Temp | -30℃~+55℃ |
üHigh reliability: real-time collection of vibration road spectrum, structural strength of more than 4 times GB/T 31467.3 requirements, to meet the various types of complex operating conditions;
üHigh protection: meets IP68, IP69K, easy to deal with all kinds of water wading and washing scenes;
üHigh weather resistance: full-range thermal management system configured with liquid-cooling/heating management modes, -30~55℃ working temperature range, adaptable to different areas;
üLong cycle life: 1C charging @ 25℃, cycle life ≥ 4000 cycles.
_(2).png "ps13xx02_115.92v302a(302ah1p36s)_(2).png")
_(3).png "ps13xx02_115.92v302a(302ah1p36s)_(3).png")
_(4).png "ps13xx02_115.92v302a(302ah1p36s)_(4).png")
_(5).png "ps13xx02_115.92v302a(302ah1p36s)_(5).png")
_(6).png "ps13xx02_115.92v302a(302ah1p36s)_(6).png")
