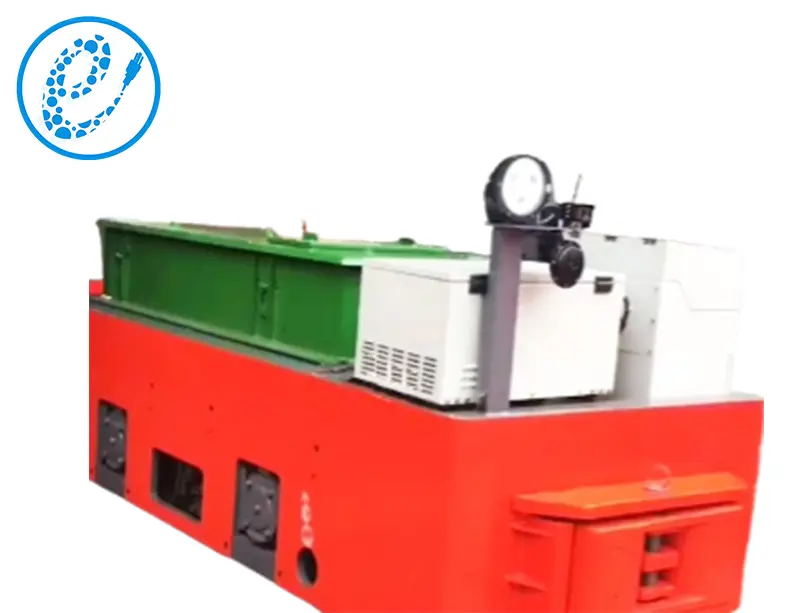

Lithium-ion Traction Locomotive Power Supply - 2.5-5T
| No. | Items | EP-LFP60Ah STANDARD PACK | EP-LFP100Ah STANDARD PACK | EP-LFP100Ah STANDARD PACK | |
| 2.5-5T | 8-12T | 25-65T | |||
| 60AH1P16S | 100AH4P44S | 60AH8P180S | |||
| 1 | Nominal voltage(V) | 51.2 | 140.8 | 576 | |
| 4 | Nominal capacity(Ah) | 60 | 400 | 480 | |
| 5 | Nominal energy（KWh ） | 3.072 | 56.32 | 276.48 | |
| 6 | Cell Configuration | 1P16S | 4P44S | 8P180S | |
| 7 | Standard charge current | 0.3C | 0.3C | 0.5C | |
| 8 | Max Continuous discharge current | 1C | 0.5C | 1C | |
| 9 | Weight | 100kg | 1000kg | 4500kg | |
| 10 | Cycle Life (80%DOD) | 3000 | 4000 | 3000 | |
| 11 | Temp. Condition | Standard | -20~55°C | -20~55°C | -20~55°C |
| 12 | Dimension（mm） | ≤650*300*310 | ≤2300*1050*350 | ≤3350*1450*700 | |
