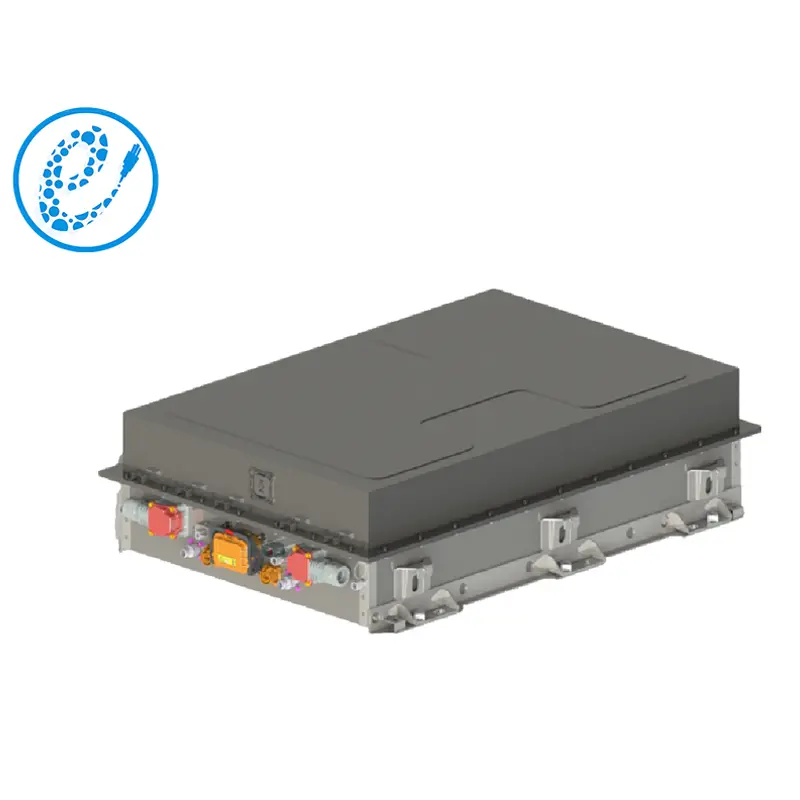

The PS050605-96.6V302A (302AH1P30S) uses a rated capacity of 302Ah, a rated voltage of 96.6V, and a 1P30S configuration. It can meet the different needs of various applications. Whether you are powering an electric vehicle, integrating a renewable energy system, or optimising industrial equipment, this high-capacity battery guarantees excellent performance and a longer service life.
| No. | Items | EP-LFP 302Ah STADARD PACK | Note | |
| PS050605-96.6V302A | ||||
| 302AH1P30S | ||||
| 1 | Nominal voltage(V) | 96.6 | ||
| 2 | Operating voltage(V) | min | 75 | |
| 3 | max | 109.5 | ||
| 4 | Cell Configuration | 1P30S | ||
| 5 | Nominal energy（KWh ） | 29.17 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 302 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 302 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 302 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 950 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 250 | |||
The battery box is currently equipped with a full range of VDA series batteries, which can be adapted to most commercial vehicle models in the market (bus, heavy truck, mining dump, construction machinery, etc.)
.png "ps050605_(1).png")
.png "ps050605_(2).png")
.png "ps050605_(3).png")
.png "ps050605_(4).png")
.png "ps050605_(5).png")
.png "ps050605_(6).png")
.png "ps050605_(7).png")
