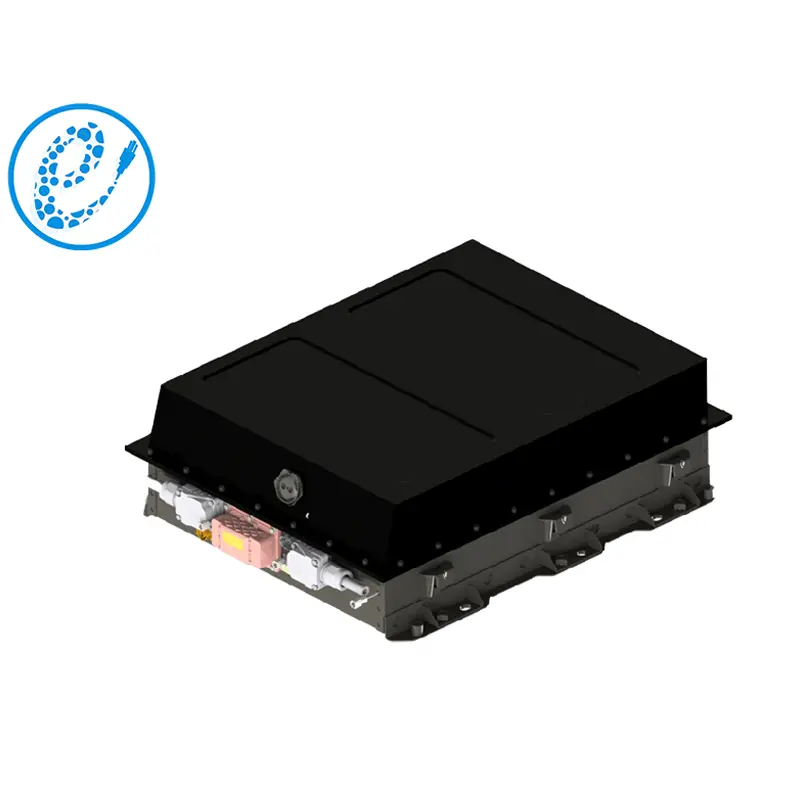

The PS050605-105.6V205A (205AH1P33S) uses a rated voltage of 105.6V, a rated capacity of 205Ah and a 1P33S connection. The internal pack design achieves the necessary heat transfer isolation to avoid thermal runaway from spreading too quickly, which well ensures the safety of the pack for the user.
| No. | Items | EP-LFP 205Ah STADARD PACK | Note | |
| PS050605-105.6V205A | ||||
| 205AH1P33S | ||||
| 1 | Nominal voltage(V) | 105.6 | ||
| 2 | Operating voltage(V) | min | 82.5 | |
| 3 | max | 120.45 | ||
| 4 | Cell Configuration | 1P33S | ||
| 5 | Nominal energy（KWh ） | 21.65 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 205 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 205 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 205 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 805 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 240 | |||
The battery box is currently assembled with a full range of VDA series cells, and is a battery box developed specifically for special models such as sightseeing cars and field cars.
.png "ps050605_(1).png")
.png "ps050605_(2).png")
.png "ps050605_(3).png")
.png "ps050605_(4).png")
.png "ps050605_(5).png")
.png "ps050605_(6).png")
.png "ps050605_(7).png")
