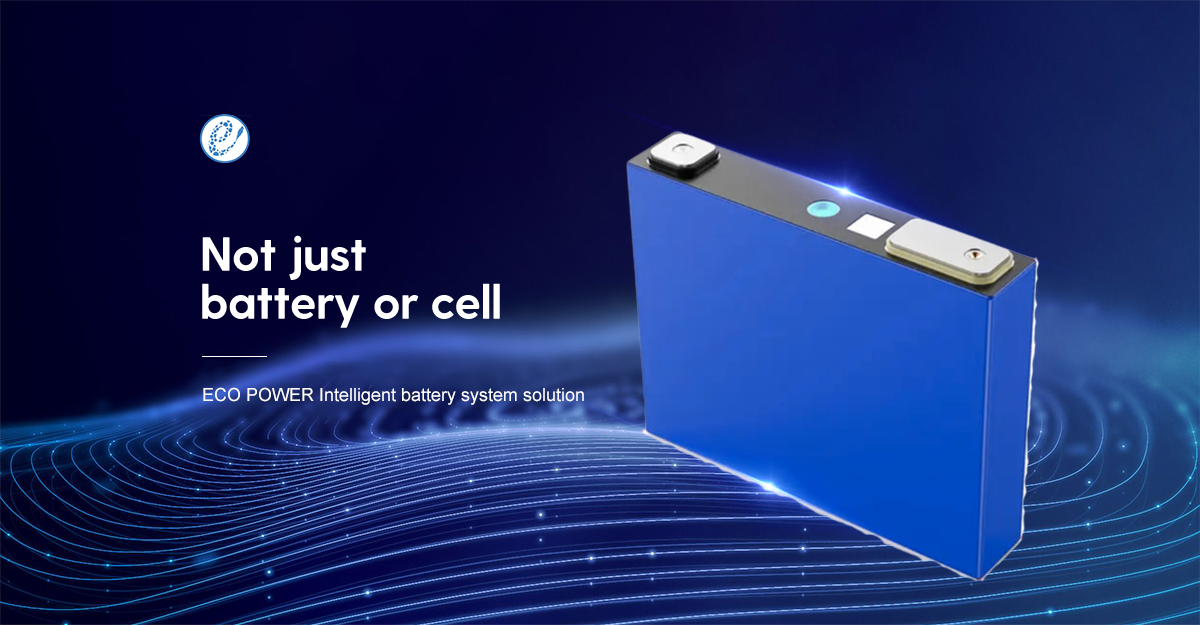

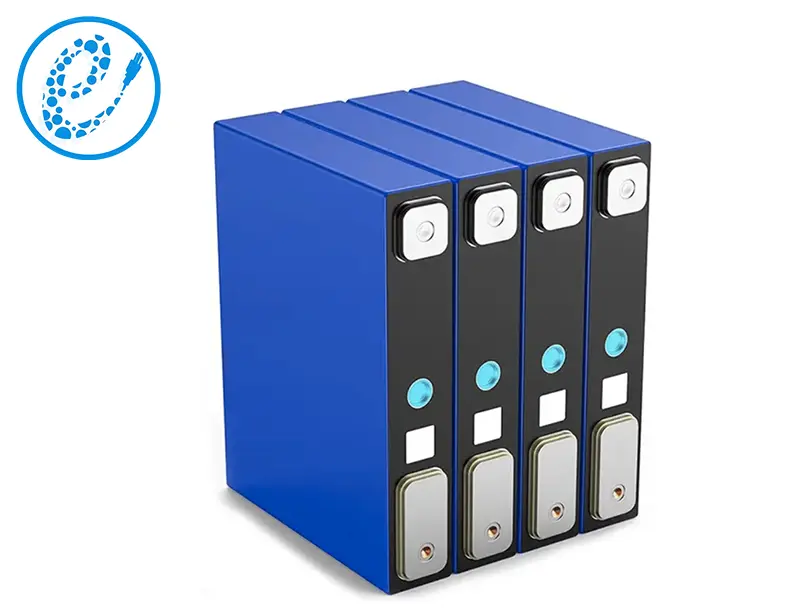

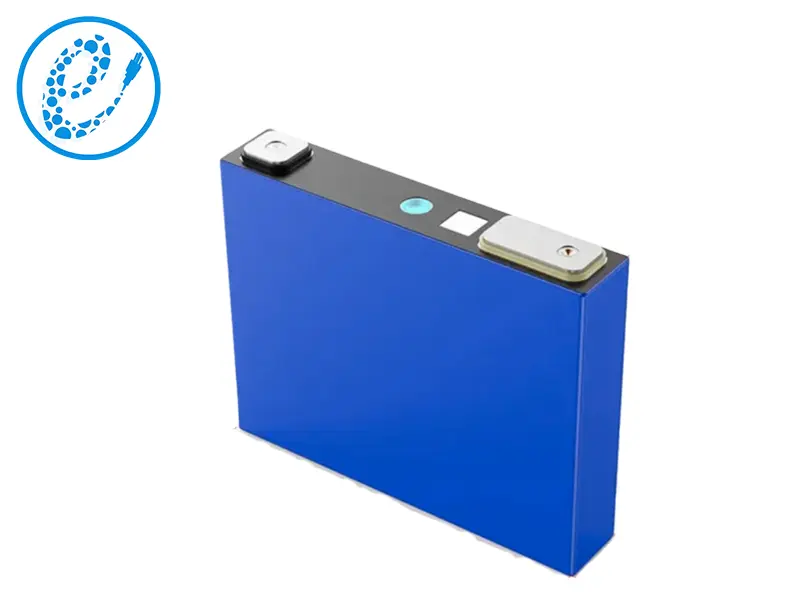

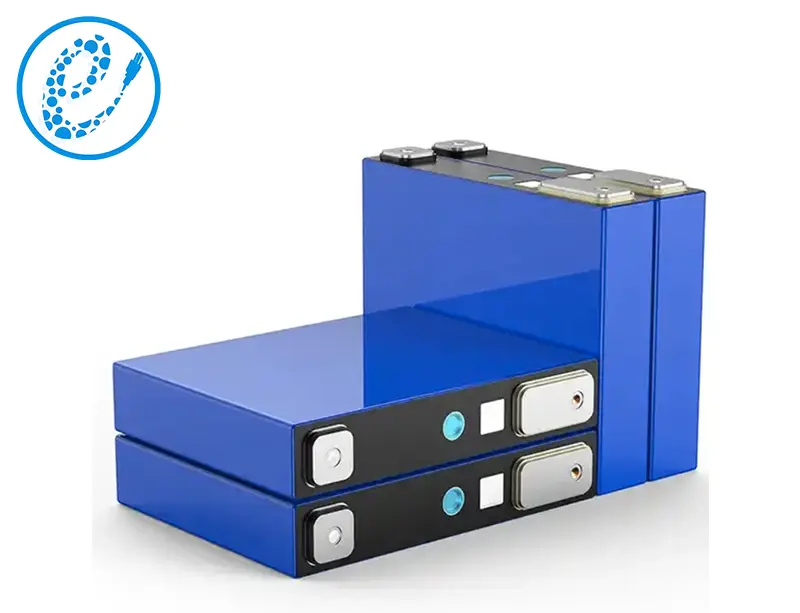

The C18-LFP45W LiFePO4 battery is a powerful and reliable battery. It is lightweight and offers a high energy density, making it perfect for a variety of uses. It is ideal for use in electric vehicles, solar energy systems, and other applications.
| Item | Specification | |

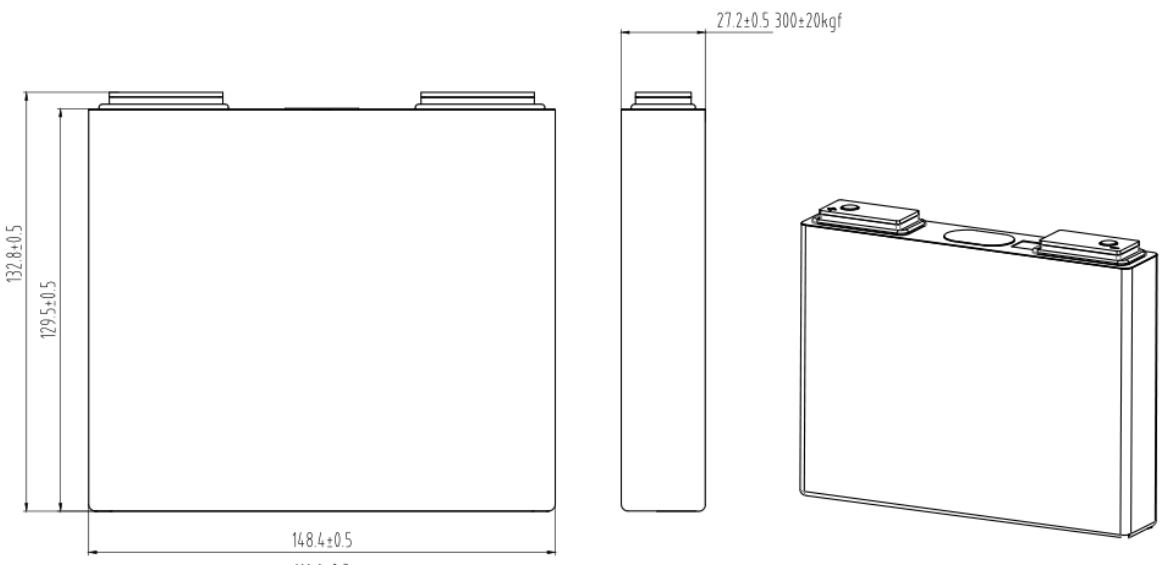

| Dimension | 148.4mm*27.2mm*132.8mm | |
| Weight | 1055±20g | |
| Min. capacity | 45Ah (1C) @ 25℃ | |
| Min. energy | 144Wh (1C) @ 25℃ | |
| Recommended SOC usage window | 10 ~ 90% | |
| Terminal | Welding Terminal | |
| Impedance（1kHz） | ≤0.6mΩ (AC) | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.0V （T≤0℃） 2.5V （T＞-0℃） | |
| Current | Maximum continuous charge | 3C @ 25℃ |
| Maximum continuous discharge | 5C @ 25℃ | |
| Energy density | Gravimetric | 136.49Wh/kg |
| Volumetric | 275.47Wh/L | |
| Temp. Condition | Operation (Charge) | 0~ 60℃ |
| Operation (Discharge) | -20 ~ 60℃ | |
| Storage | -30 ~ 60℃ | |
| Cycle Life | 1C/1C, 100% DOD 25℃ | 4000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
