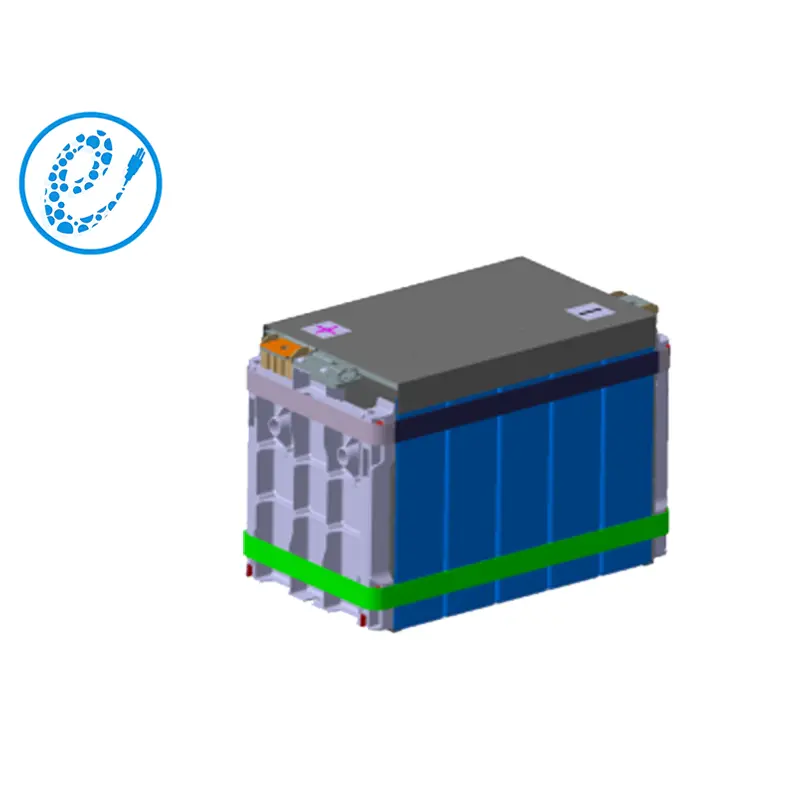

EcoPowerBatteryMS0302-16.1V206A-(206AH1P5S) has a rated voltage of 16.1V and a rated capacity of 206Ah in a 1P5S arrangement.
This product is a versatile and efficient power storage solution. Whether you are a DIY enthusiast, an electric vehicle owner or an off-grid explorer, this battery will meet your unique energy needs.
| Items | MS0302-206A | Note | |
| 16.1V206A-1P5S | |||
| Nominal voltage(V) | 16.1 | ||
| Operating voltage(V) | min | 12.5 | |
| max | 18.25 | ||
| Nominal capacity(Ah) | 206 | 25±2℃ | |
| Nominal energy（KWh） | 3.316 | 25±2℃ | |
| Cell Configuration | 1P5S | ||
| Maximum continuous charge current（A） | 103 | 25±2℃ | |
| Maximum continuous discharge current（A） | 206 | 25±2℃ | |
| Maximum pulse discharge current（≤10s)(A） | 412 | 25±2℃ | |
| SOC operating range（%） | 20~100 | ||
| Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery module shell, at the normal temperature and humidity | |
| Module cooling method | Natural cooling | ||
| Module heating film | NO | ||
| Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| Dimension L （mm） | 314.8 | ||
| Dimension B （mm） | 178 | ||
| Dimension H （mm） | 216.2 | ||
