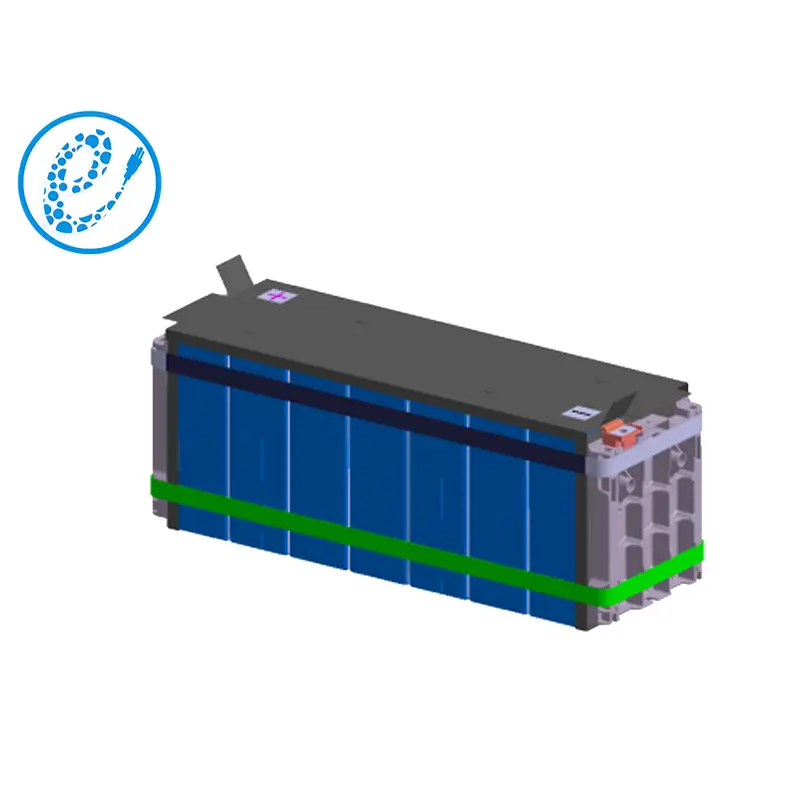

MS0302-22.4V280A-(280AH1P7S) features a 1P7S rated voltage of 22.4V and rated capacity of 280Ah configuration. The lifepo4 280A batteries are carefully designed and precision manufactured for unrivalled performance. Its high energy density and powerful capacity make it ideal for demanding applications, providing a stable and reliable power supply.
| No. | Items | EP-LFP280Ah STANDARD MODULE | Note | |||
| MS0302-22.4V280A | MS0302-25.6V280A | MS0302-32.0V280A | ||||
| 280AH1P7S | 280AH1P8S | 280AH1P10S | ||||
| 1 | Nominal voltage(V) | 22.4 | 25.6 | 32 | ||
| 2 | Operating voltage(V) | min | 17.5 | 20 | 25 | T＞0℃ |
| 3 | max | 25.55 | 29.2 | 36.5 | ||
| 4 | Nominal capacity(Ah) | 280 | 1/3C，100%DOD | |||
| 5 | Nominal energy（KWh ） | 6.272 | 7.168 | 8.96 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P7S | 1P8S | 1P10S | ||
| 7 | Maximum continuous charge current（A） | 140 | ||||
| 8 | Maximum continuous discharge current（A） | 140 | ||||
| 9 | Maximum pulse discharge current（≤180s）（A） | 280 | ||||
| 10 | SOC operating range（%） | 10~90 | ||||
| 11 | Insulation requirements(MΩ) | ≥20 | ||||
| 12 | Module cooling method | Natural cooling | ||||
| 13 | Module heating film | No | Or heating film | |||
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |||
| 15 | Dimension L （mm） | 565.9 | 637.9 | 786.3 | ||
| Dimension B （mm） | 178 | 178 | 178 | |||
| Dimension H （mm） | 214 | 214 | 214 | |||
