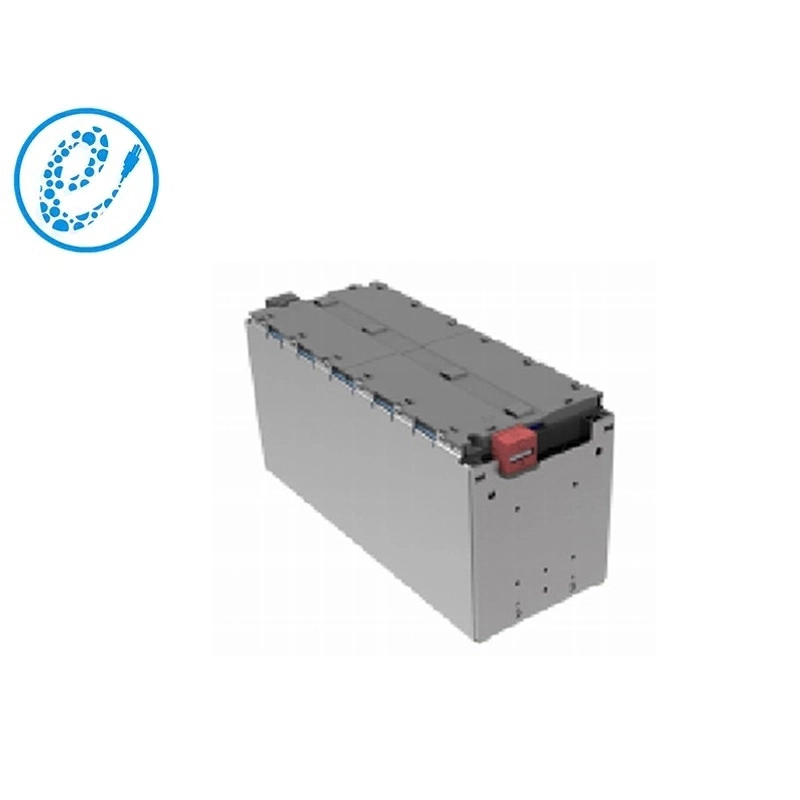

MS0202-25.6V280A-(280AH1P8S) features a 280Ah cell with a rated voltage of 25.6 V. The battery is carefully designed and precision manufactured, and its high energy density and powerful capacity make it ideal for demanding applications that require a stable and reliable power supply, such as electric boats and electric vehicles.
| No. | Items | EP-LFP280Ah STANDARD MODULE | Note | ||||
| MS0202-19.2V280A | MS0202-25.6V280A | MS0202-35.2V280A | MS0202-38.4V280A | ||||
| 280Ah1P6S | 280AH1P8S | 280AH1P11S | 280AH1P12S | ||||
| 1 | Nominal voltage(V) | 19.2 | 25.6 | 35.2 | 38.4 | ||
| 2 | Operating voltage(V) | min | 15 | 20 | 27.5 | 30 | T＞0℃ |
| 3 | max | 21.9 | 29.2 | 40.15 | 43.8 | ||
| 4 | Nominal capacity(Ah) | 280 | 1/3C，100%DOD | ||||
| 5 | Nominal energy（KWh ） | 5.376 | 7.168 | 9.856 | 10.752 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P6S | 1P8S | 1P11S | 1P12S | ||
| 7 | Maximum continuous charge current（A） | 140 | |||||
| 8 | Maximum continuous discharge current（A） | 280 | |||||
| 9 | Maximum pulse discharge current（≤180s）（A） | 560 | |||||
| 10 | SOC operating range（%） | 10~90 | |||||
| 11 | Insulation requirements(MΩ) | ≥20 | |||||
| 12 | Module cooling method | Natural cooling | |||||
| 13 | Module heating method | NO | Or heating film | ||||
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | ||||
| 15 | Dimension L （mm） | 465 | 608 | 824 | 895 | ||
| Dimension B （mm） | 179 | 179 | 179 | 179 | |||
| Dimension H （mm） | 220 | 220 | 220 | 220 | |||
