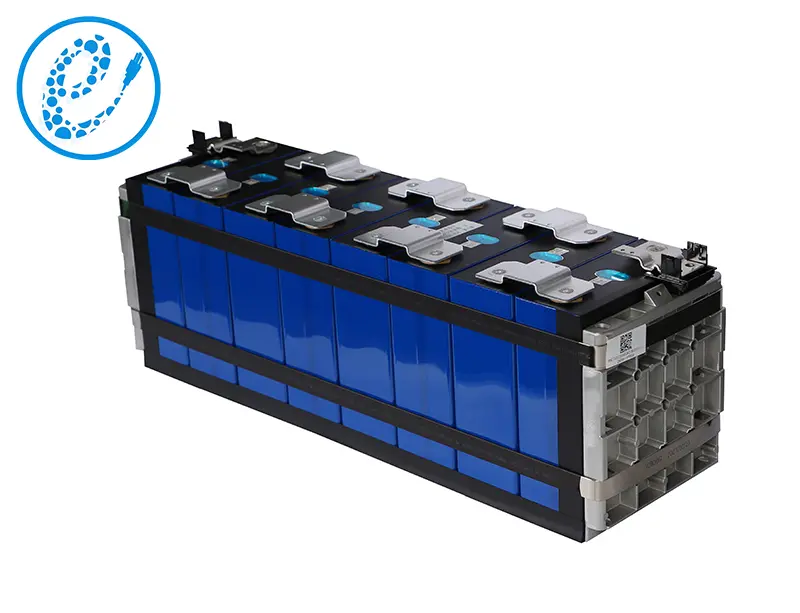

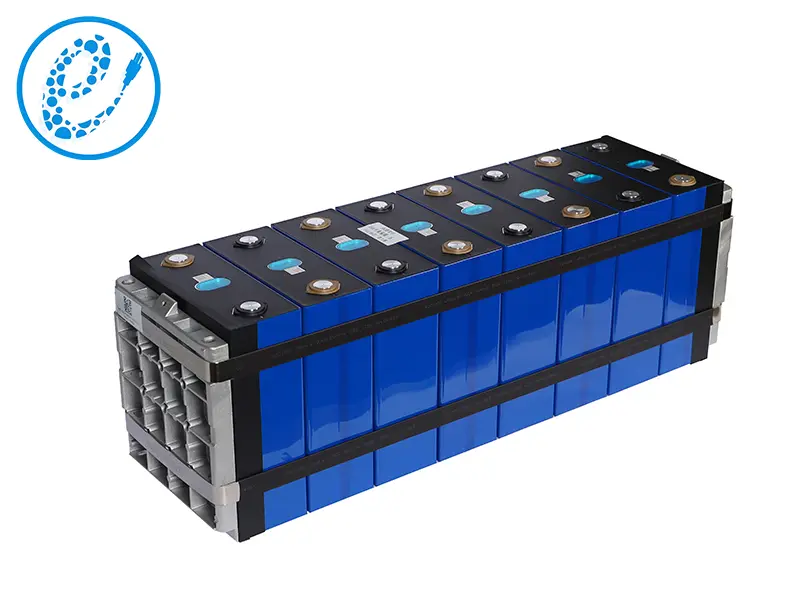

The MS19XX-35.2V100A-(100Ah1P12S) module adopts the 1P12S configuration, with an internal rated voltage of 35.2V and a rated capacity of 100Ah. Its compact and modular internal design maximises space utilisation, making it a high-performance and cost-effective Li-ion battery module.
| No. | Items | EP-LFP100Ah STANDARD MODULE | Note | ||
| MS19XX-35.2V100A | MS19XX-38.4V100A | ||||
| 100Ah1P11S | 100Ah1P12S | ||||
| 1 | Nominal voltage(V) | 35.2 | 38.4 | ||
| 2 | Operating voltage(V) | min | 29.7 | 32.4 | Cell 2.7V~3.65V |
| 3 | max | 40.1 | 43.8 | ||
| 4 | Nominal capacity ( Ah) | 100 | 100 | 25±2℃ | |
| 5 | Nominal energy (KWh) | 3.52 | 3.84 | 25±2℃ | |
| 6 | Maximum continuous charge current (A) | 50 | 25±2℃ | ||
| 7 | Maximum continuous discharge current (A) | 50 | 25±2℃ | ||
| 8 | Maximum short pulse discharge current (≤10s)(A) | 200 | 25±2℃ | ||
| 9 | SOC operating range (%) | 20~100 | |||
| 10 | Insulation requirements (MΩ) | ≥20 | 500V DC，High voltage output to battery module shell, at the normal temperature and humidity | ||
| 11 | Module cooling method | Natural cooling | |||
| 12 | Module heating method | No | |||
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | ||
| 14 | Module self-discharge | ≤3% | 25±2℃,50%SOC | ||
| 15 | Dimension L (mm) | 600 | 650 | ||
| Dimension W (mm) | 161 | 161 | |||
| Dimension H (mm) | 129 | 129 | |||
Core Innovation
*Energy efficiency ≥ 94%@0.5P room temperature
*Flexible module process, easy maintenance
*Compact design, light weight
*Small internal resistance, stable discharge
